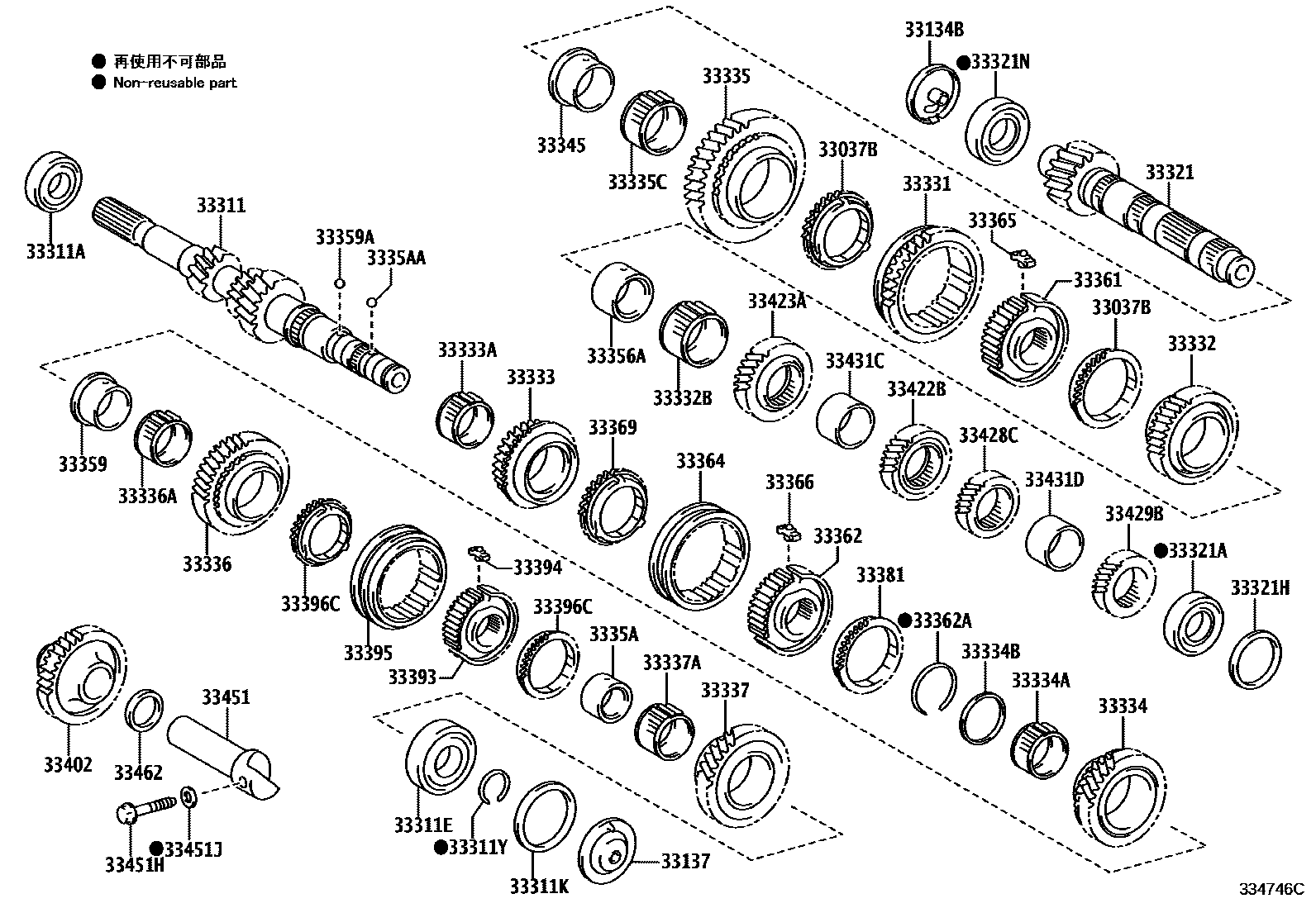

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
*206
33134BCOVER, OUTPUT SHAFT(MTM)
*201
33137COVER, INPUT SHAFT(MTM)
*201
33311SHAFT, INPUT
*201
*201
*201
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
*201
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.30,MARK 08; T=1.30,MARK 08,*201
T=1.35,MARK 09; T=1.35,MARK 09,*201
T=1.40,MARK 10; T=1.40,MARK 10,*201
T=1.45,MARK 11,*206
T=1.50,MARK 12; T=1.50,MARK 12,*201
T=1.55,MARK 13; T=1.55,MARK 13,*201
T=1.60,MARK 14
T=1.65,MARK 15; T=1.65,MARK 15,*201
T=1.70,MARK 16; T=1.70,MARK 16,*201
T=1.75,MARK 17; T=1.75,MARK 17,*201
T=1.80,MARK 18; T=1.80,MARK 18,*201
T=1.85,MARK 19
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.65,MARK A,*206
T=1.70,MARK B; T=1.70,MARK B,*201
T=1.75,MARK C; T=1.75,MARK C,*201
T=1.80,MARK D; T=1.80,MARK D,*201
T=1.85,MARK E,*206
T=1.90,MARK F; T=1.90,MARK F,*201
T=1.95,MARK G; T=1.95,MARK G,*201
T=2.00,MARK H; T=2.00,MARK H,*201
T=2.05,MARK J; T=2.05,MARK J,*201
T=2.10,MARK K; T=2.10,MARK K,*201
T=2.15,MARK L; T=2.15,MARK L,*201
T=2.20,MARK M; T=2.20,MARK M,*201
T=2.25,MARK N; T=2.25,MARK N,*201
T=2.30,MARK P; T=2.30,MARK P,*201
33321SHAFT, OUTPUT
*201
*201
*201
START & STOP SYSTEM PACKAGE
33321ABEARING (FOR OUTPUT SHAFT REAR)
*206
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.750,MARK 50; T=1.750,MARK 50,*201
T=1.755,MARK 51
T=1.800,MARK 52; T=1.800,MARK 52,*201
T=1.825,MARK 53
T=1.850,MARK 54; T=1.850,MARK 54,*201
T=1.875,MARK 55
T=1.900,MARK 56; T=1.900,MARK 56,*201
T=1.925,MARK 57; T=1.925,MARK 57,*201
T=1.950,MARK 58,*206
T=1.975,MARK 59; T=1.975,MARK 59,*201
T=2.000,MARK 60; T=2.000,MARK 60,*201
T=2.025,MARK 61; T=2.025,MARK 61,*201
T=2.050,MARK 62; T=2.050,MARK 62,*201
T=2.075,MARK 63; T=2.075,MARK 63,*201
T=2.100,MARK 64,*206
T=2.125,MARK 65; T=2.125,MARK 65,*201
T=2.150,MARK 66; T=2.150,MARK 66,*201
T=2.175,MARK 67; T=2.175,MARK 67,*201
T=2.200,MARK 68; T=2.200,MARK 68,*201
T=2.225,MARK 69; T=2.225,MARK 69,*201
T=2.250,MARK 70; T=2.250,MARK 70,*201
T=2.275,MARK 71; T=2.275,MARK 71,*201
T=2.300,MARK 72; T=2.300,MARK 72,*201
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76,*206
T=2.425,MARK 77
T=2.450,MARK 78,*206
T=2.475,MARK 79
T=2.500,MARK 80,*206
T=2.525,MARK 81; T=2.525,MARK 81,*201
T=2.550,MARK 82; T=2.550,MARK 82,*201
T=2.575,MARK 83; T=2.575,MARK 83,*201
T=2.600,MARK 84; T=2.600,MARK 84,*201
T=2.625,MARK 85,*206
T=2.650,MARK 86; T=2.650,MARK 86,*201
T=2.675,MARK 87; T=2.675,MARK 87,*201
T=2.700,MARK 88; T=2.700,MARK 88,*201
T=2.725,MARK 89
T=2.750,MARK 90; T=2.750,MARK 90,*201
T=2.775,MARK 91
T=2.800,MARK 92; T=2.800,MARK 92,*201
33321NBEARING (FOR OUTPUT SHAFT FRONT)
*201
*201
33332GEAR, 2ND
*201
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
*201
*201
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
*201
33334GEAR, 4TH
*201
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
*201
33334BSPACER (FOR 4TH GEAR BEARING)
*201
33335GEAR, 1ST
*201
*201
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
*201
33336GEAR, 5TH
*206
*201
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33337GEAR SUB-ASSY, 6TH
*201
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
*201
33345BUSH, 1ST GEAR
*201
33356ARACE, 2ND GEAR BEARING INNER
*201
33359RACE, 5TH GEAR BEARING INNER
*201
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
*206
3335ARACE, 6TH GEAR BEARING, INNER(MTM)
3335AABALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM)
*201
33361HUB, TRANSMISSION CLUTCH, NO.1
*201
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.27,MARK 0; T=2.27,MARK 0,*201
T=2.32,MARK 1; T=2.32,MARK 1,*201
T=2.37,MARK 2; T=2.37,MARK 2,*201
T=2.42,MARK 3,*206
T=2.47,MARK 4
T=2.52,MARK 5; T=2.52,MARK 5,*201
T=2.57,MARK 6; T=2.57,MARK 6,*201
T=2.62,MARK 7; T=2.62,MARK 7,*201
33364SLEEVE, TRANSMISSION HUB, NO.2
*201
33365KEY, SYNCHROMESH SHIFTING, NO.1
*206
33366KEY, SYNCHROMESH SHIFTING, NO.2
*201
33369RING, SYNCHRONIZER, NO.3
*201
33381RING, 2ND SYNCHRONIZER OUTER
33393HUB, TRANSMISSION CLUTCH, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
*206
33395SLEEVE, TRANSMISSION HUB, NO.3
*201
33396CRING, SYNCHRONIZER, NO.5(MTM)
*201
33402GEAR SUB-ASSY, REVERSE IDLER
*201
33422BGEAR, 4TH DRIVEN
*206
*201
33423AGEAR, 3RD DRIVEN
*201
33428CGEAR, 5TH DRIVEN
*201
33429BGEAR, 6TH DRIVEN
*201
*201
33431CSPACER, OUTPUT GEAR
*201
33431DSPACER, OUTPUT GEAR
*201
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
(L)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
55 parts on this diagram · 1 diagram in section
