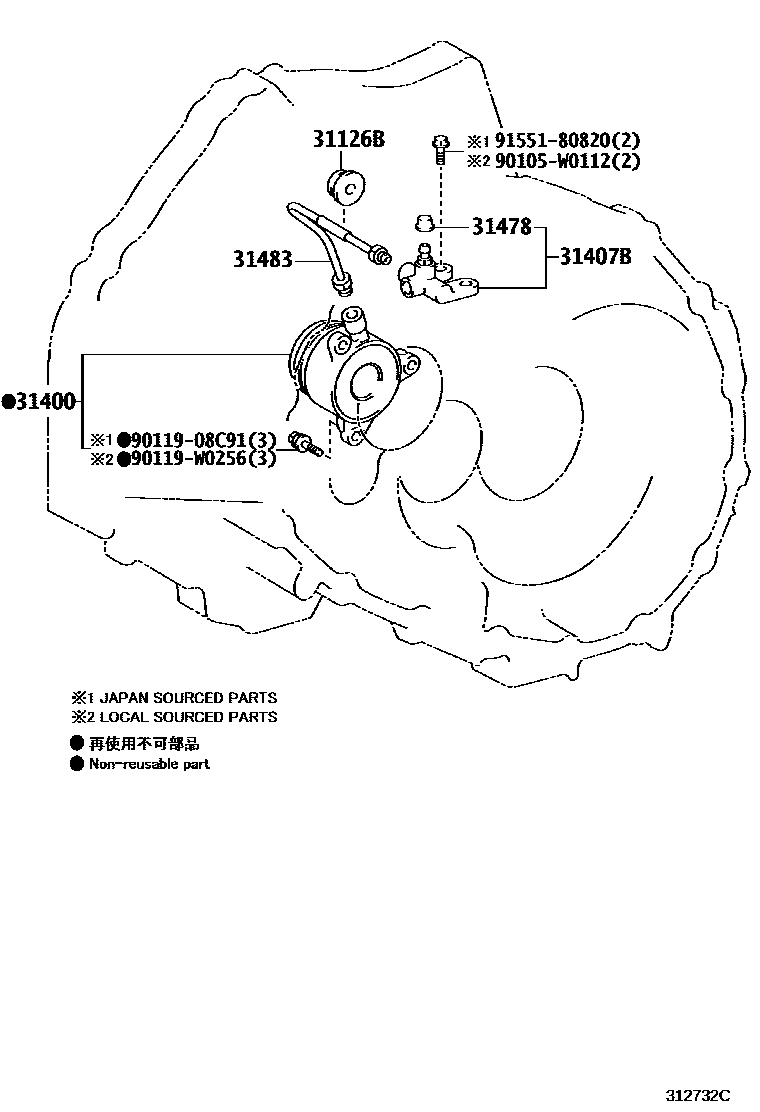

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-05010iNDE180,NRE180,ZRE181..6F201306-201605

main31126-20090iNDE180..6FS201602-201605

*206

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09001iNDE180,NRE180,ZRE181..6F201306-201605

main31400-59005iNDE180..6FS201606-201901

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iNDE180,NRE180,ZRE181..MTM201606-201901

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNDE180,NRE180,ZRE181..6F; NDE180..6FS201306-201605

*201

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-05130iNDE180,NRE180,ZRE181..6F201306-201605

main31482-52090iNDE180..6FS201306-201605

*201

90105W0112

main90105-W0112

9011908C91

main90119-08C91

90119W0256

main90119-W0256

9155180820

main91551-80820

9 parts on this diagram · 1 diagram in section
