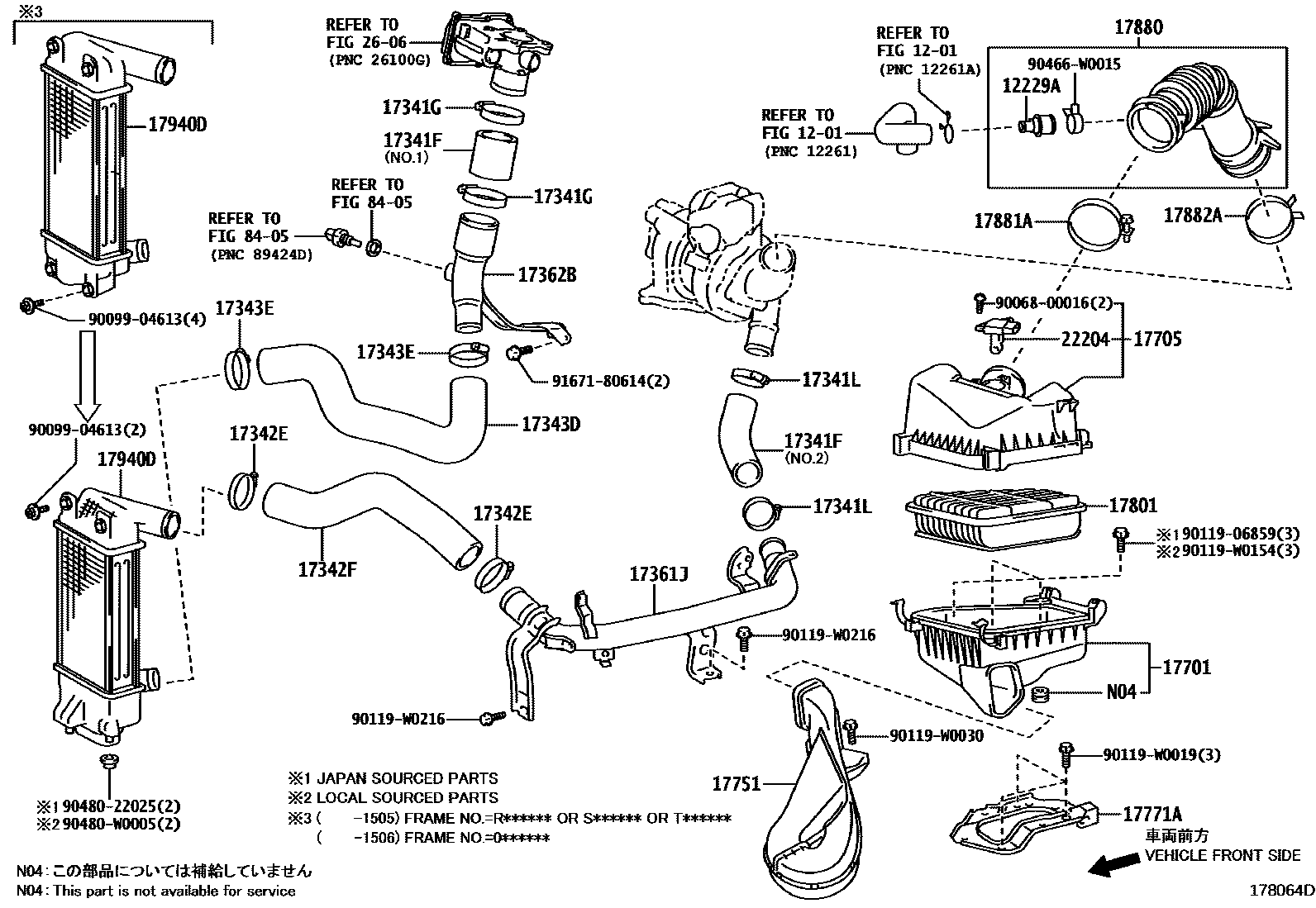

AIR CLEANER
1201
12229APIPE, VENTILATION
TURKEY SPEC
17341FHOSE, AIR, NO.1
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
TURKEY SPEC,NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17341LCLAMP, HOSE
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17342FHOSE, AIR, NO.2(FOR INTERCOOLER)
17343DHOSE, AIR, NO.3
*154
FRAME NO.=0XXXXXX
*154
FRAME NO.=0XXXXXX
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17361JTUBE, AIR, NO.1
TURKEY SPEC
17362BTUBE, AIR, NO.2
17701CASE SUB-ASSY, AIR CLEANER
FRAME NO.=0XXXXXX
MADE IN SOUTH AFRICA
*154
MADE IN EUROPE
17705CAP SUB-ASSY, AIR CLEANER
sub17705-0N071
TURKEY SPEC
MADE IN EUROPE
MADE IN SOUTH AFRICA
*154
FRAME NO.=0XXXXXX
17751INLET, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
MADE IN EUROPE
MARK 17801-0D060
*154
MADE IN SOUTH AFRICA
FRAME NO.=0XXXXXX
17880HOSE ASSY, AIR CLEANER
TURKEY SPEC
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
TURKEY SPEC
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17940DINTERCOOLER ASSY
*154
FRAME NO.=0XXXXXX
*154
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
TURKEY SPEC
MARK 22204-28010
2606
8405
9006800016
main90068-00016
9009904613
main90099-04613
9011906859
main90119-06859
90119W0019
main90119-W0019
90119W0030
main90119-W0030
90119W0154
main90119-W0154
90119W0216
main90119-W0216
90466W0015
main90466-W0015
9048022025
main90480-22025
90480W0005
main90480-W0005
9167180614
main91671-80614
35 parts on this diagram · 4 diagrams in section
