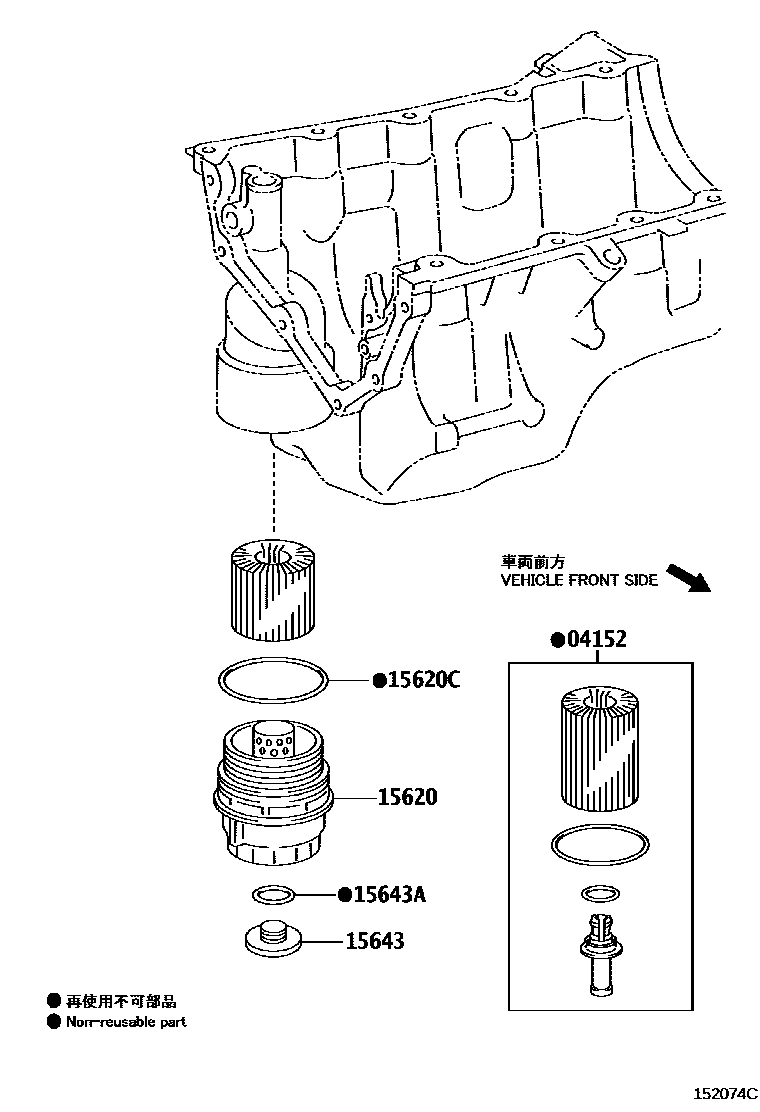

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-31110i1NDTV..NDE180201306-201901

main04152-37010i1ZR#,2ZRFE..ZRE18#201306-201810

ELEMENT TYPE

main04152-40060i1NRFE..NRE180201306-201808

15620CAP ASSY, OIL FILTER

main15620-37010i1ZR#,2ZRFE..ZRE18#201306-201810

ELEMENT TYPE

main15620-40030i1NRFE..NRE180201306-201808

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i1ZR#,2ZRFE..ZRE18#201306-201810

ELEMENT TYPE

main90301-69011i1NRFE..NRE180201606-201808

main90301-79006i1NDTV..NDE180201306-201901

15643PLUG, OIL FILTER DRAIN

main15643-31050i1NRFE..NRE180201306-201808

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i1NRFE..NRE180201306-201808

5 parts on this diagram · 3 diagrams in section
