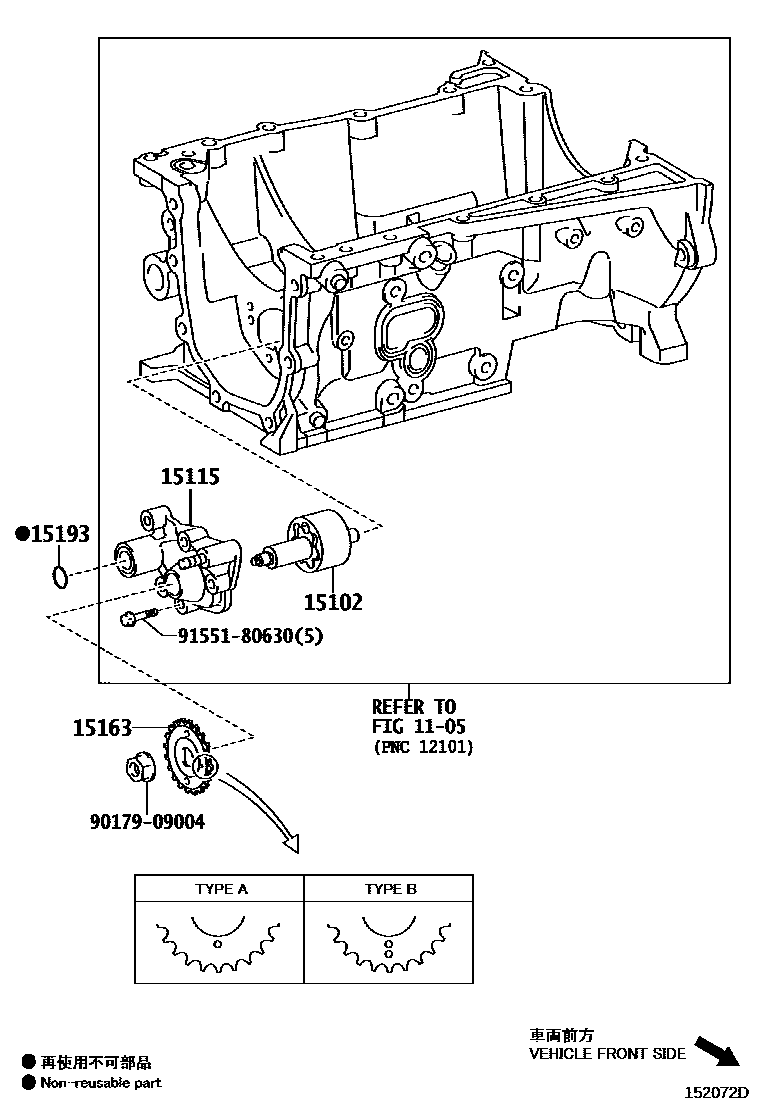

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15102ROTOR SET, OIL PUMP

main15102-0N010i1NDTV..NDE180201306-201605

(L)

main15102-33060i1NDTV..NDE180201306-201605

(J)

15115COVER, OIL PUMP

main15120-0N010i1NDTV..NDE180201306-201605

(L)

main15120-33080i1NDTV..NDE180201306-201605

(J)

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i1ZR#,2ZRFE..ZRE18#201606-201901

(L)

main15163-28010i1ZR#,2ZRFE..ZRE18#201402-201605

(J)

main15163-33010i1NDTV..NDE180..6FS; 1NDTV..NDE180..LHD..6F201606-201711

TURKEY SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

main15163-33020i1NDTV..NDE180..6F201505-201605

TYPE B:REFER ILLUST.

15193GASKET, OIL PUMP

main15193-33020i1NDTV..NDE180201306-201605

9017909004

main90179-09004

9155180630

main91551-80630

7 parts on this diagram · 4 diagrams in section
