CYLINDER HEAD

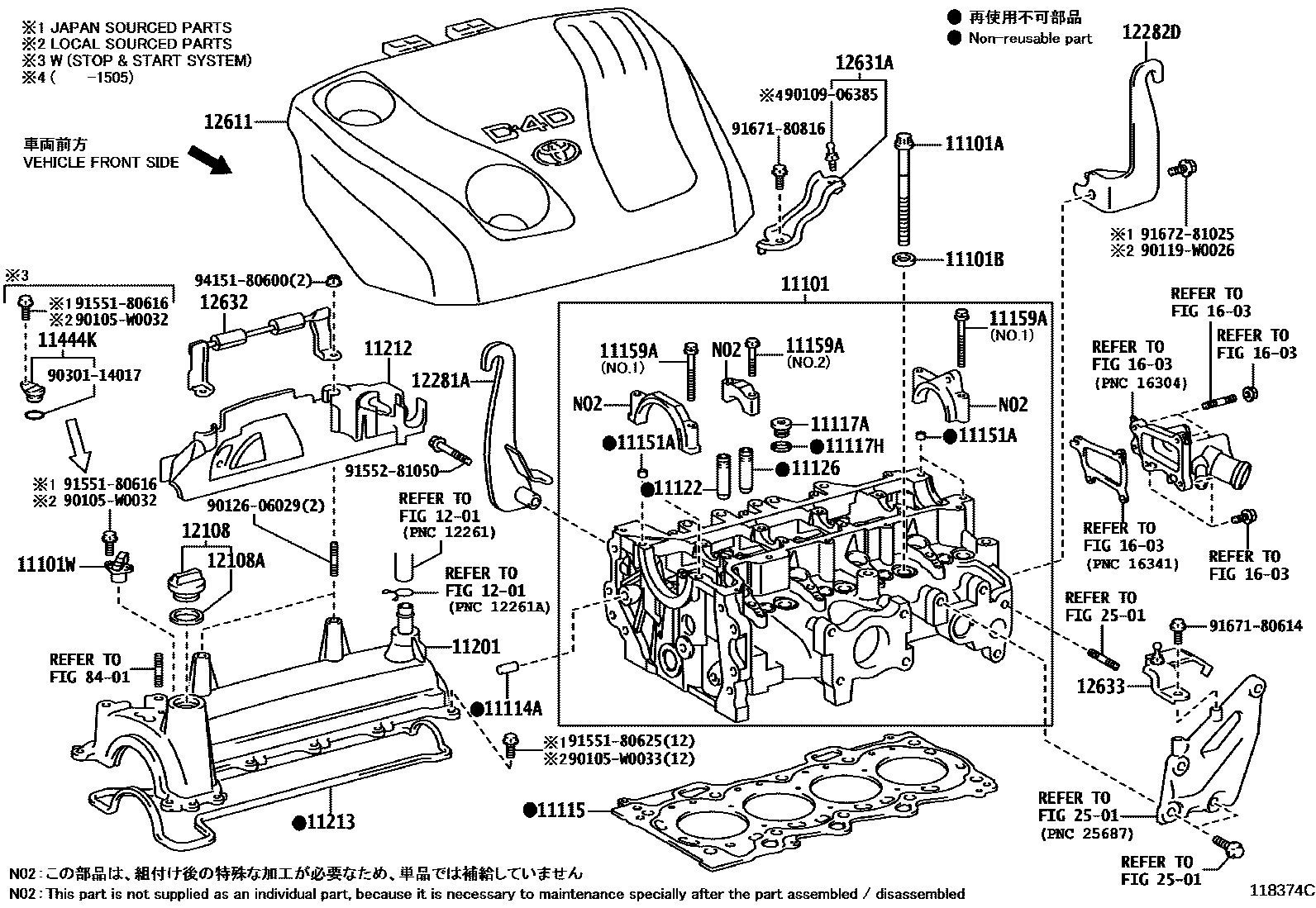

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-09300i201306-201901
(L)
main11101-0N010i201505-201901
main11101-33061i201606-201711
TURKEY SPEC
main11101-33061i201306-201605
main11101-39686i201306-201901
(J)
main11101-49465i201306-201708
sub11101-49466
main11101-49466i201708-201808
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02166i201306-201901
main90910-02171i201306-201901
main90910-02174i201306-201808
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10344i201306-201901
main90201-13042i201306-201901
11101WSENSOR, CRANK POSITION, NO.1
main90919-05029i201606-201711
TURKEY SPEC
main90919-05029i201306-201605
main90919-05060i201306-201808
11114APIN, STRAIGHT
main90250-06001i201306-201901
L=14,OD=6
main90250-10030i201306-201901
L=36,OD=10
11115GASKET, CYLINDER HEAD
main11115-33040-A0i201306-201501
MARKA,REFER REPAIR MANUAL
sub11115-33041
main11115-33040-B0i201306-201501
MARKB,REFER REPAIR MANUAL
sub11115-33041
main11115-33040-C0i201306-201501
MARKC,REFER REPAIR MANUAL
sub11115-33041
main11115-33040-D0i201306-201501
MARKD,REFER REPAIR MANUAL
sub11115-33041
main11115-33040-E0i201306-201501
MARKE,REFER REPAIR MANUAL
sub11115-33041
main11115-33041-A0i201502-201901
MARK A,REFER REPAIR MANUAL
main11115-33041-B0i201502-201901
MARK B,REFER REPAIR MANUAL
main11115-33041-C0i201502-201901
MARK C,REFER REPAIR MANUAL
main11115-33041-D0i201502-201901
MARK D,REFER REPAIR MANUAL
main11115-33041-E0i201502-201901
MARK E,REFER REPAIR MANUAL
main11115-37060i201306-201406
sub11115-37061
main11115-37061i201407-201901
sub11115-37062
main11115-47050i201306-201808
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90341-14008i201306-201901
11117HGASKET(FOR WATER HOLE)
main90430-14008i201306-201901
main90430-20004i201306-201901
11122BUSH, INTAKE VALVE GUIDE
main11122-31041i201306-201707
STD
sub11122-47010
main11122-31050i201306-201901
STD
sub11122-31090
main11122-33030i201306-201901
STD
main11122-47020i201708-201808
STD
main11123-31041i201306-201707
O/S 0.05
sub11123-47010
main11123-31050i201306-201901
O/S 0.05
main11123-33030i201306-201901
O/S 0.05
main11123-47020i201708-201808
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-31041i201306-201707
STD
sub11122-47010
main11122-33030i201306-201901
STD
main11122-47020i201708-201808
STD
main11123-31041i201306-201707
O/S 0.05
sub11123-47010
main11123-33030i201306-201901
O/S 0.05
main11123-47020i201708-201808
O/S 0.05
main11126-31030i201306-201901
STD
sub11126-31040
main11127-31030i201306-201901
O/S 0.05
sub11127-31040
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
main90253-10004i201306-201901
L=10,OD=8
main90253-13005i201306-201901
L=12.5,OD=8
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90105-06360i201611-201705
sub91551-80635
main90105-T0347i201606-201610
main90119-07008i201306-201901
NO.1:REFER ILLUST.
main90119-07009i201306-201901
NO.2:REFER ILLUST.
main91551-80635i201306-201808
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0N020i201606-201711
TURKEY SPEC,(L)
main11201-0N020i201306-201711
(L)
main11201-0N030i201505-201901
main11201-0T040i201306-201901
(L)
main11201-0T050i201306-201901
(L)
main11201-33041i201306-201711
(J)
main11201-33041i201606-201711
TURKEY SPEC,(J)
main11201-37011i201306-201605
(J)
main11201-37022i201306-201901
(J)
main11201-47101i201306-201407
sub11201-47130
main11201-47130i201407-201808
11212COVER, CYLINDER HEAD, NO.2
main11212-0T080i201306-201605
MADE IN EUROPE
main11212-0T080i201606-201901
MARK=11212-0T080
main11212-0T160i201504-201901
(L)
main11212-33031i201606-201711
TURKEY SPEC
main11212-33031i201306-201605
main11212-37011i201306-201504
main11212-37011i201504-201901
(J)
main11212-37031i201606-201901
MARK=11212-37031
main11212-37031i201306-201605
MADE IN JAPAN
11213GASKET, CYLINDER HEAD COVER
main11213-0N010i201505-201901
main11213-0T020i201306-201505
(L)
sub11213-0T021
main11213-0T021i201506-201901
(L)
main11213-33030i201306-201512
sub11213-33031
main11213-33031i201601-201711
TURKEY SPEC
main11213-37020i201306-201505
(J)
sub11213-37021
main11213-37021i201506-201901
(J)
main11213-47020i201306-201808
11444KPLUG, HOLE
main11444-33010i201306-201406
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-38010i201306-201901
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i201306-201901
12281AHANGER, ENGINE, NO.1
main12281-0T040i201608-201901
(L)
main12281-33050i201606-201711
TURKEY SPEC
main12281-33050i201306-201605
main12281-33080i201505-201901
main12281-37021i201306-201605
W/O(PAINTED)
main12281-37021i201606-201901
(J)
main12281-37050i201306-201605
(J)
sub12281-37021
main12281-47022i201306-201404
sub12281-47023
main12281-47023i201404-201808
12282DHANGER, ENGINE, NO.2
main12282-0N020i201505-201901
main12282-0T040i201608-201901
(L)
main12282-33022i201306-201605
main12282-33022i201606-201711
TURKEY SPEC
main12282-37011i201606-201901
(J)
main12282-37011i201306-201605
W/O(PAINTED)
main12282-37040i201306-201605
(J)
sub12282-37011
main12282-47010i201306-201808
12611COVER, ENGINE, NO.1
main12611-0N080i201606-201711
TURKEY SPEC
main12611-0N080i201306-201605
main12611-0N090i201505-201901
main12611-0Y040i201306-201808
12631ABRACKET, ENGINE COVER
main12631-0N010i201306-201505
(L)
main12631-0N020i201505-201901
main12631-33020i201306-201505
(J)
12632BRACKET, ENGINE COVER, NO.2
main12632-0N010i201306-201711
(L)
main12632-0N010i201606-201711
TURKEY SPEC,(L)
main12632-33041i201306-201711
(J)
main12632-33041i201606-201711
TURKEY SPEC,(J)
main12632-33060i201505-201901
12633BRACKET, ENGINE COVER, NO.3
main12633-0N010i201606-201711
TURKEY SPEC,(L)
main12633-0N010i201306-201711
(L)
main12633-33020i201606-201711
TURKEY SPEC,(J)
main12633-33020i201306-201711
(J)
main12633-33030i201505-201901
1603
2501
8401
90105W0032
main90105-W0032
90105W0033
main90105-W0033
9010906385
main90109-06385
90119W0026
main90119-W0026
9012606029
main90126-06029
9030114017
main90301-14017
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180614
main91671-80614
9167180816
main91671-80816
9167281025
main91672-81025
9415180600
main94151-80600

41 parts on this diagram · 7 diagrams in section
