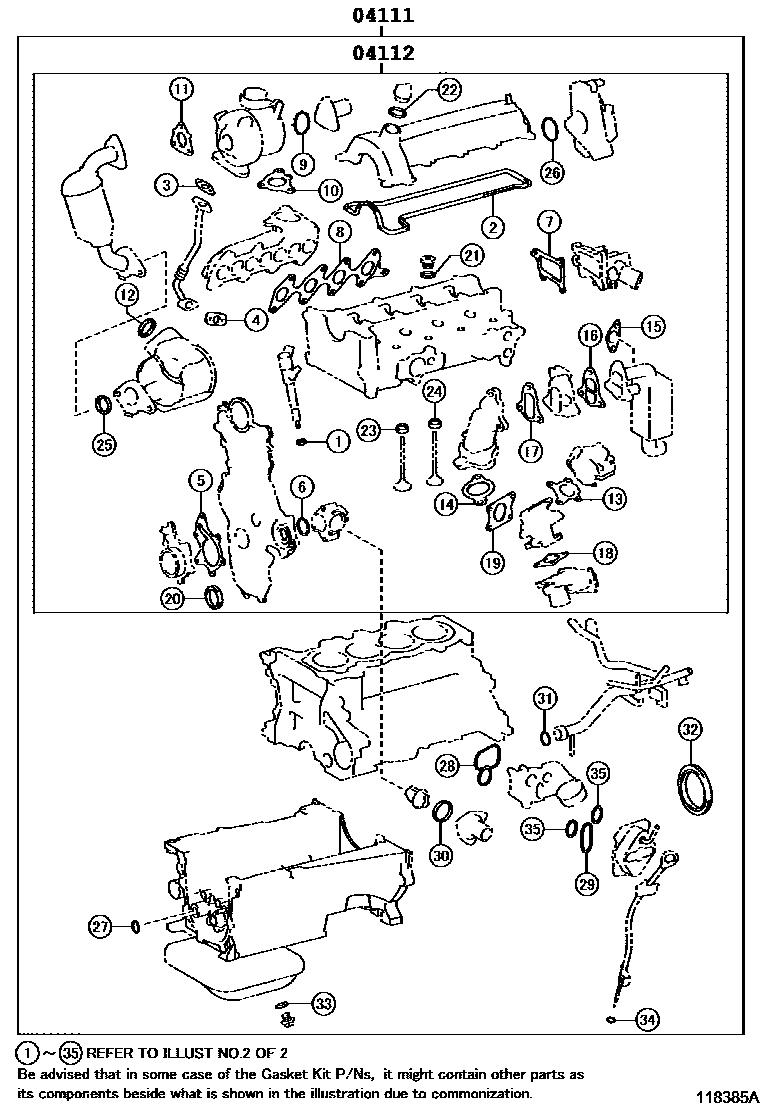

ENGINE OVERHAUL GASKET KIT

0001 1EXCEPT EURO6 0002 1EXCEPT EURO6 0003 1EURO6 0004 1EURO 6 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T064i1ZRFAE..ZRE181201306-201406

sub04111-0T065

main04111-0T065i1ZRFAE..ZRE181201406-201410

main04111-0T066i1ZRFAE..ZRE181201410-201506

sub04111-0T067

main04111-0T067i1ZRFAE..ZRE181201506-201901

main04111-0T083i1ZRFE,2ZRFE..ZRE18#201306-201406

sub04111-0T084

main04111-0T084i1ZRFE,2ZRFE..ZRE18#201406-201506

sub04111-0T085

main04111-0T085i1ZRFE,2ZRFE..ZRE18#201506-201901

sub04111-0T087

main04111-33181i1NDTV..NDE180201306-201409

sub04111-33182

main04111-33182i1NDTV..NDE180201409-201411

main04111-33220i1NDTV..NDE180..6FS201505-201901

main04111-33230i1NDTV..NDE180..6FS201606-201711

TURKEY SPEC

main04111-33230i1NDTV..NDE180..6F201411-201605

main04111-47077i1NRFE..NRE180201306-201312

main04111-47190i1NRFE..NRE180201312-201808

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T014i1ZRFE,2ZRFE..ZRE18#201306-201506

sub04112-0T015

main04112-0T015i1ZRFE,2ZRFE..ZRE18#201506-201901

sub04112-0T017

main04112-0T064i1ZRFAE..ZRE181201306-201410

main04112-0T065i1ZRFAE..ZRE181201410-201506

sub04112-0T066

main04112-0T066i1ZRFAE..ZRE181201506-201901

main04112-33181i1NDTV..NDE180201306-201409

sub04112-33182

main04112-33182i1NDTV..NDE180201409-201411

main04112-33200i1NDTV..NDE180..6FS201505-201901

main04112-33210i1NDTV..NDE180..6FS201411-201605

main04112-33210i1NDTV..NDE180..LHD..6F201606-201711

TURKEY SPEC

main04112-47036i1NRFE..NRE180201306-201312

main04112-47130i1NRFE..NRE180201312-201808

2 parts on this diagram · 10 diagrams in section
