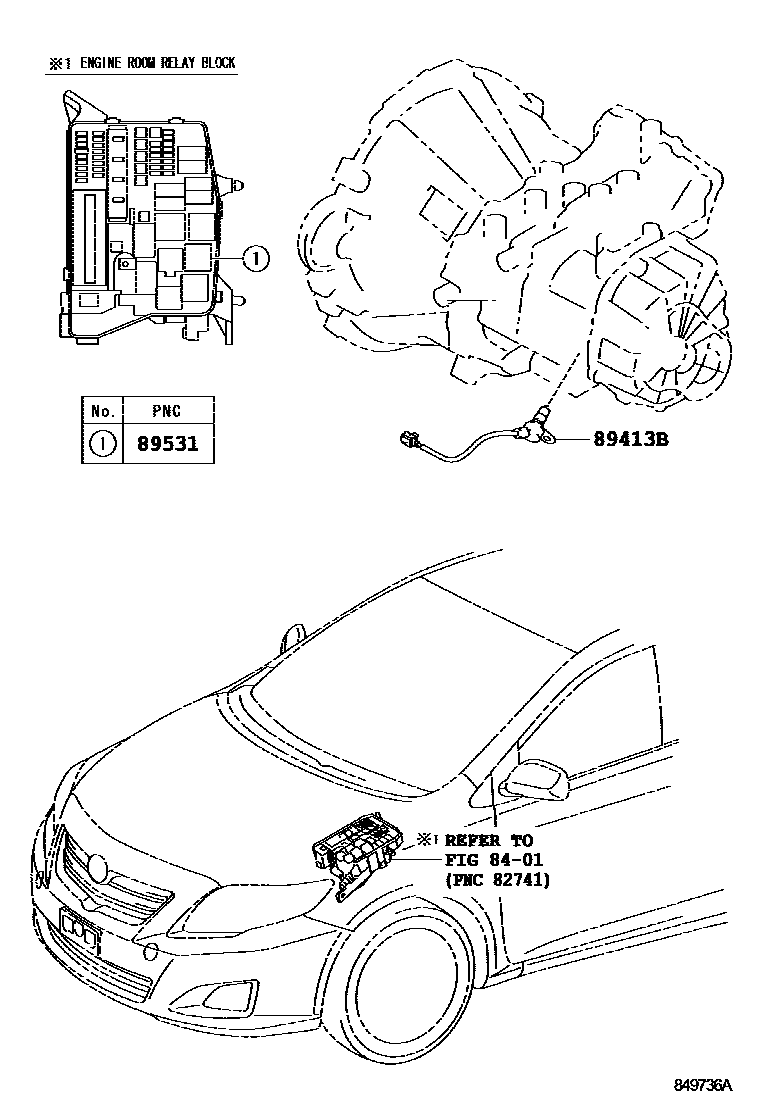

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iNDE150,ZRE151..6FS200902-201306

main89413-32010iZRE151..4FC200902-201006

main89413-64010iNDE150,ZRE151..5FS200802-200902

89531RELAY, TRANSMISSION CONTROL

main90987-T2002iNDE150,ZRE151..5FS200802-201304

3 parts on this diagram · 3 diagrams in section
