SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE & TRANSMISSION 0009 1ENGINE ROOM 0011 1ENGINE ROOM 0013 1ENGINE ROOM RELAY BLOCK 0015 1ENGINE ROOM RELAY BLOCK 0017 1COWL 0018 1COWL 0019 1INSTRUMENT PANEL 0020 1INSTRUMENT PANEL 0021 1STEERING 0023 1STEERING 0025 1DOOR,ROOF,FLOOR & LUGGAGE

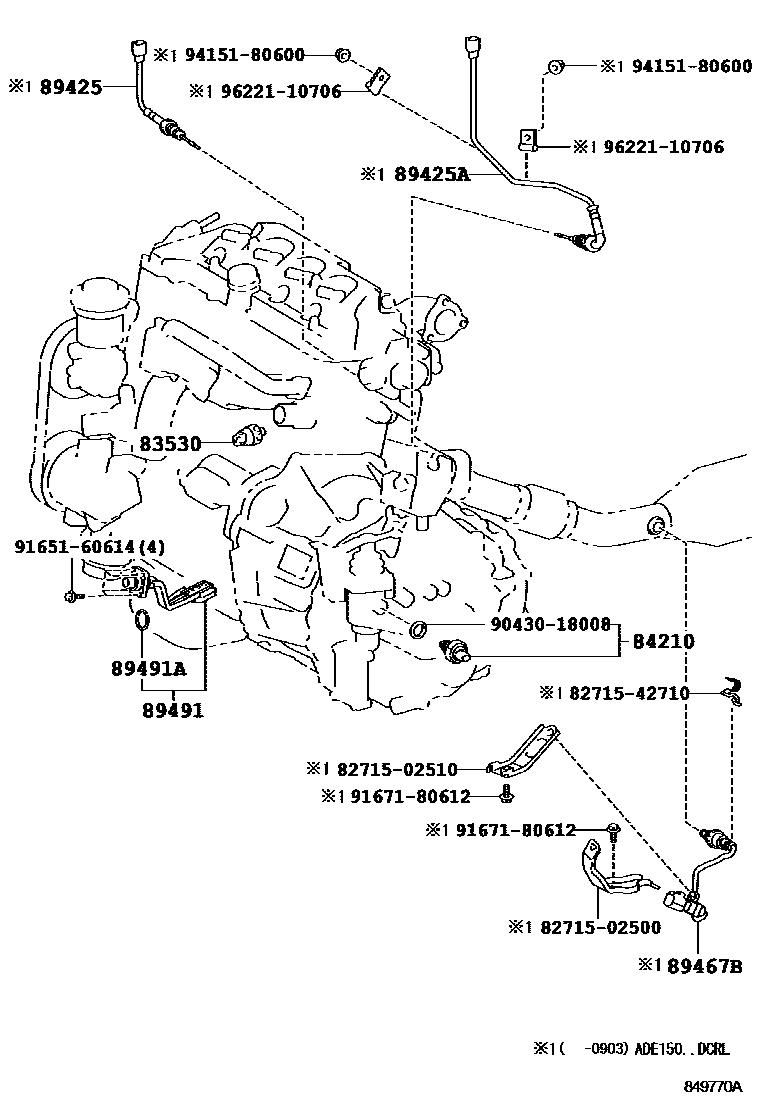

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRE151,ZZE150200802-201306

VALEO

main83530-28010iADE150;NDE150..5F,5FS200802-201306

DENSO

main83530-28020iNRE150,ZRE151200802-201306

DENSO

main83530-60010iADE150;NDE150..5F,5FS200802-201306

YAZAKI

main83530-60020iNRE150,ZRE151200802-201306

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNDE150..6F;NRE150,ZRE151;NDE150..6FS..DCRL200802-201206

main84210-52010iNDE150,ZRE151,ZZE150..5F200802-200902

main84210-52050iADE150;NDE150..6FS..DCR201205-201306

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20360iADE150..DCRL200802-200903

main89425-20380iADE150200903-201306

main89425-52010iNDE150..DCRL200902-200911

main89425-52011iNDE150..DCRL200911-201306

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20370iADE150..DCRL200802-200903

main89425-20390iADE150200903-201306

main89425-52020iNDE150..DCRL200902-200911

main89425-52021iNDE150..DCRL200911-201306

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE150201107-201306

(L)

main89467-0D020iNDE150201008-201106

(L)

main89467-12020iADE150..DCRL200802-200903

main89467-12130iNDE150201107-201306

(J)

main89467-12170iNDE150201008-201106

(J)

main89467-12170iNDE150..D;NDE150..LHD..N200902-201008

main89467-20100iADE150200903-201306

main89467-52070iNRE150200902-201101

main89467-52090iNRE150201102-201306

89491SENSOR, ENGINE OIL LEVEL

main89491-12030iNDE150200802-200902

main89491-20120iADE150200802-201306

main89491-52030iNDE150..DCR201008-201202

*251

main89491-52030iNDE150..DCR200902-201006

main89491-52030iNDE150..DCR201006-201112

*132

main89491-52031iNDE150..DCR201112-201306

*132

main89491-52031iNDE150..DCR201202-201306

*251

main89491-52040iNDE150..DCRL200902-201007

main89491-52050iNDE150..DCRL201007-201112

*132

main89491-52050iNDE150..DCRL201011-201202

*251

main89491-52051iNDE150..DCRL201112-201306

*132

main89491-52051iNDE150..DCRL201202-201306

*251

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iNDE150200802-200903

main90430-36005iNDE150..DCR201008-201306

*251

main90430-36005iNDE150..D;NDE150..LHD..N200902-201007

main90430-36005iNDE150201006-201306

*132

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

9043018008

main90430-18008

9165160614

main91651-60614

9167180612

main91671-80612

9415180600

main94151-80600

9622110706

main96221-10706

15 parts on this diagram · 19 diagrams in section
