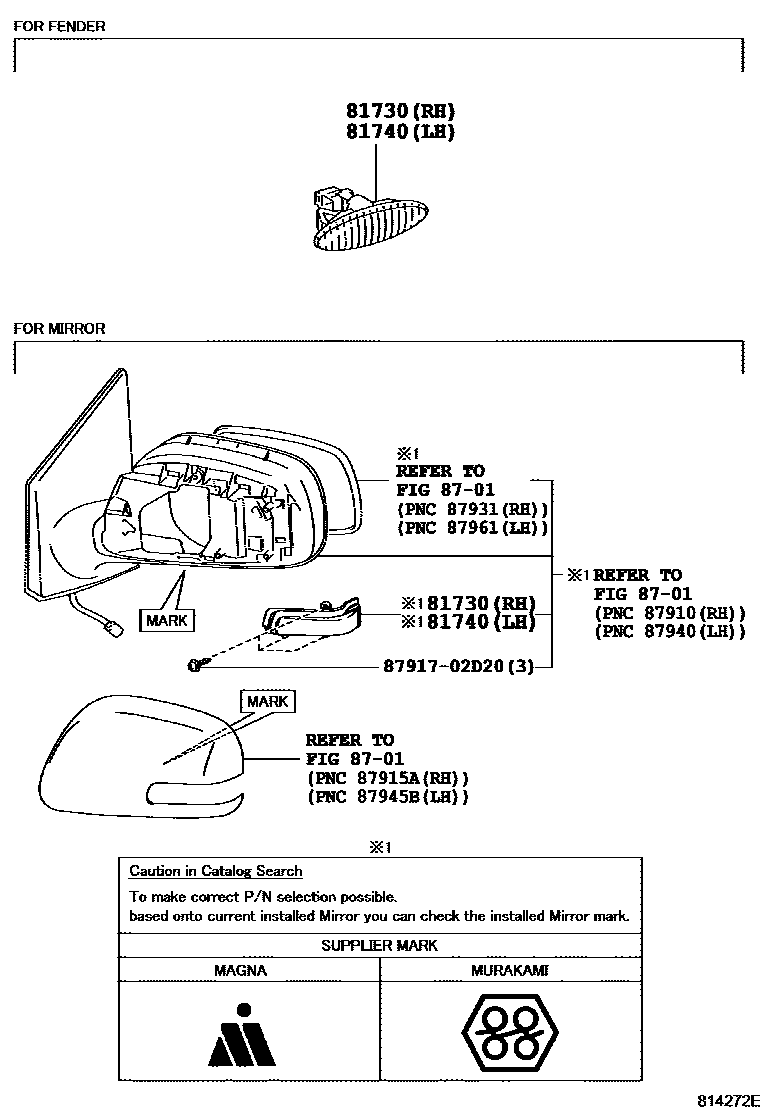

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-02080iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

main81730-02110iADE150,NDE150,NRE150,ZRE151201006-201306

MAGNA

main81730-22180iADE150,NDE150,NRE150,ZRE151201006-201306

MURAKAMI

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-02080iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

main81740-02020iADE150,NDE150,NRE150,ZRE151201006-201306

MAGNA

main81740-22180iADE150,NDE150,NRE150,ZRE151201006-201306

MURAKAMI

8701MIRROR

→ Go to FIG 87-01

8791702D20ESCUTCHEON

main87917-02D20

4 parts on this diagram · 1 diagram in section
