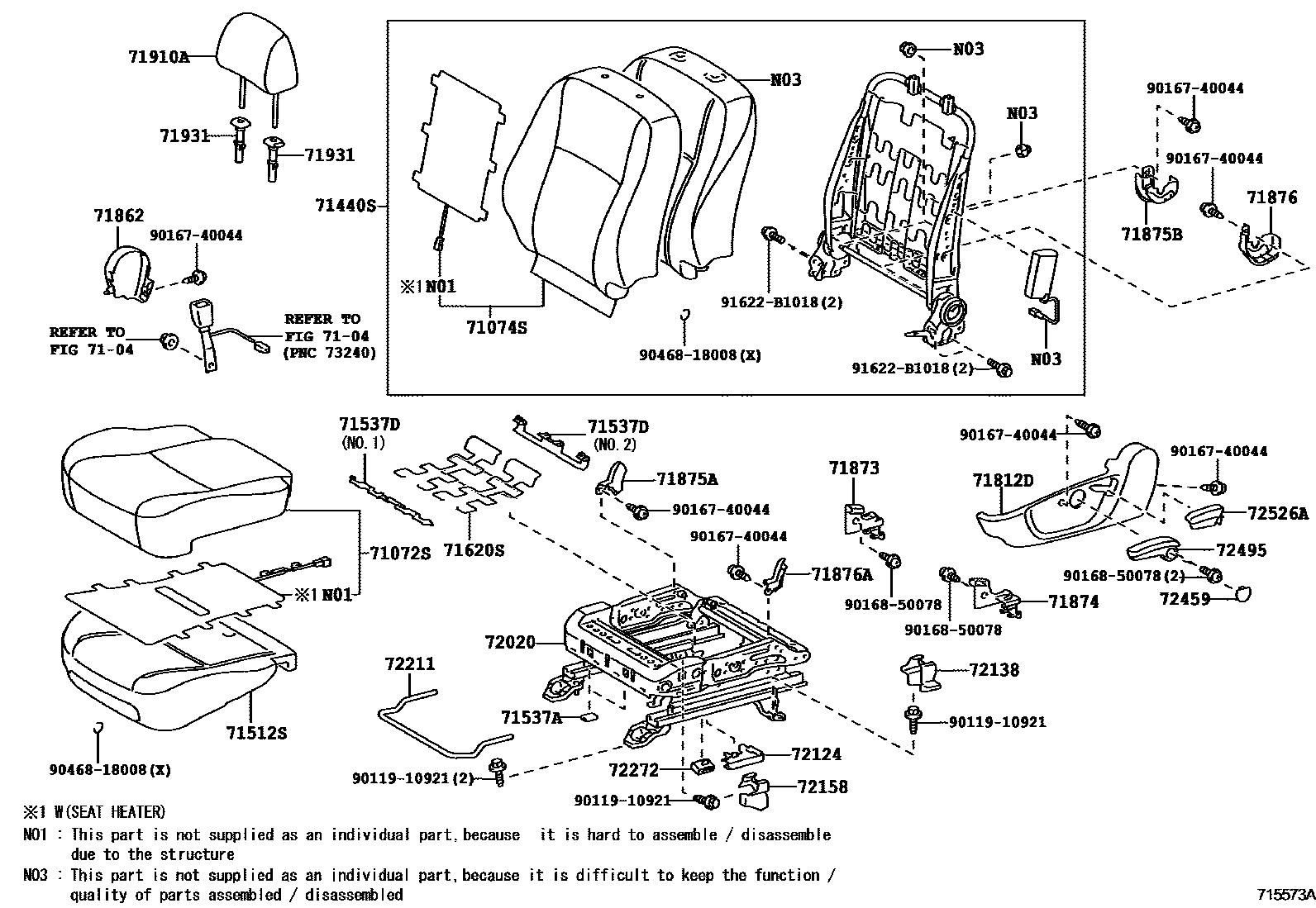

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1RH SEAT 0003 1LH SEAT 0004 1RH SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-02J20-B0iNDE150,NRE150,ZRE151..RHD..D200902-201003

DARK GRAY,TRIM1#

main71072-02J21-B0iNDE150,NRE150,ZRE151..RHD..D201003-201007

DARK GRAY,TRIM1#

main71072-02J21-B2iNDE150,NRE150,ZRE151..RHD..D201006-201306

DARK GRAY,TRIM1#

main71072-02J50-B0iADE150..RHD200802-200903

DARK GRAY,TRIM1#

main71072-02J50-E0iZRE151,ZZE150..RHD..N200802-200902

GREGE,TRIM4#

main71072-02Y90-E0iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201306

GREGE,TRIM4#

main71072-02J30-B0supersedes 71072-02J10-B0iNDE150,ZRE151,ZZE150..LHD..D200802-200902

COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02J31-B0supersedes 71072-02J11-B0iNDE150,NRE150,ZRE151..LHD..D201003-201007

COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02J31-B1supersedes 71072-02J11-B1iNDE150,NRE150,ZRE151..LHD..D201006-201306

COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02J60-B0supersedes 71072-02J40-B0iADE150..LHD200802-200903

COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02J60-E0supersedes 71072-02J40-E0iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201007

COLD AREA SPEC,GREGE,TRIM4#

main71072-02Z30-B0supersedes 71072-02Z20-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02Z30-E0supersedes 71072-02Z20-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

COLD AREA SPEC,GREGE,TRIM4#

main71072-02Z50-C0supersedes 71072-02Z20-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

EXCLUSIVE,DARK GRAY,TRIM1#

main71072-02Z60-C0supersedes 71072-02Z20-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

EXCLUSIVE&COLD AREA SPEC,DARK GRAY,TRIM1#

main71072-02Z70-C0supersedes 71072-02Y90-B0iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201306

EXCLUSIVE,DARK GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-02N60-B3iNDE150,ZRE151,ZZE150..D200802-200902

DARK GRAY,TRIM1#

main71074-02N61-B3iNDE150,NRE150,ZRE151..D200912-201003

DARK GRAY,TRIM1#

main71074-02N62-B3iNDE150,NRE150,ZRE151..D201003-201007

DARK GRAY,TRIM1#

main71074-02N80-B3iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-200912

DARK GRAY,TRIM1#

main71074-02N80-E4iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-200912

GREGE,TRIM4#

main71074-02N81-B3iADE150,NDE150,NRE150,ZRE151..N200912-201003

DARK GRAY,TRIM1#

main71074-02N81-E4iADE150,NDE150,NRE150,ZRE151..N200912-201003

GREGE,TRIM4#

main71074-02N82-B3iNDE150..LHD..N;ADE150,NRE150,ZRE151..N201003-201007

DARK GRAY,TRIM1#

main71074-02N82-E4iNDE150..LHD..N;ADE150,NRE150,ZRE151..N201003-201007

GREGE,TRIM4#

main71074-0Z180-E2iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

main71074-0Z710-B0iNDE150,NRE150,ZRE151..D201006-201306

DARK GRAY,TRIM1#

main71074-02N70-B2iNDE150,ZRE151,ZZE150..LHD..D200802-200902

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N71-B2iNDE150,NRE150,ZRE151..LHD..D200912-201003

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N72-B2iNDE150,NRE150,ZRE151..LHD..D201003-201007

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N90-B2iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200902-200912

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N90-E3iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200902-200912

COLD AREA SPEC,GREGE,TRIM4#

main71074-02N91-B2iADE150,NDE150,NRE150,ZRE151..LHD..N200912-201003

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N91-E3iADE150,NDE150,NRE150,ZRE151..LHD..N200912-201003

COLD AREA SPEC,GREGE,TRIM4#

main71074-02N92-B2iADE150,NDE150,NRE150,ZRE151..LHD..N201003-201007

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-02N92-E3iADE150,NDE150,NRE150,ZRE151..LHD..N201003-201007

COLD AREA SPEC,GREGE,TRIM4#

main71074-0Z190-B2iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-0Z190-E2iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

COLD AREA SPEC,GREGE,TRIM4#

main71074-0Z210-C2supersedes 71074-0Z180-B2iADE150,NDE150,NRE150,ZRE151..N201006-201306

EXCLUSIVE,DARK GRAY,TRIM1#

main71074-0Z220-C2iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

EXCLUSIVE&COLD AREA SPEC,DARK GRAY,TRIM1#

main71074-0Z700-B0iNDE150,NRE150,ZRE151..LHD..D201006-201306

COLD AREA SPEC,DARK GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-02R30-B4iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201007

DK.GRAY,TRIM1#

main71440-02R30-E5iNDE150,ZRE151,ZZE150..N200802-200902

GREGE,TRIM4#

main71440-02R40-B3iNDE150,NRE150,ZRE151..D200902-201007

DK.GRAY,TRIM1#

main71440-0Z290-E2iADE150,NDE150,NRE150,ZRE151..N201006-201301

GREGE,TRIM4#

main71440-0Z291-E0iADE150,NDE150,NRE150,ZRE151..N201302-201306

GREGE,TRIM4#

main71440-0Z690-B0iNDE150,NRE150,ZRE151..D201006-201301

DK.GRAY,TRIM1#

main71440-0Z691-B0iNDE150,NRE150,ZRE151..D201302-201306

DK.GRAY,TRIM1#

main71440-02R90-B2iNDE150,ZRE151,ZZE150..LHD..N200802-200902

COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-02R90-E3iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201007

COLD AREA SPEC,GREGE,TRIM4#

main71440-02S00-B2iNDE150,NRE150,ZRE151..LHD..D200902-201007

COLD AREA SPEC,IVORY,TRIM1#

main71440-0Z280-B3iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201301

COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-0Z280-E2iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201301

COLD AREA SPEC,GREGE,TRIM4#

main71440-0Z281-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201302-201306

COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-0Z281-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201302-201306

COLD AREA SPEC,GREGE,TRIM4#

main71440-0Z310-B3iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201301

EXCLUSIVE&COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-0Z311-B0iADE150,NDE150,NRE150,ZRE151..LHD..N201302-201306

EXCLUSIVE&COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-0Z320-B3supersedes 71440-0Z290-B3iADE150,NDE150,NRE150,ZRE151..N201006-201301

EXCLUSIVE,DK.GRAY,TRIM1#

main71440-0Z321-B0supersedes 71440-0Z291-B0iADE150,NDE150,NRE150,ZRE151..N201302-201306

EXCLUSIVE,DK.GRAY,TRIM1#

main71440-0Z700-B0iNDE150,NRE150,ZRE151..LHD..D201006-201301

COLD AREA SPEC,DK.GRAY,TRIM1#

main71440-0Z701-B0iNDE150,NRE150,ZRE151..LHD..D201302-201306

COLD AREA SPEC,DK.GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-02150iADE150..RHD200802-200903

main71512-02190iADE150,NDE150,NRE150,ZRE151..LHD201006-201306

71537APROTECTOR, FRONT SEAT CUSHION

main71537-02020×4iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201007

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-58010iADE150,NDE150,NRE150,ZRE151..LHD; ADE150,NDE150,NRE150,ZRE151..RHD201006-201306

NO.1

main71537-58020iNDE150,ZRE151,ZZE150..LHD200802-200902

NO.2

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71051-02100iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

main71051-02110iNDE150,ZRE151,ZZE150..RHD200802-200902

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02280-B0iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

DK.GRAY,TRIM1#

main71812-02280-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200902-201006

GREGE,TRIM4#

main71812-02320-B0iADE150..LHD200802-200903

DK.GRAY,TRIM1#

main71812-02320-E0iADE150..LHD200802-200903

GREGE,TRIM4#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02140-B0iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201007

DK.GRAY,TRIM1#

main71862-02140-E0iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-02060iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201007

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-02060iNDE150,ZRE151,ZZE150200802-200902

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-02110-B0×2iNDE150,ZRE151,ZZE150200802-200902

DK.GRAY,TRIM1#

main71875-02110-E0×2iADE150200802-200903

GREGE,TRIM4#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-02120×2iNDE150,ZRE151,ZZE150200802-200902

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-02110×2iNDE150,ZRE151,ZZE150200802-200902

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-02120-B0×2iNDE150,ZRE151,ZZE150200802-200902

DK.GRAY,TRIM1#

main71876-02120-E0×2iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-02A90-B0×2iNDE150,NRE150,ZRE151..D200902-201007

DARK GRAY,TRIM1#

main71910-02A90-B2×2iNDE150,NRE150,ZRE151..D201006-201306

DARK GRAY,TRIM1#

main71910-02B00-B0×2iNDE150,ZRE151,ZZE150..N200802-200902

DARK GRAY,TRIM1#

main71910-02B00-E0×2iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201007

GREDE,TRIM4#

main71910-02B00-E2×2iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREDE,TRIM4#

main71910-02F30-B0×2supersedes 71910-02B00-B3iADE150,NDE150,NRE150,ZRE151..LHD..N; ADE150,NDE150,NRE150,ZRE151..N201006-201306

EXCLUSIVE&COLD AREA SPEC,DARK GRAY,TRIM1#; EXCLUSIVE,DARK GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2iADE150,NDE150,NRE150,ZRE151201006-201306

W(LOCK),DK.GRAY,TRIM1#

main71930-44020-E0×2iADE150,NDE150,NRE150,ZRE151..N201006-201306

W(LOCK),GREGE,TRIM4#

main71930-47010-B2×2iNDE150,ZRE151,ZZE150200802-200902

W(LOCK),DK.GRAY,TRIM1#

main71930-47010-E3×2iADE150200802-200903

W(LOCK),GREGE,TRIM4#

main71931-47010-B2×2iNDE150,ZRE151,ZZE150200802-200902

W/O(LOCK),DK.GRAY,TRIM1#

main71931-47010-E4×2iADE150200802-200903

W/O(LOCK),GREGE,TRIM4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02350iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

main72020-02360iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-02020iNDE150,ZRE151,ZZE150200802-200902

72138COVER, SEAT TRACK, OUTER LH

main72138-02120-B0iNDE150,ZRE151,ZZE150200802-200902

DK.GRAY,TRIM1#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-02100-B0iNDE150,ZRE151,ZZE150200802-200902

DK.GRAY,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06020×2iADE150200802-200903

72272CLAMP, SEAT TRACK CONTROL CABLE

main72272-02050×2iNDE150,ZRE151,ZZE150200802-200902

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72462-02020-B0iADE150200802-200903

DK.GRAY,TRIM1#

main72462-02020-E0iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

72495HANDLE, VERTICAL ADJUSTING, LH

main72494-02040-B0iNDE150,ZRE151,ZZE150..LHD200802-200902

DK.GRAY,TRIM1#

main72494-02040-E0iADE150..LHD200802-200903

GREGE,TRIM4#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-02110-B0iADE150..RHD200802-200903

DK.GRAY,TRIM1#

main72526-02110-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200902-201006

GREGE,TRIM4#

main72526-02120-B0iADE150..LHD200802-200903

DK.GRAY,TRIM1#

main72526-02120-E0iADE150..LHD200802-200903

GREGE,TRIM4#

9011910921

main90119-10921

9016740044

main90167-40044

9016850078

main90168-50078

9046818008

main90468-18008

91622B1018

main91622-B1018

32 parts on this diagram · 4 diagrams in section
