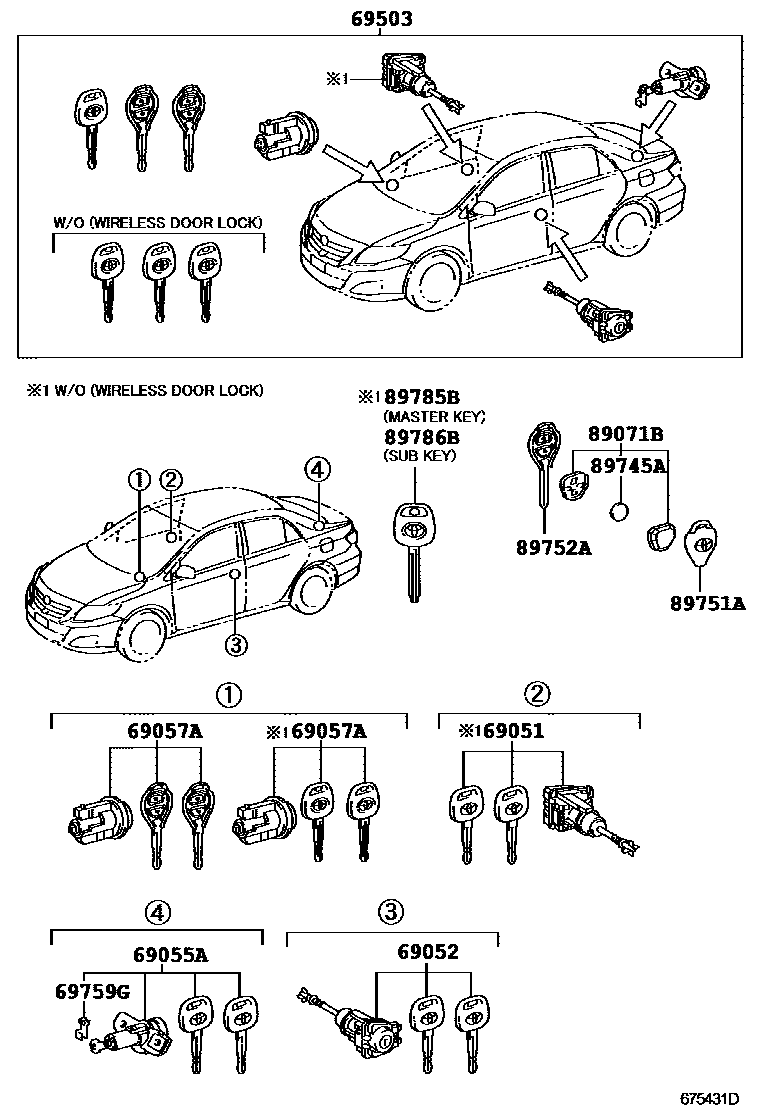

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
STARTING SYSTEM-PUSH BUTTON
69052CYLINDER & KEY SET, DOOR LOCK, LH
STARTING SYSTEM-PUSH BUTTON
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
STARTING SYSTEM-PUSH BUTTON
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
WIRELESS DOOR LOCK-WITHOUT
WIRELESS DOOR LOCK-WITHOUT
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,W(PASSENGER KEY CYLINDER); WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BODY COLOR,W(PASSENGER KEY CYLINDER)
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,W(PASSENGER KEY CYLINDER); WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BODY COLOR,W(PASSENGER KEY CYLINDER)
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,W(PASSENGER KEY CYLINDER); WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BODY COLOR,W(PASSENGER KEY CYLINDER)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-02040×2iADE150,ZRE151..N..(DCRL,HTWC,HTWVM); NDE150,NRE150,ZRE151..D..(DCR,HTWC,HTWVM); NDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
main89071-30130×2iADE150,NDE150,NRE150,ZRE151; ADE150,ZRE151..N; NDE150,NRE150,ZRE151..D201006-201208
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
main89071-33460×2iADE150,NDE150,NRE150,ZRE151; ADE150,ZRE151..N; NDE150,NRE150,ZRE151..D201208-201306
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
89745ABATTERY, TRANSMITTER
main89745-0H010iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..D; NDE150,ZRE151,ZZE150..RHD..D; ZRE151..N; ZRE151..RHD..N200802-200902
ANTI-THEFT LABEL-WITH+VIN PLATE(WIND GLASS&UK SPEC&STARTING SYSTEM-PUSH BUTTON; ANTI-THEFT LABEL-WITH+VIN PLATE(WIND GLASS&UK SPEC&WIRELESS DOOR LOCK-WITHOUT; ANTI-THEFT SYSTEM-WITH(IMB+ALARM)&STARTING SYSTEM-PUSH BUTTON; SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMB+ALARM)&STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON; UK SPEC&STARTING SYSTEM-PUSH BUTTON; UK SPEC&WIRELESS DOOR LOCK-WITHOUT; WIRELESS DOOR LOCK-WITHOUT
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
89751ACOVER, TRANSMITTER HOUSING
main89751-02010×2iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..D; NDE150,ZRE151,ZZE150..RHD..D; ZRE151..N; ZRE151..RHD..N200802-200902
ANTI-THEFT LABEL-WITH+VIN PLATE(WIND GLASS&UK SPEC&STARTING SYSTEM-PUSH BUTTON; ANTI-THEFT LABEL-WITH+VIN PLATE(WIND GLASS&UK SPEC&WIRELESS DOOR LOCK-WITHOUT; ANTI-THEFT SYSTEM-WITH(IMB+ALARM)&STARTING SYSTEM-PUSH BUTTON; SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(IMB+ALARM)&STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON; UK SPEC&STARTING SYSTEM-PUSH BUTTON; UK SPEC&WIRELESS DOOR LOCK-WITHOUT; WIRELESS DOOR LOCK-WITHOUT
main89751-05010×2iADE150,ZRE151..N; NDE150,NRE150,ZRE151..D..(DCR,HTWC,HTWVM); NDE150..DCR;ADE150,NRE150,ZRE151200912-201006
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
main89751-52140×2iADE150,NDE150,NRE150,ZRE151; ADE150,ZRE151..N; NDE150,NRE150,ZRE151..D201006-201306
STARTING SYSTEM-PUSH BUTTON; WIRELESS DOOR LOCK-WITHOUT
89752ACASE, TRANSMITTER HOUSING
main89752-02010×2iADE150,ZRE151..N..(DCRL,HTWC,HTWVM); NDE150,NRE150,ZRE151..D; NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-200912
CUT KEY; STARTING SYSTEM-PUSH BUTTON,CUT KEY; WIRELESS DOOR LOCK-WITHOUT,CUT KEY
main89752-0F010×2iNDE150,NRE150,ZRE151..D; NDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151200912-201007
CUT KEY; WIRELESS DOOR LOCK-WITHOUT,CUT KEY
BLANK KEY; WIRELESS DOOR LOCK-WITHOUT,BLANK KEY
89785BTRANSMITTER, TRANSPONDER KEY MASTER
WIRELESS DOOR LOCK-WITHOUT,CUT KEY
WIRELESS DOOR LOCK-WITHOUT,BLANK KEY
WIRELESS DOOR LOCK-WITHOUT,CUT KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY; STARTING SYSTEM-PUSH BUTTON,BLANK KEY
main89786-05070iADE150,ZRE151..N..(DCRL,HTWC,HTWVM); NDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006
CUT KEY; STARTING SYSTEM-PUSH BUTTON,CUT KEY
BLANK KEY
WIRELESS DOOR LOCK-WITHOUT,CUT KEY
12 parts on this diagram · 5 diagrams in section
