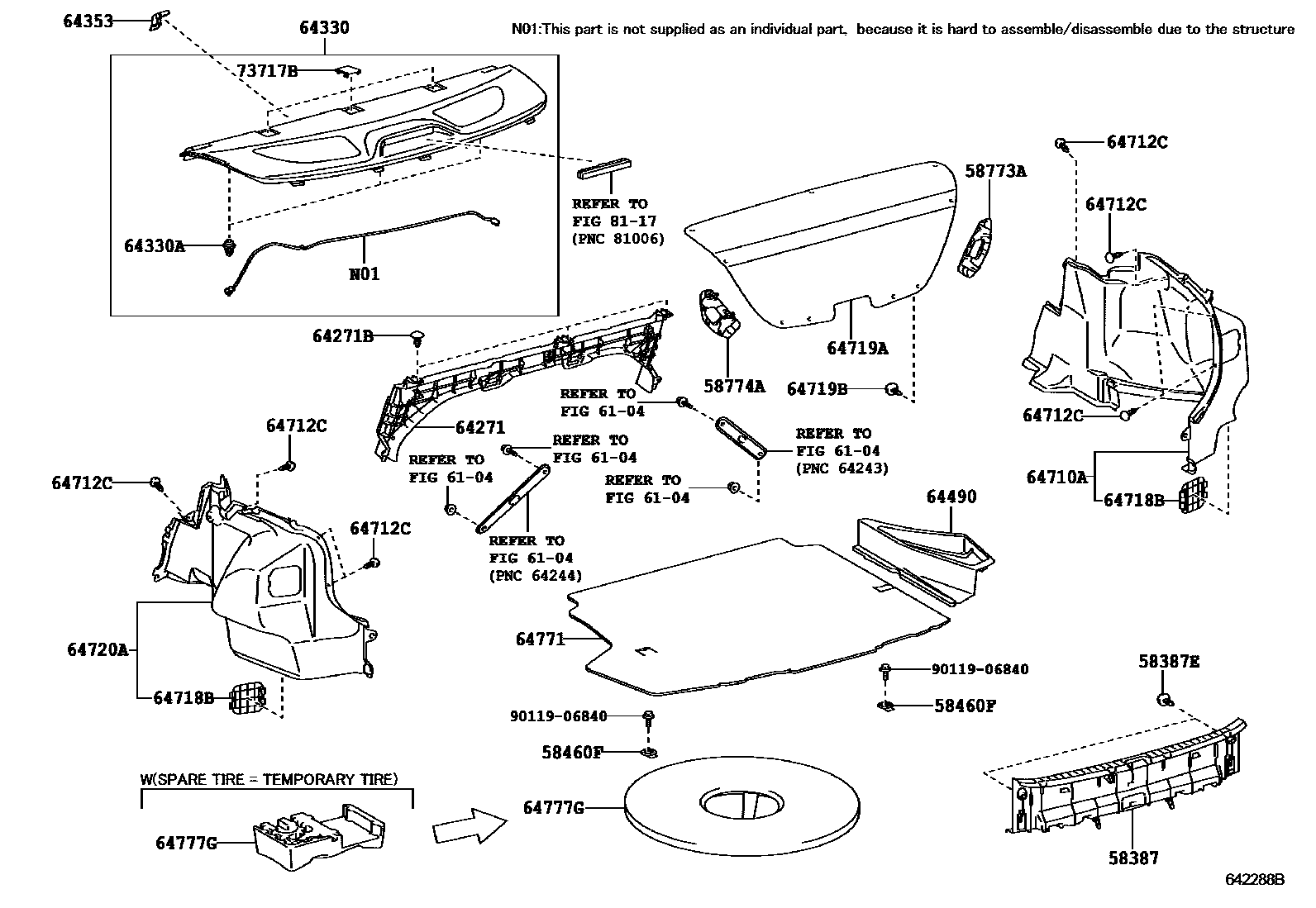

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02080iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iADE150200802-201306

BLACK

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-13010iADE150,NDE150,NRE150,ZRE151200802-201306

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02090iADE150200802-201306

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02070iNDE150,ZRE151,ZZE150200802-201306

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

64271BOARD, ROOM PARTITION, NO.1

main64271-02080iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0iADE150200802-201306

BLACK

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02690-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#

main64330-02690-B0iNDE150,ZRE151,ZZE150200802-201306

DK.GRAY,TRIM1#

main64330-02690-E0iADE150200802-201007

ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iNDE150..DCRL200802-201306

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02020-B0iADE150,NDE150,NRE150,ZRE151..N201006-201306

DK.GRAY,TRIM1#,4#

main64353-02020-B0iNDE150,ZRE151,ZZE150200802-201306

DK.GRAY,TRIM1#

main64353-02020-E0iNDE150,ZRE151,ZZE150..N200802-201007

ASH BROWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02010iADE150,NDE150,NRE150,ZRE151200802-201306

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02070-C0iNDE150..N;ZRE151,ZZE150200802-201306

BLACK,TRIM1#,4#

main64710-02070-C0iNDE150,NRE150,ZRE151..D200802-201306

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0iNDE150,ZRE151,ZZE150200802-201306

BLACK

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-02060iADE150200802-201306

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02080-C0iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200802-201306

BLACK,TRIM1#

main64719-02080-C0iNDE150..D200802-201306

BLACK,TRIM1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iNDE150,ZRE151,ZZE150200802-201306

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02070-C0iNDE150..D200802-201306

BLACK,TRIM1#

main64720-02070-C0iNDE150..D200802-201306

BLACK,TRIM1#,4#

64771COVER, SPARE WHEEL

main64771-02090-C0iNDE150..D200802-201306

BLACK,TRIM1#

main64771-02090-C0iNDE150..D200802-201306

BLACK,TRIM1#,4#

64777GCUSHION, SPARE WHEEL

main64777-02100iNDE150,ZRE151,ZZE150200802-201306

main64777-02100iADE150,NRE150..DCRL,HTWC;NDE150,ZRE151..DCR,HTWVM200902-201006

SPARE TIRE-T125/70D17

main64777-02160iZRE151..HTWVM;NDE150,NRE150..DCR,HTWC200902-201006

SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main64777-02160iZRE151..HTWVM;NDE150,NRE150..DCR,HTWC200902-201006

SPARE TIRE-195/65R15 6J STEEL

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-02020-B0iADE150200802-201306

DK.GRAY,TRIM1#,CENTER

main73717-02020-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#,CENTER

main73717-02020-E1iNDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200802-201007

ASH BROWN,TRIM4#,CENTER

main73717-02030-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#,RH

main73717-02030-B0iADE150,NDE150,NRE150,ZRE151..N200802-201306

DK.GRAY,TRIM1#,RH

main73717-02030-E1iADE150200802-201007

ASH BROWN,TRIM4#,RH

main73717-02040-B0iADE150200802-201306

DK.GRAY,TRIM1#,LH

main73717-02040-B0iNDE150,NRE150,ZRE151..D201006-201306

DK.GRAY,TRIM1#,4#,LH

main73717-02040-E1iNDE150..N;ZRE151,ZZE150200802-201007

ASH BROWN,TRIM4#,LH

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906840

main90119-06840

23 parts on this diagram · 1 diagram in section
