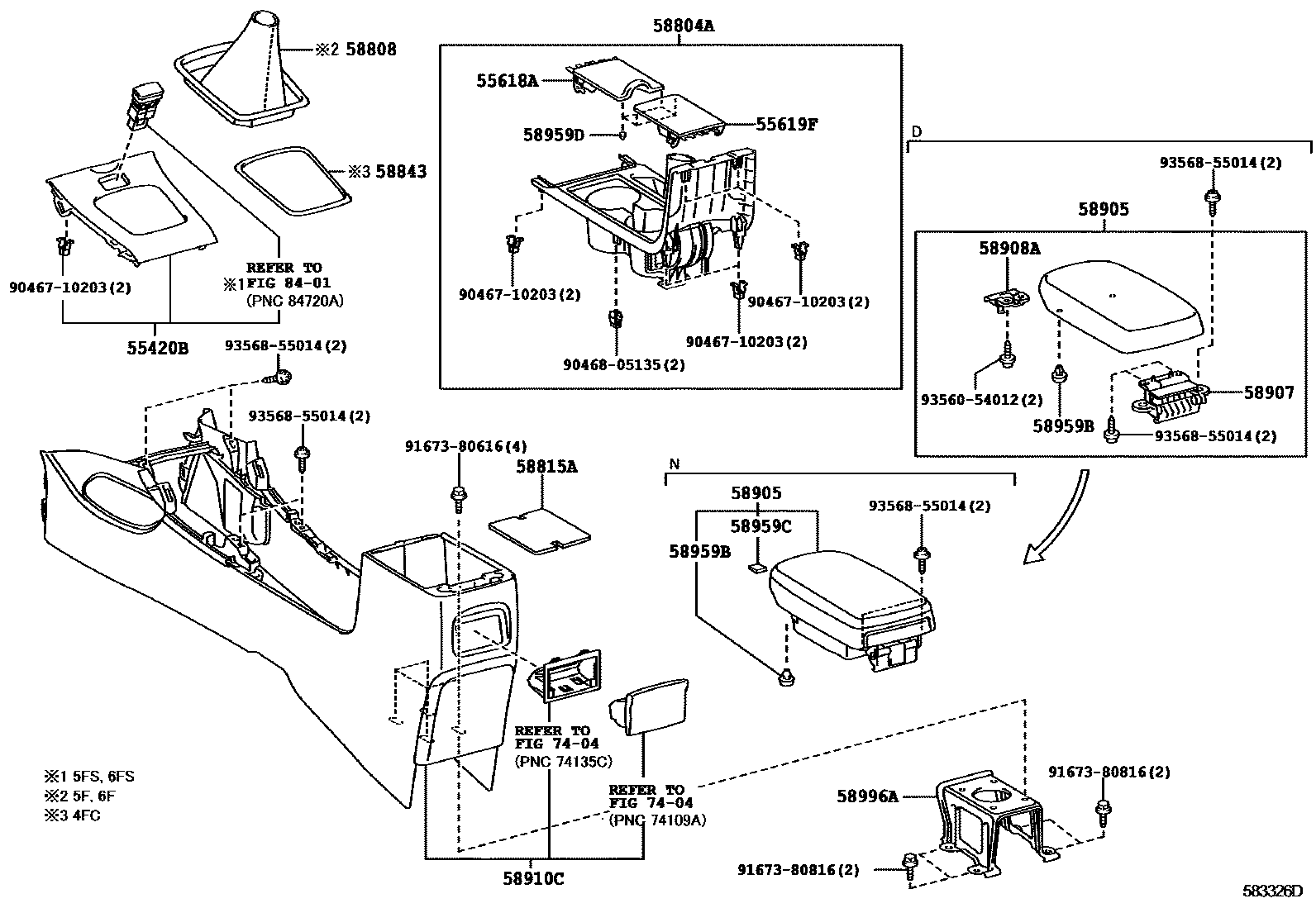

CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-02280iNDE150..LHD..6F..N;ADE150,NRE150,ZRE151..(4FC,6F)..N..(DCRL,HTWC,HTWVM)200902-201007

main55420-02300iADE150,NDE150,NRE150,ZRE151..6F..N201006-201306

main55420-02310iNDE150,ZRE151..6FS..N201006-201306

main55420-02360iNDE150,ZRE151,ZZE150..5F..D200802-200902

main55420-02420iNDE150,ZRE151..6FS..N200902-201007

main55420-02430iZRE151..6FS..D200902-201006

55618AHOLDER, CONSOLE BOX CUP

main55618-02060-B0iADE150,NDE150,NRE150,ZRE151..LHD201006-201306

DK.GRAY,TRIM1#

main55618-02060-E1iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

GREGE,TRIM4#

main55618-02070-B0iNDE150..RHD..D;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201007

DK.GRAY,TRIM1#

main55618-02070-E1iZRE151,ZZE150..RHD200802-200902

GREGE,TRIM4#

main55618-12050-B0iADE150,NDE150,NRE150,ZRE151..RHD201109-201306

DK.GRAY,TRIM1#

main55618-12050-E1iADE150,NDE150,NRE150,ZRE151..RHD..N201109-201306

GREGE,TRIM4#

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-02090-B0iNDE150,ZRE151,ZZE150..LHD200802-200902

DK.GRAY,TRIM1#

main55619-02090-E1iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201007

GREGE,TRIM4#

main55619-02100-B0iADE150..RHD200802-200903

DK.GRAY,TRIM1#

main55619-02100-E1iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200902-201006

GREGE,TRIM4#

main55619-12070-B0iADE150,NDE150,NRE150,ZRE151..RHD201109-201306

DK.GRAY,TRIM1#

main55619-12070-E1iADE150,NDE150,NRE150,ZRE151..RHD..N201109-201306

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02010-B1iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200902-201007

DK.GRAY,TRIM1#

main58804-02010-E1iNDE150..LHD..N;ADE150,NRE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200902-201007

GREGE,TRIM4#

main58804-02010-E2iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201210

GREGE,TRIM4#

main58804-02011-B1iADE150,NDE150,NRE150,ZRE151..LHD201211-201306

DK.GRAY,TRIM1#

main58804-02011-E2iADE150,NDE150,NRE150,ZRE151..LHD..N201211-201306

GREGE,TRIM4#

main58804-02020-B1iNDE150,ZRE151,ZZE150..RHD200802-200902

DK.GRAY,TRIM1#

main58804-02020-E1iADE150..RHD200802-200903

GREGE,TRIM4#

main58804-02020-E2iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201109

GREGE,TRIM4#

main58804-12050-B1iADE150,NDE150,NRE150,ZRE151..RHD201109-201306

DK.GRAY,TRIM1#

main58804-12050-E2iADE150,NDE150,NRE150,ZRE151..RHD..N201109-201306

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02170-B0iADE150,NDE150,NRE150,ZRE151..6F..N; NDE150,NRE150,ZRE151..6F..D201006-201210

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main58808-02170-E0iNDE150..LHD..6F..N;ADE150,NRE150,ZRE151..6F..N..(DCRL,HTWC,HTWVM)200902-201007

ASH BROWN,TRIM4#

main58808-02171-B0iADE150,NDE150,NRE150,ZRE151..6F..N; NDE150,NRE150,ZRE151..6F..D201211-201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

58815ACARPET, CONSOLE BOX

main58815-02110iNDE150,ZRE151,ZZE150200802-200902

58843BEZEL, SHIFTING HOLE

main58843-12130iZRE151..4FC..N200902-201006

main58843-12160iZRE151..4FC..D200902-201006

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02450-B0iNDE150,ZRE151,ZZE150..D200802-200902

DK.GRAY,TRIM1#

main58905-12600-B7iADE150200802-200903

DK.GRAY,TRIM1#

main58905-12600-E4iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201006

GREGE,TRIM4#

main58905-12601-E4iADE150,NDE150,NRE150,ZRE151..N201007-201306

GREGE,TRIM4#

main58905-12610-B4supersedes 58905-12601-B7iADE150,NDE150,NRE150,ZRE151..N201006-201306

EXCLUSIVE&SEAT COVER MATERIAL-LEATHER(ALCANTARA),DK.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100iNDE150,NRE150,ZRE151..D201006-201306

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iNDE150..D..DCRL200902-201007

58910CBOX ASSY, CONSOLE, REAR

main58910-02080-B0iADE150200802-200903

DK.GRAY,TRIM1#

main58910-02080-E0iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iADE150,NDE150,NRE150,ZRE151201006-201306

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main55419-12120iNDE150,ZRE151,ZZE150..N200806-200902

main55419-32020iADE150,NDE150,ZRE151,ZZE150..N200802-200805

58959DCUSHION, REAR CONSOLE BOX

main58959-12040×4iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02060iNDE150,ZRE151,ZZE150200802-200902

main58996-12160iADE150,NDE150,NRE150,ZRE151201006-201306

7404ASH RECEPTACLE

→ Go to FIG 74-04

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

9167380816

main91673-80816

9356054012

main93560-54012

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
