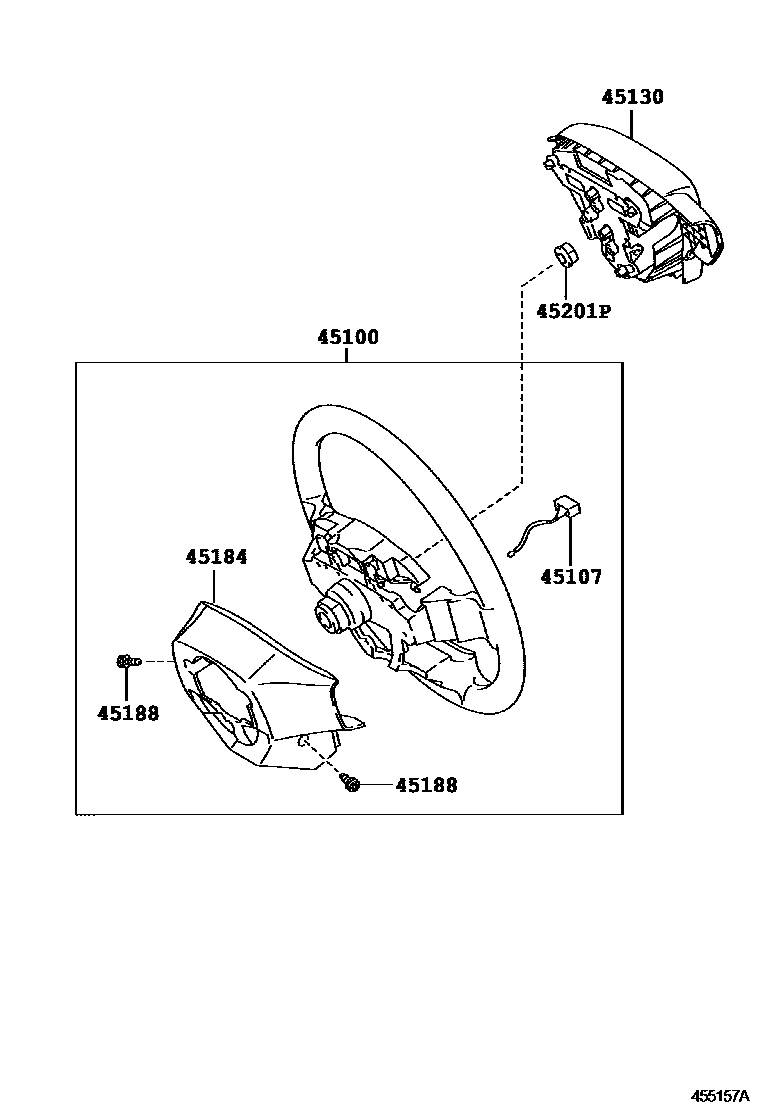

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-02850-B0i200802-200903

3-SPOKE,URETHANE,STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02850-E0i200802-200903

3-SPOKE,URETHANE,STEERING WHEEL-3-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-02860-B0i200802-200902

3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),DK.GRAY,TRIM1#

main45100-02860-E0i200902-201006

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

main45100-02870-B0i200802-200902

3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),DK.GRAY,TRIM1#

main45100-02870-E0i200802-200903

3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),ASH BROWN,TRIM4#

main45100-02A00-B0supersedes 45100-02850-B0i200802-200902

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45100-02A00-E0supersedes 45100-02850-E0i200802-200902

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

main45100-02A30-B0supersedes 45100-02850-B0i200902-201007

3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(LM/AM/FM, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(LM/AM/FM, CD) & 6SPEAKER,DK.GRAY,TRIM1#

main45100-02A30-E0supersedes 45100-02850-E0i200802-200902

3-SPOKE,LEATHER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,ASH BROWN,TRIM4#

main45100-02A60-B0i200902-201006

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45100-02A60-E0i200802-200902

3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),ASH BROWN,TRIM4#

main45100-02A90-B0supersedes 45100-02A40-B0i200802-200902

main45100-02A90-E0i200802-200902

main45100-02B20-B0supersedes 45100-02S10-B0i200902-201006

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(LM/AM/FM, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(LM/AM/FM, CD) & 6SPEAKER,DK.GRAY,TRIM1#

main45100-02B20-E0i200802-200902

main45100-02D70-B0i200902-201006

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION & 6SPEAKER,DK.GRAY,TRIM1#

main45100-02D70-E0i200902-201006

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION & 6SPEAKER,ASH BROWN,TRIM4#

main45100-02D80-B0i200802-200902

3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITIONSW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITIONSW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#

main45100-02D80-E0i200802-200902

3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITIONSW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITIONSW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#

main45100-02D90-B0supersedes 45100-02A30-B0i200802-200902

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#

main45100-02D90-E0supersedes 45100-02A30-E0i200802-200903

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#

main45100-02E10-B0i200802-200902

3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#

main45100-02E10-E0i200802-200902

3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#

main45100-02E20-B0supersedes 45100-02B20-B0i200902-201007

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION & 6SPEAKER,DK.GRAY,TRIM1#

main45100-02E20-E0supersedes 45100-02B20-E0i200802-200902

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#

main45100-02Q50-B0supersedes 45100-02Q40-B0i201006-201306

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-02R10-B0supersedes 45100-02Q50-B0i201006-201306

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#

main45100-02R20-B0supersedes 45100-02Q50-B0i201006-201306

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#

main45100-02R40-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#

main45100-02R60-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#

main45100-02R70-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#

main45100-02R80-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#

main45100-02R90-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#

main45100-02S00-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#

main45100-02S20-B0supersedes 45100-02S10-B0i201006-201306

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-02S40-B0supersedes 45100-02S10-B0i201006-201306

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#

main45100-02S50-B0supersedes 45100-02S20-B0i201006-201306

3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#

main45100-02S60-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#

main45100-02S70-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#

main45100-02S80-B0i201006-201306

3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-02020i200902-201007

45130BUTTON ASSY, HORN

main45130-02510-B0i201006-201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main45130-02340-B0supersedes 45130-02330-B0i200802-200902

STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),DK.GRAY,TRIM1#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45130-02340-E0supersedes 45130-02330-E0i200902-201007

STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW),ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-02130-B0i200802-200902

DK.GRAY,TRIM1#

main45184-02130-E0i200802-200902

ASH BROWN,TRIM4#

main45184-02140-B0i200902-201007

DK.GRAY,TRIM1#

main45184-02140-E0i200802-200902

ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,ASH BROWN,TRIM4#

main45184-02180-B0i201006-201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main45184-02270-B0i201006-201306

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main45184-02150-B0supersedes 45184-02130-B0i200802-200903

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),DK.GRAY,TRIM1#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45184-02150-E0i200802-200903

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),ASH BROWN,TRIM4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&SPEEDOMETER-KM/H, WITHOUT(MULTI DISPLAY),ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

main45184-02160-B0i200802-200902

WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45184-02160-E0i200802-200902

WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-MAP NAVIGATION 6SPEAKER,ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

main45184-02190-B0i201006-201306

CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISECONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISECONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISECONTROL-WITH,DK.GRAY,TRIM1#,4#

main45184-02280-B0i201006-201306

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200902-201007

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i201006-201306

6 parts on this diagram · 5 diagrams in section
