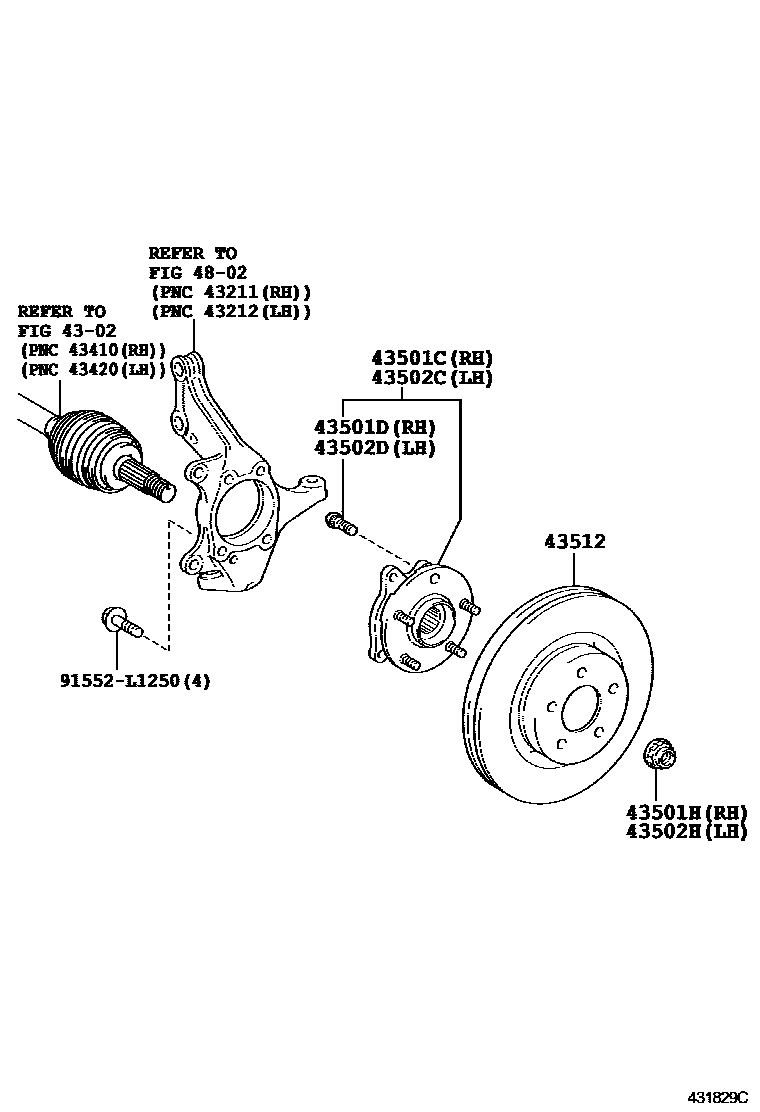

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02030iNDE150,ZRE151,ZZE150200802-201306

main43550-02040iADE150200802-201306

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iADE150200802-201306

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNDE150,ZRE151,ZZE150200802-201306

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02030iNDE150..D;NRE150,ZRE151;NDE150..LHD..N200802-201306

main43550-02040iADE150200802-201306

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iADE150,NDE150,NRE150,ZRE151200802-201306

43512DISC, FRONT

main43512-02200iNDE150,ZRE151,ZZE150200802-201306

main43512-02210iADE150200802-201306

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
