STARTER

0001 112V 1.1KW 0002 112V 1.1KW 0003 112V 2.0KW 0004 112V 2.0KW 0005 112V 1.1KW 0006 112V 1.6KW 0007 112V 2.0KW 0008 112V 1.3KW 0009 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0D160i1ZRFE,4ZZFE..ZRE151,ZZE150200802-200902

main28011-55060i1NDTV..NDE150; 1NDTV..NDE150..LHD200802-200902

COLD AREA SPEC; SUB COLD AREA SPEC

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-0D160i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

28100STARTER ASSY

main28100-0D160i4ZZFE..ZZE150200802-200902

12V 1.1KW

main28100-0R010i1ADFTV..ADE150200903-201006

12V 2.0KW

main28100-0T010i1ZRFAE..ZRE151201006-201306

12V 1.1KW

main28100-0N030i1NDTV..NDE150; 1NDTV..NDE150..LHD200802-200902

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

main28100-0N050supersedes 28100-0N060i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N; 1NDTV..NDE150..LHD200902-201007

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

main28100-0Y040supersedes 28100-0Y030i1NRFE..NRE150201006-201008

12V 1.6KW,STOP & START SYSTEM PACKAGE

main28100-0Y041supersedes 28100-0Y030i1NRFE..NRE150201009-201012

12V 1.6KW,STOP & START SYSTEM PACKAGE

main28100-0Y042supersedes 28100-0Y030i1NRFE..NRE150201101-201306

12V 1.6KW,STOP & START SYSTEM PACKAGE

28110HOUSING ASSY, STARTER DRIVE

main28110-0D160i4ZZFE..ZZE150200802-200902

main28110-0N020i1NDTV..NDE150200802-200902

main28110-0R010i1ADFTV..ADE150201006-201306

main28110-0T010i1ZRFE..ZRE151200802-200902

main28110-0N050supersedes 28110-33110i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N; 1NDTV..NDE150..LHD200902-201007

COLD AREA SPEC; SUB COLD AREA SPEC

main28110-47110supersedes 28110-0Y010i1NRFE..NRE150201006-201306

STOP & START SYSTEM PACKAGE

28113LEVER, STARTER PINION DRIVE

main28113-0D160i1ZR#..ZRE151200902-201006

main28113-37050i1N#..NDE150,NRE150..DCR,HTWC200902-201006

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D160i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

main28130-0R010i1ADFTV..ADE150200903-201006

main28130-0N050i1NDTV..NDE150..D;1NDTV..NDE150..LHD..N; 1NDTV..NDE150..LHD200902-201007

COLD AREA SPEC; SUB COLD AREA SPEC

main28130-47110supersedes 28130-0Y010i1NRFE..NRE150201006-201306

STOP & START SYSTEM PACKAGE

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-0D160i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

28140HOLDER ASSY, STARTER BRUSH

main28140-0D160i1ZRFAE..ZRE151201006-201306

main28140-37050i1NRFE..NRE150;1NDTV..NDE150..D;1NDTV..NDE150..LHD..N200902-201007

main28140-47110i1NRFE..NRE150200902-201006

STOP & START SYSTEM PACKAGE

main28140-54380i1NDTV..NDE150; 1NDTV..NDE150..LHD200802-200902

COLD AREA SPEC; SUB COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-0D160i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200802-200902

main28150-37020i1NDTV..NDE150..DCR;1ADFTV..ADE150..DCRL200902-201006

main28150-40090i1NRFE..NRE150201006-201306

main28150-33040i1NDTV..NDE150; 1NDTV..NDE150..LHD200802-200902

COLD AREA SPEC; SUB COLD AREA SPEC

28160ARMATURE ASSY, STARTER

main28160-0D160i1ZRFAE..ZRE151201006-201306

main28160-0G020supersedes 28160-33090i1ADFTV..ADE150; 1NDTV..NDE150; 1NDTV..NDE150..LHD201006-201306

COLD AREA SPEC; SUB COLD AREA SPEC

main28160-54380i1NDTV..NDE150; 1NDTV..NDE150..LHD200802-200902

COLD AREA SPEC; SUB COLD AREA SPEC

main28180-47110supersedes 28160-37060i1NRFE..NRE150200902-201006

STOP & START SYSTEM PACKAGE

9006931016

main90069-31016

9006931017

main90069-31017

9006932029

main90069-32029

9006933016

main90069-33016

9017908204

main90179-08204

9161261065

main91612-61065

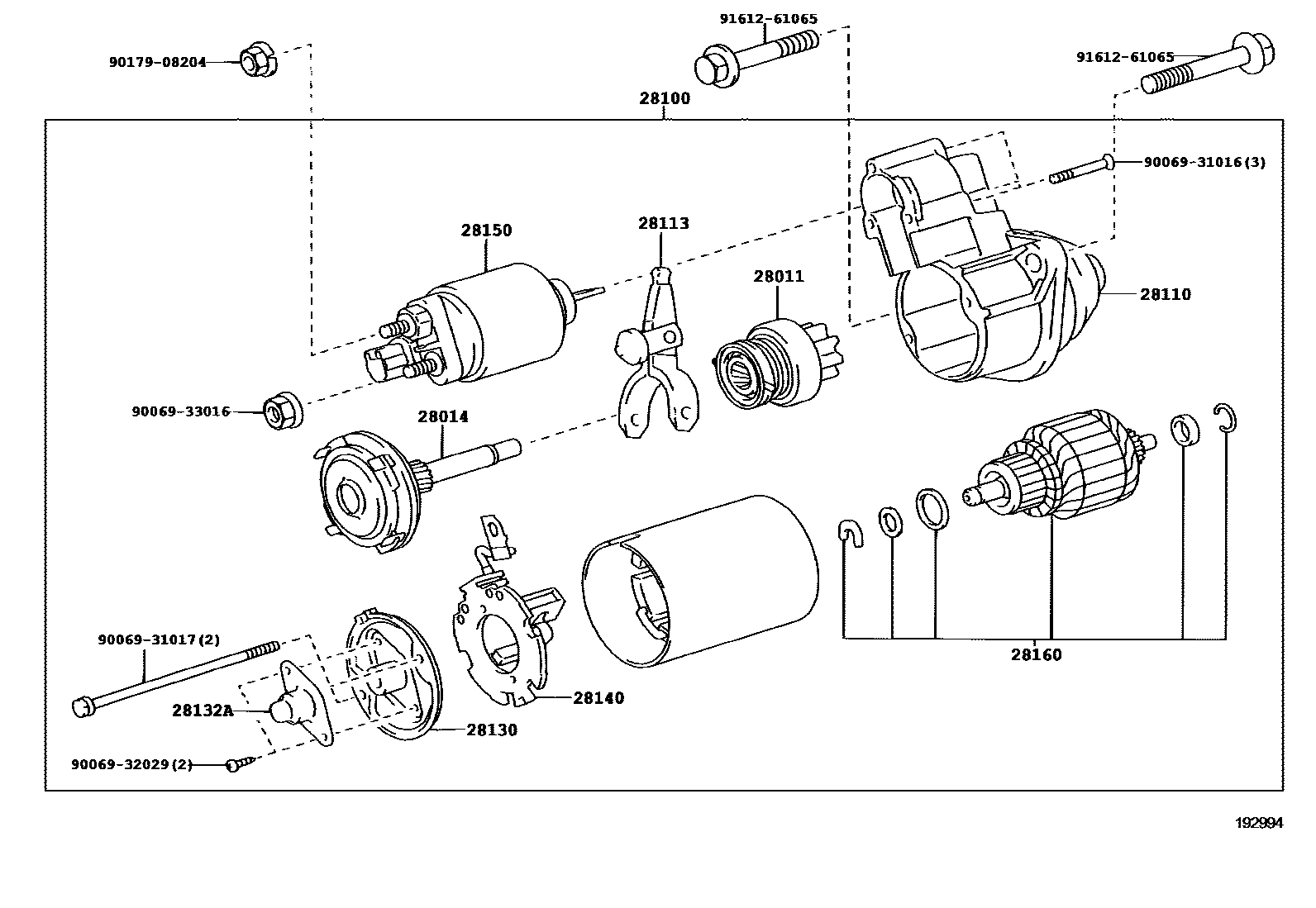

16 parts on this diagram · 9 diagrams in section
