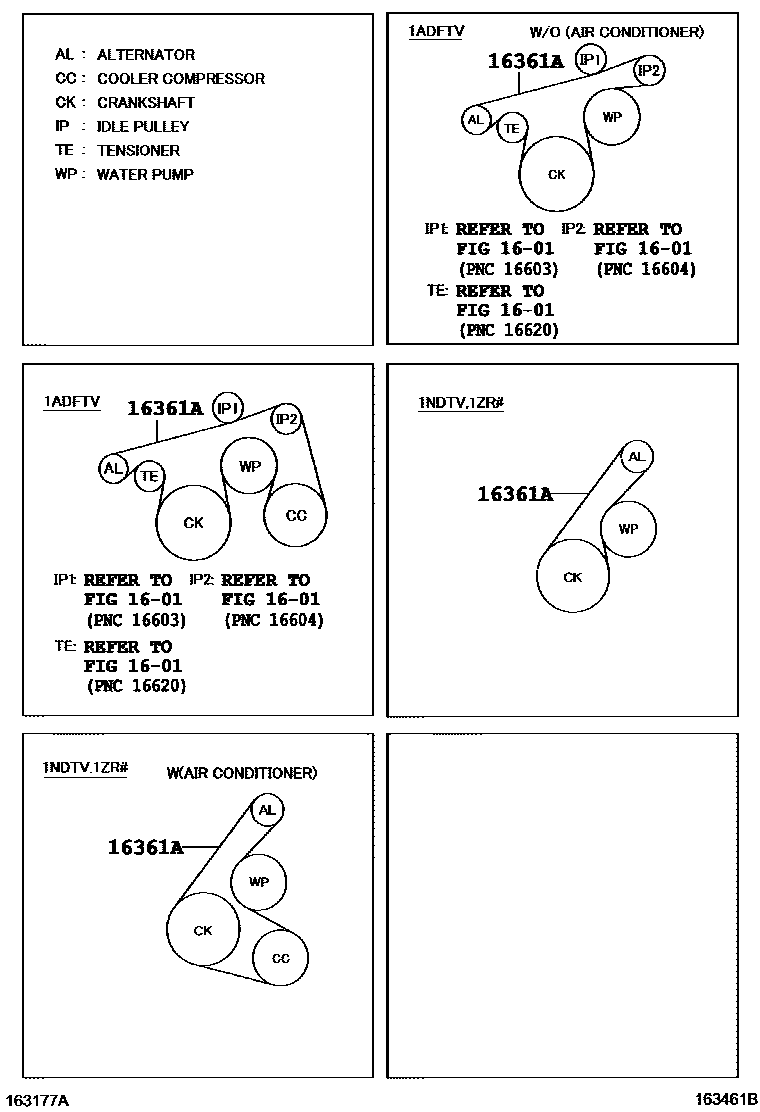

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02664supersedes 99366-K0910i200802-200902

COLD AREA SPEC&MANUAL AIR CONDITIONER; MANUAL AIR CONDITIONER

main90916-02674supersedes 90916-02673i201006-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-02691i201211-201306

main90916-W2004supersedes 90916-W2007i200802-200902

MANUAL AIR CONDITIONER

main90916-W2014i201006-201105

main90916-W2016supersedes 90916-W2001i200802-200902

MANUAL AIR CONDITIONER

main90916-W2018supersedes 99366-K0910i200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-W2035i201106-201210

main90916-W2013i200802-200903

WITHOUT(AIR CONDITIONER)

main90916-W2021i201006-201306

COLD AREA SPEC; STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC

main90916-W2023supersedes 90916-W2022i200902-201006

COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER; STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL AIR CONDITIONER; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-W2024supersedes 90916-W2022i201006-201306

AIR CONDITIONER-MANUAL AIR CONDITIONER

2 parts on this diagram · 3 diagrams in section
