Toyota COROLLA (S.AFRICA)164 — ENGINE OIL COOLER

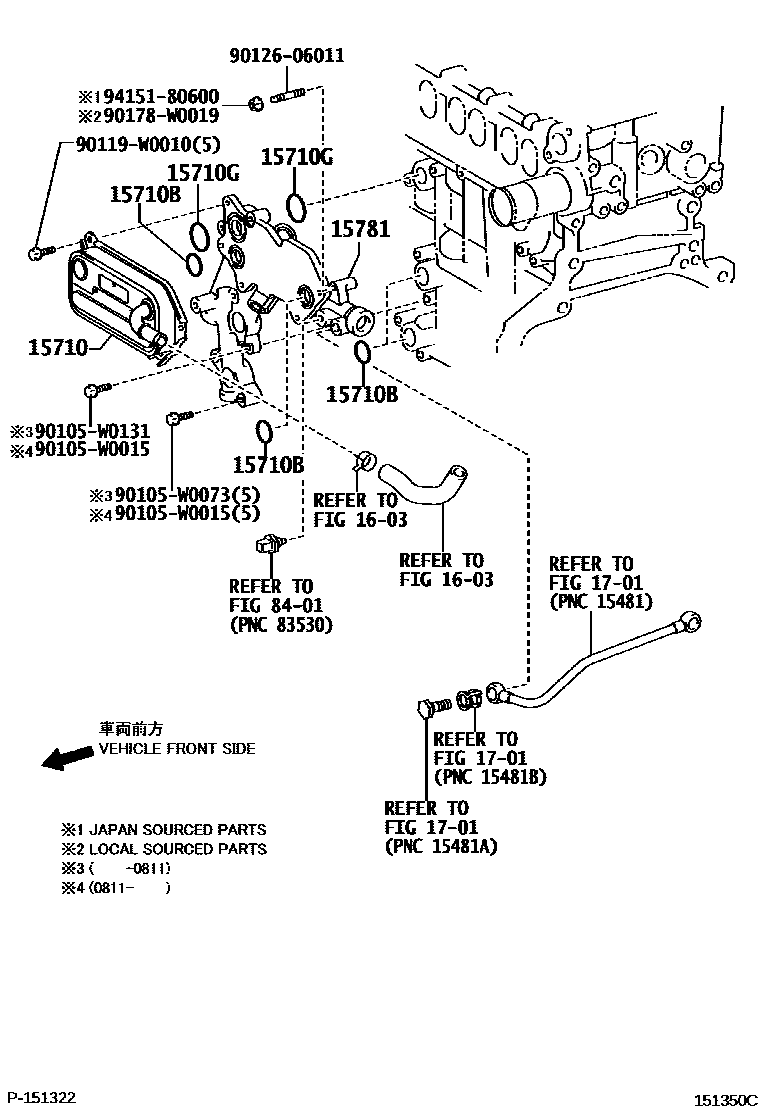

Parts diagram
15710COOLER ASSY, OIL
90301-58002
15710-0R010
15710-0R011
90301-29013
90301-24018
96723-35024
15710-33030
15710-33050
15710BRING, O(FOR OIL COOLER)
15710GRING, O, NO.2
15781BRACKET, OIL COOLER, NO.1
15781-26011
15781-26030
15781-26031
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90105W0015
90105-W0015
90105W0073
90105-W0073
90105W0131
90105-W0131
90119W0010
90119-W0010
9012606011
90126-06011
90178W0019
90178-W0019
9415180600
94151-80600

14 parts on this diagram · 4 diagrams in section

ENGINE OIL COOLER for Toyota COROLLA (S.AFRICA)164

This section contains 27 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota COROLLA (S.AFRICA)164. Key components include: CYLINDER BLOCK, OIL FILTER, HOSE SUB-ASSY, OIL COOLER, COOLER ASSY, OIL, RING, O(FOR OIL COOLER).
