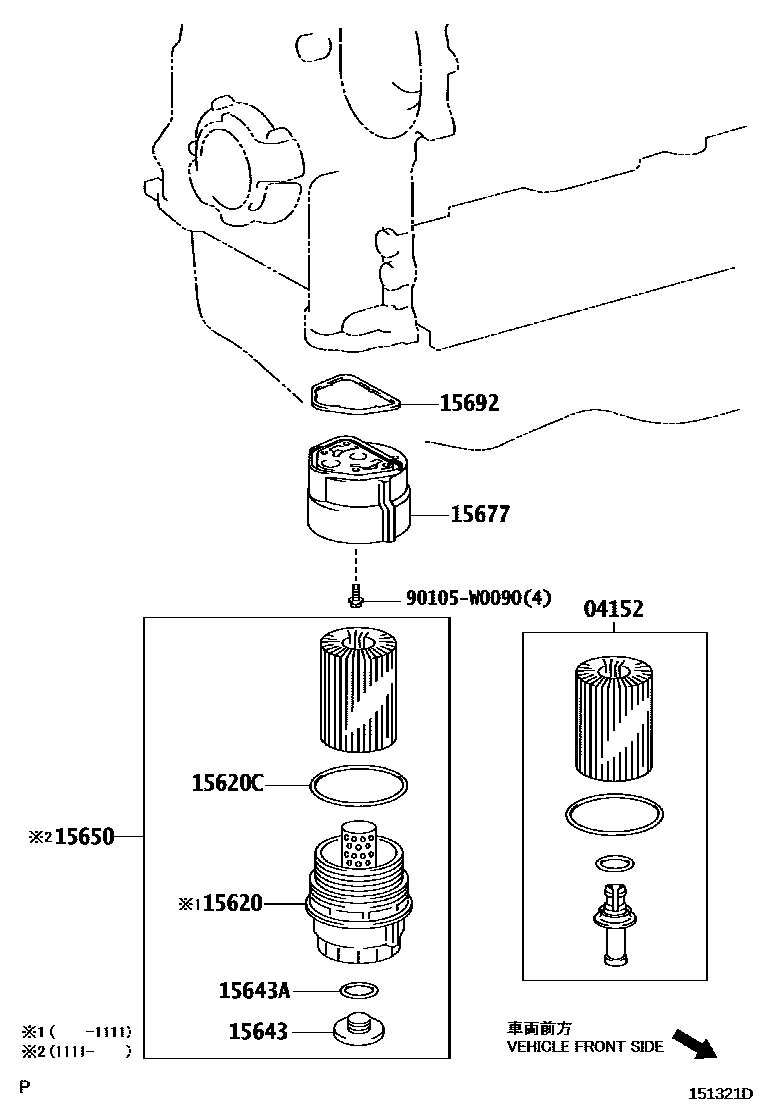

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04152ELEMENT KIT, OIL FILTER

main04152-0R010i1ADFTV..ADE150200802-201110

main04152-31110i1NDTV..NDE150..DCRL201008-201306

*251

main04152-31110i1NDTV..NDE150..DCR200902-201007

main04152-31110i1NDTV..NDE150201006-201306

*132

main04152-37010i1ZR#..ZRE151200902-201306

ELEMENT TYPE

main04152-38010i1ADFTV..ADE150201111-201306

main04152-40060i1NRFE..NRE150200902-201306

15620CAP ASSY, OIL FILTER

main15620-0R011i1ADFTV..ADE150200802-201111

main15620-37010i1ZRFAE..ZRE151200902-201306

ELEMENT TYPE

main15620-40030i1NRFE..NRE150200902-201306

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i1ZR#..ZRE151200902-201306

ELEMENT TYPE

main90301-79006i1NDTV..NDE150..DCRL201008-201306

*251

main90301-79006i1ADFTV..ADE150200802-201007

main90301-79006i1ADFTV..ADE150201006-201306

*132

15643PLUG, OIL FILTER DRAIN

main15643-0R010i1ADFTV..ADE150200802-201111

main15643-31050i1ADFTV..ADE150200902-201306

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i1ADFTV..ADE150200802-201306

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-0R020i1ADFTV..ADE150201111-201306

main15650-33010i1NDTV..NDE150..DCR200902-201007

main15650-33010i1NDTV..NDE150201006-201306

*132

main15650-33010i1NDTV..NDE150..DCR201008-201306

*251

15677BRACKET, OIL FILTER

main15677-0R010i1ADFTV..ADE150200802-201111

sub15677-0R011

main15677-0R012i1ADFTV..ADE150201111-201306

15692GASKET, OIL FILTER BRACKET

main15692-26010i1ADFTV..ADE150200802-201306

main15692-33010i1NDTV..NDE150..DCRL200902-201007

main15692-33010i1NDTV..NDE150..DCRL201008-201306

*251

main15692-33010i1NDTV..NDE150201006-201306

*132

90105W0090

main90105-W0090

9 parts on this diagram · 6 diagrams in section
