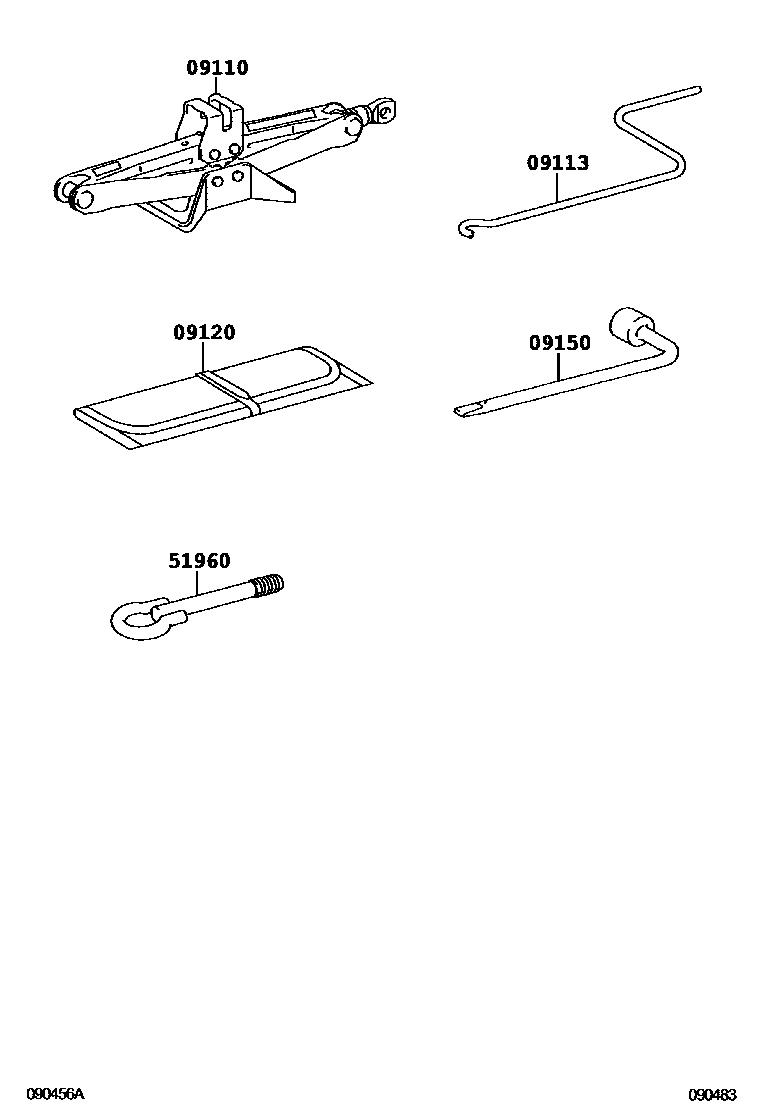

STANDARD TOOL

09110JACK ASSY

main09111-12160iADE150,NDE150,ZRE151,ZZE150200802-200811

sub09111-12210

main09111-12210iNDE150,ZRE151,ZZE150200812-201008

sub09111-12230

main09111-12230iADE150,NDE150,NRE150,ZRE151201009-201306

09113HANDLE, JACK

main09113-02020iNDE150,ZRE151,ZZE150200802-201306

09120BAG, TOOL

main09120-02080iZRE151..HTWC200902-201006

SPARE TIRE-195/65R15 6J STEEL

main09120-02080iZRE151..HTWC200902-201006

SPARE TIRE-205/55R16 6.5J STEEL

main09120-02080iZRE151..HTWC200902-201006

SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

main09120-02080iZRE151..HTWC200902-201006

SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

09150WRENCH, HUB NUT BOX

main09150-35070iNDE150,ZRE151,ZZE150200802-201306

51960HOOK ASSY, FRONT

main51960-02080iNDE150,ZRE151,ZZE150200802-201306

5 parts on this diagram · 1 diagram in section
