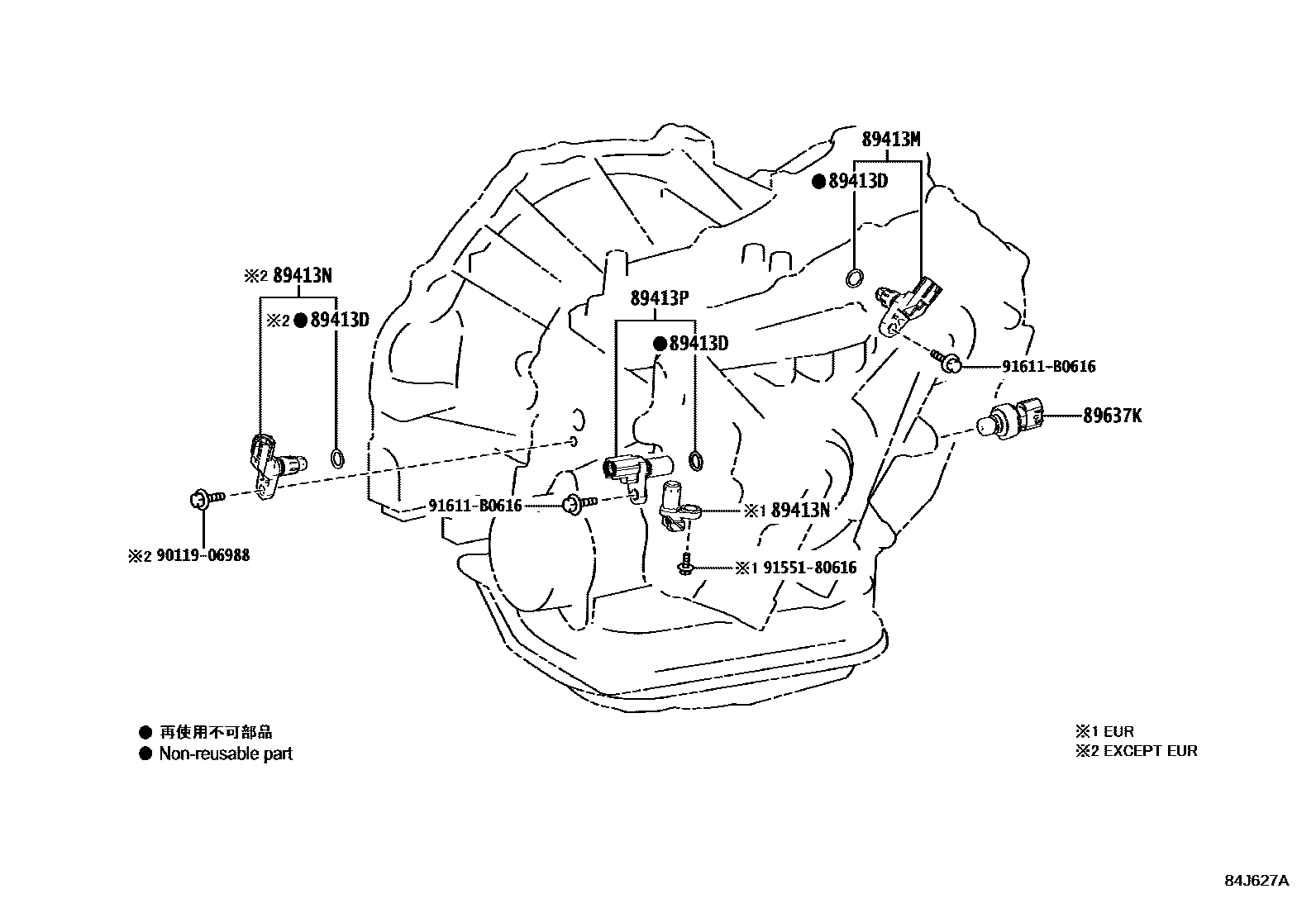

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K311,K313 0002 1K320

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR201901-202012

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12010iMZEA11..CVT..(D,G)..EUR202011

main89413-12020iZRE211..LHD..N;ZRE210..CVT..(G,N)..(EUR,GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)202301

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12010iMZEA11..CVT..TUR;MZEA11..CVT..N..EUR202301

main89413-12020iZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)202301

main89413-50020iZRE210..CVT..N..EUR201901-202301

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60021iZRE210..CVT..G..EUR;ZRE210..RHD..CVT..EUR201901-202012

89637KSENSOR, OIL PRESSURE

main89637-12040iMZEA11..CVT..N202011-202301

main89637-63010iZRE211..G;ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..RHD..CVT..D..GEN;ZRE210..LHD..CVT..D..EUR201901

9011906988

main90119-06988

9155180616

main91551-80616

91611B0616

main91611-B0616

8 parts on this diagram · 2 diagrams in section
