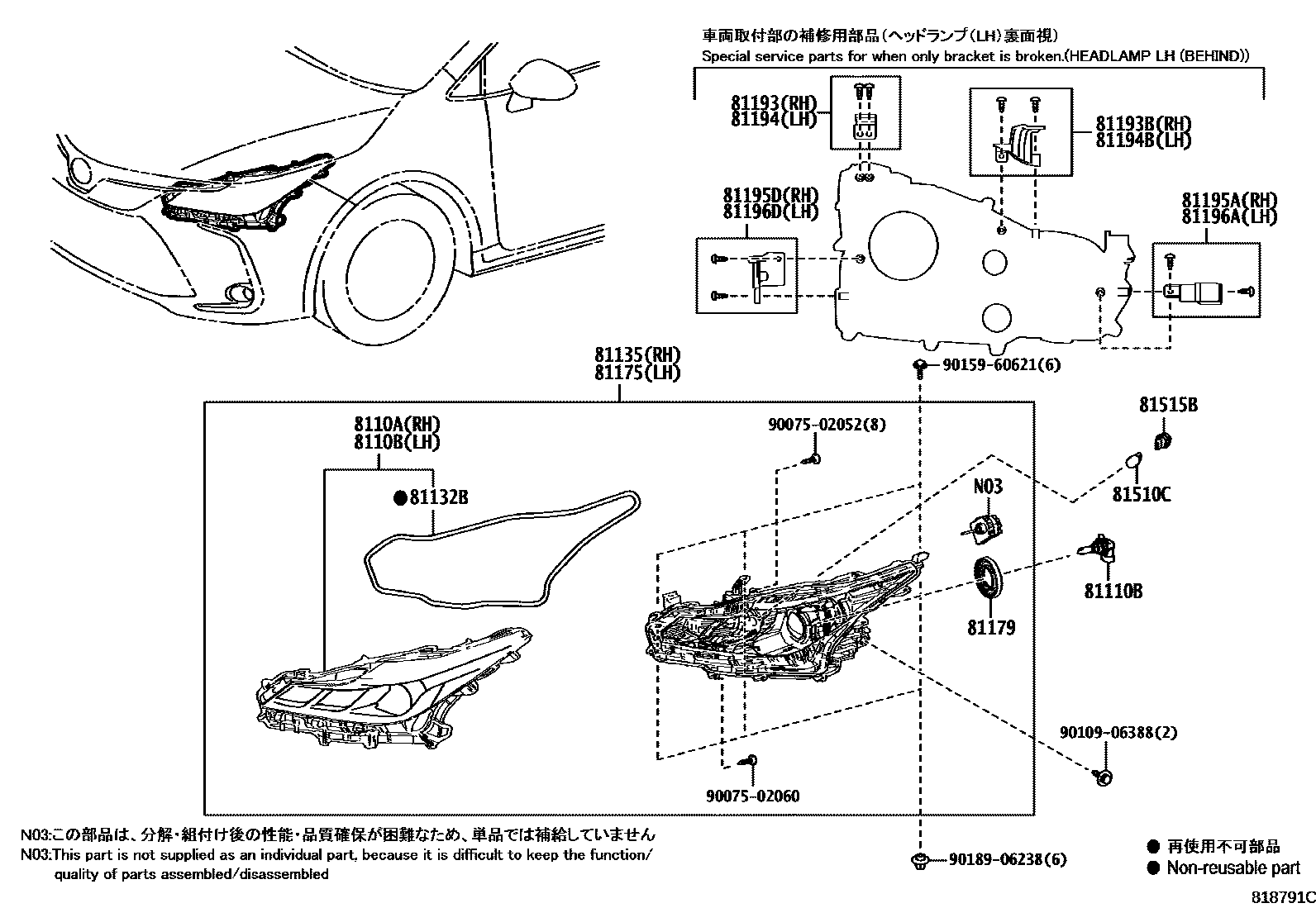

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-02T30iZRE21#,ZWE211..D,N201901-201909

main8110A-02T31iZWE219..D,N;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)202301

main8110A-02T50iZRE21#,ZWE211..G; ZRE21#,ZWE211..LHD..N..(EUR,GEN); ZRE210..RHD;ZRE210,ZWE211..N..EUR201901-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main8110A-02T51supersedes 8110A-02T31iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN); MZEA11..RHD;ZWE211,213..N..EUR; ZRE211..RHD;ZRE210..6F..N..GEN;ZWE211,213..LHD..N..(EUR,GEN)201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-02T30iZRE21#,ZWE211..D,N201901-201909

main8110B-02T31iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201909-202301

main8110B-02T50iZRE21#,ZWE211..G; ZRE21#,ZWE211..LHD..N..(EUR,GEN); ZRE210..RHD;ZRE210,ZWE211..N..EUR201901-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main8110B-02T51supersedes 8110B-02T31iZRE210..G..EUR; ZRE210..RHD..EUR201909-202012

HEADLAMP-LED & WITH(*AHB)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

12V 55W,HALOGEN

81132BGASKET, HEADLAMP LENS

main81132-02T30×2iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81135UNIT ASSY, HEADLAMP, RH

main81130-02T30iZRE21#,ZWE211..LHD..(D,N)201901-201909

main81130-02T31iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211,ZWE219..LHD..(D,N);ZRE210..LHD..CVT..(D,N)..(GEN,RUS)202301

main81130-02T41iZRE210,ZWE219..RHD..CVT..N202301

main81145-02T50iZRE21#,ZWE211..G; ZRE21#,ZWE211..LHD..N..(EUR,GEN); ZRE210,ZWE211..LHD..N..EUR201901-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main81145-02T51iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN); ZRE210..LHD..6F..N..GEN;ZWE211,213..LHD..N..(EUR,GEN); ZWE211,213..LHD..N..EUR201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main81145-02T60supersedes 81130-02T40iZRE210,ZWE211..RHD201901-201909

HEADLAMP-LED & WITH(*AHB)

main81145-02T61iZRE210..RHD..CVT..N; ZWE219..RHD202301

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

81175UNIT ASSY, HEADLAMP, LH

main81170-02T30iZRE21#,ZWE211..LHD..(D,N)201901-201909

main81170-02T31iZRE210..6F..N..RUS;ZWE211,213..LHD..N;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..LHD..6F..(GCC,GEN)201909

main81170-02T41iZRE210,ZWE219..RHD..CVT..N202301

main81185-02T50iZRE21#,ZWE211..G; ZRE21#,ZWE211..LHD..N..(EUR,GEN); ZRE210,ZWE211..LHD..N..EUR201901-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main81185-02T51iMZEA11,ZRE210..N..EUR; MZEA11,ZRE210..N..EUR;ZRE21#..LHD..CVT..N..GEN; ZRE210..G..RUS201909-202301

HEADLAMP-LED; HEADLAMP-LED & WITH(*AHB)

main81185-02T60supersedes 81170-02T40iZRE210,ZWE211..RHD201901-201909

HEADLAMP-LED & WITH(*AHB)

main81185-02T61supersedes 81170-02T41iZRE210..RHD..CVT..N202001-202301

HEADLAMP-LED

81179COVER, HEADLAMP SOCKET

main90075-65006×2iZRE210..RHD..EUR201901-202012

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-02310iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-02330iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-02310iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-02330iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-02320iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81193-02300iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-02320iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81194-02300iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE210..RHD..EUR201901-202012

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZRE210..RHD..EUR201901-202012

9007502052

main90075-02052

9007502060

main90075-02060

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

22 parts on this diagram · 2 diagrams in section
