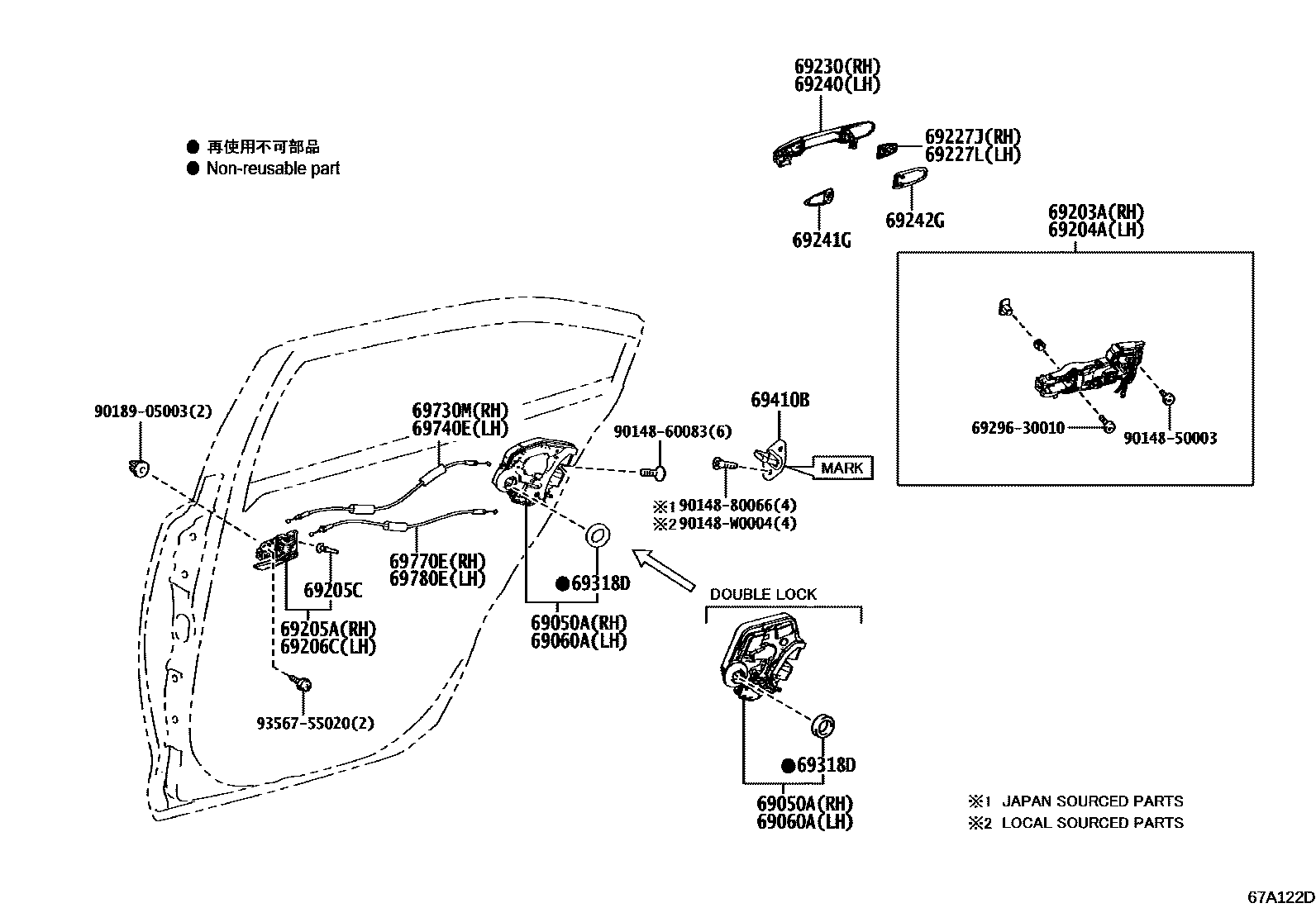

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)
STARTING SYSTEM-PUSH START SWITCH
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
UNITED KINGDOM SPEC
GERMANY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
main69050-02610iZRE210..N..EUR;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..GEN;MZEA11,ZRE211..LHD..(D,N)202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
STARTING SYSTEM-PUSH START SWITCH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-W/O(SMART ENTRY), W(PUSH START SWITCH)
UNITED KINGDOM SPEC
GERMANY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
main69060-02610iZRE210..N..EUR;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..GEN;MZEA11,ZRE211..LHD..(D,N)202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
ENTRY GRADE,FROMAGE,TRIM0#
FROMAGE,TRIM0#
DOOR INSIDE HANDLE-MATERIAL COLOR,FROMAGE,TRIM0#
LT.GRAY,TRIM1#
DOOR INSIDE HANDLE-MATERIAL COLOR,BLACK,TRIM2#
BLACK,TRIM2#
ENTRY GRADE,BLACK,TRIM2#
main69205-02370-A0iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
DOOR INSIDE HANDLE-PLATING,FROMAGE,TRIM0#
FROMAGE,TRIM0#
DOOR INSIDE HANDLE-PLATING,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
main69205-02370-C0iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301
BLACK,TRIM2#
main69205-02370-C0iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
DOOR INSIDE HANDLE-PLATING,BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DOOR INSIDE HANDLE-MATERIAL COLOR,FROMAGE,TRIM0#
FROMAGE,TRIM0#
ENTRY GRADE,FROMAGE,TRIM0#
LT.GRAY,TRIM1#
DOOR INSIDE HANDLE-MATERIAL COLOR,BLACK,TRIM2#
ENTRY GRADE,BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
DOOR INSIDE HANDLE-PLATING,FROMAGE,TRIM0#
main69206-02370-B1iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
LT.GRAY,TRIM1#
main69206-02370-B1iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
DOOR INSIDE HANDLE-PLATING,LT.GRAY,TRIM1#
main69206-02370-C0iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
DOOR INSIDE HANDLE-PLATING,BLACK,TRIM2#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-0D090iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202310
MARK 2
main69410-0H020iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
(L),NO MARK
(L)
main69410-20110iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901-202301
(J)
main69410-20110iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
(J),NO MARK
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69770-02480iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main69770-02480iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
GERMANY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
UNITED KINGDOM SPEC
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69770-02480iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & SENSOR)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
GERMANY SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
UNITED KINGDOM SPEC
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148W0004
main90148-W0004
9018905003
main90189-05003
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
