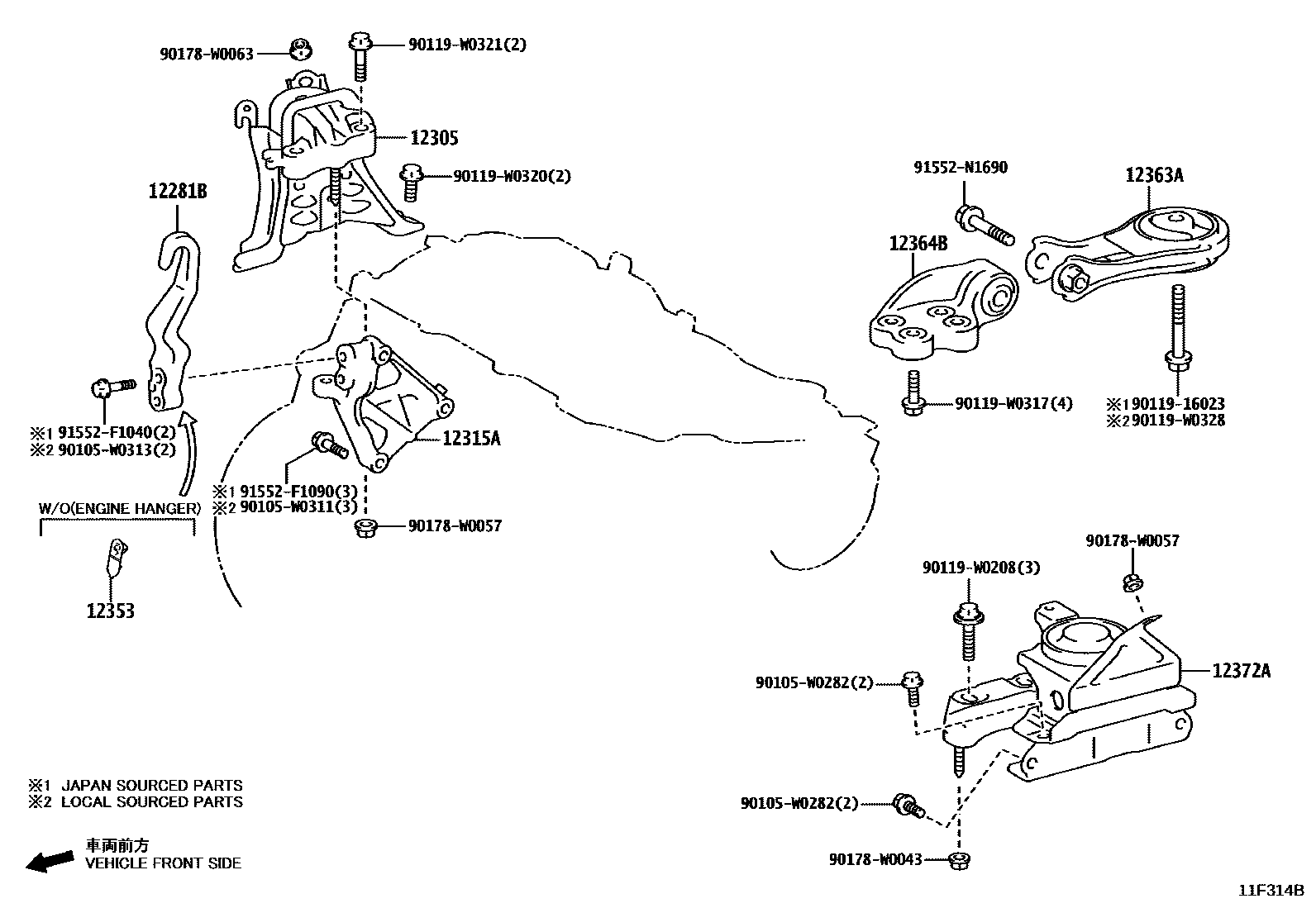

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T331i2ZRFXE..ZWE211201901-201906

sub12305-0T332

main12305-0T332i2ZRFXE..ZWE211,213201907

main12305-0T371i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main12305-0T420i2ZRFXE..ZWE219202301

main12305-F3030iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202011-202301

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main12315-37070i2ZRFXE..ZWE219202301

main12315-F3010iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011-202301

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

12363AROD, ENGINE MOVING CONTROL

main12363-0T060i2ZRFXE..ZWE219202301

main12363-0T070i1ZRFAE..ZRE210..6F..G;1ZRFAE..ZRE210..RHD..6F201901-202301

main12363-0T130i2ZRFE..ZRE211..LHD..N;1ZRFE..ZRE210..LHD..CVT..D;1ZR#..ZRE210..CVT..(G,N)..(EUR,GEN,RUS)201901-202301

main12363-0T140i2ZRFXE..ZWE211,213201901

main12363-F3010iM15AFKS..MZEA11..CVT..TUR;M15AFKS..MZEA11..CVT..N..EUR202011

main12363-F3020iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F202302

main12363-F3040iM15AFKS..MZEA11..6F..EUR202011-202502

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T070i1ZRFE..ZRE210..LHD..CVT..D;1ZRFAE,2ZRFE..ZRE21#..LHD..CVT..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS)201901-202301

main12364-0T080i1ZRFAE..ZRE210..6F..G;1ZRFAE..ZRE210..RHD..6F201901-202301

main12364-0T090i2ZRFXE..ZWE219202301

main12364-F3010iM15AFKS..MZEA11..CVT..TUR;M15AFKS..MZEA11..CVT..N..EUR202011

main12364-F3020iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F202302

main12364-F3040iM15AFKS..MZEA11..LHD..6F..(D,N)202011-202502

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T571i2ZRFXE..ZWE211,213201901

main12372-0T610i1ZRFAE..ZRE210..6F..N;1ZRFE..ZRE210..6F..D..RUS201901-202301

main12372-0T620i1ZRFAE..ZRE210..CVT..G;1ZRFAE..ZRE210..RHD..CVT201901-202301

main12372-0T680i2ZRFXE..ZWE219202301

main12372-F3020iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F202011-202301

main12372-F3060iM15AFKS..MZEA11..CVT..TUR;M15AFKS..MZEA11..CVT..N..EUR202011-202301

90105W0282

main90105-W0282

90105W0311

main90105-W0311

90105W0313

main90105-W0313

9011916023

main90119-16023

90119W0208

main90119-W0208

90119W0317

main90119-W0317

90119W0320

main90119-W0320

90119W0321

main90119-W0321

90119W0328

main90119-W0328

90178W0043

main90178-W0043

90178W0057

main90178-W0057

90178W0063

main90178-W0063

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

22 parts on this diagram · 6 diagrams in section
