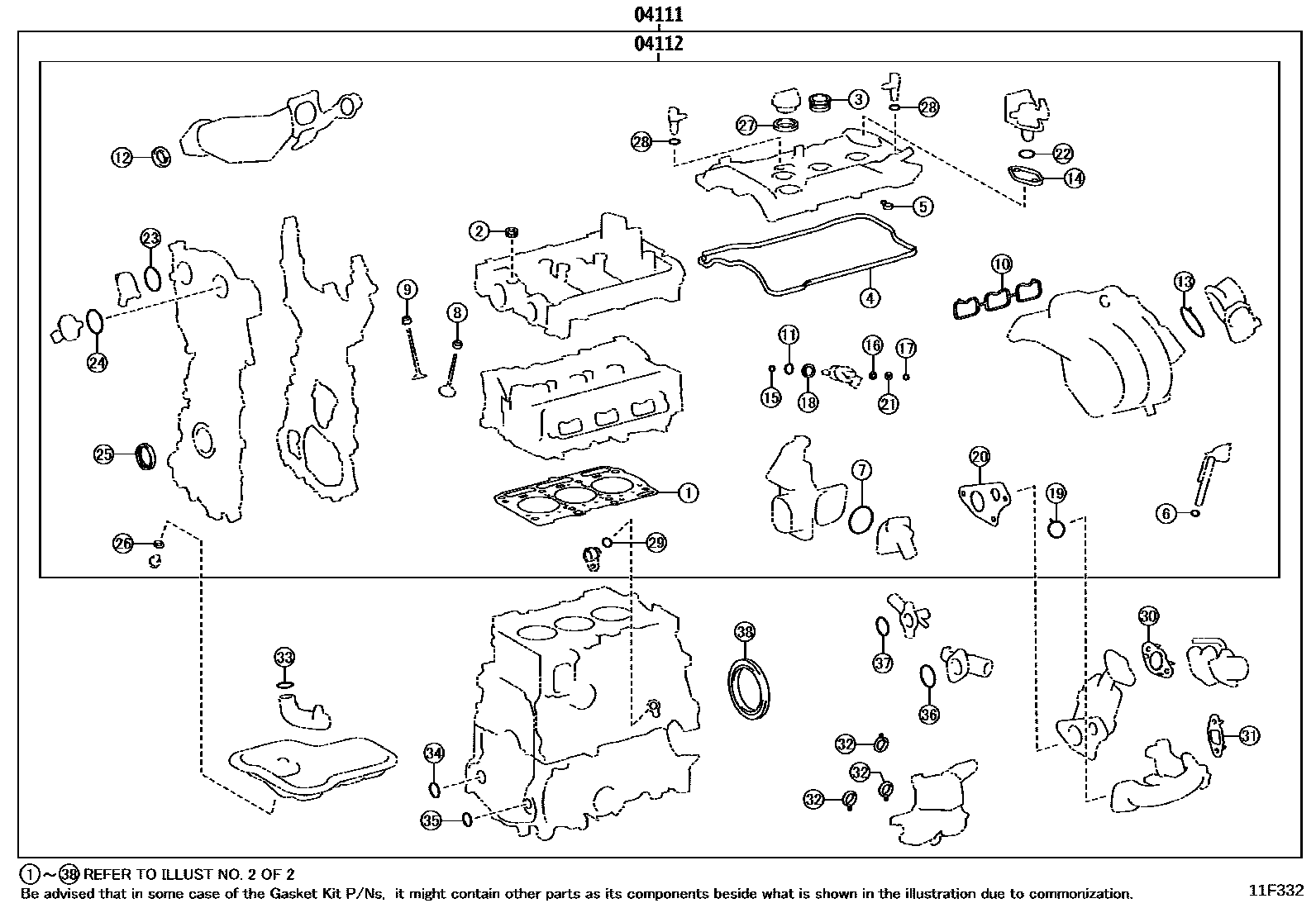

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T067i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202110

main04111-0T069i1ZRFAE..ZRE210..N202110-202301

main04111-0T085i1ZRFE,2ZRFE..ZRE21#201901-202110

sub04111-0T087

main04111-0T087i1ZRFE..ZRE210..D..RUS;2ZRFE..ZRE211..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202110-202301

main04111-0T281i2ZRFXE..ZWE211201901-202110

main04111-0T282i2ZRFXE..ZWE211..EUR202006-202110

main04111-0T283i2ZRFXE..ZWE211,213202110

main04111-F3020iM15AFKS..MZEA11202011-202110

sub04111-F3021

main04111-F3021iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202110-202301

main04111-F3060iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T015i1ZRFE,2ZRFE..ZRE21#201901-202110

sub04112-0T017

main04112-0T017i1ZRFE..ZRE210..D..RUS;2ZRFE..ZRE211..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202110-202301

main04112-0T066i1ZRFAE..ZRE210..LHD..(D,N)201901-202110

main04112-0T068i1ZRFAE..ZRE210..N202110-202301

main04112-0T231i2ZRFXE..ZWE211201901-202110

sub04112-0T233

main04112-0T232i2ZRFXE..ZWE211..EUR202006-202110

sub04112-0T233

main04112-0T233i2ZRFXE..ZWE219202110

main04112-F3020iM15AFKS..MZEA11202011-202110

main04112-F3021iM15AFKS..MZEA11..LHD..(D,N)202110-202301

main04112-F3060iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

2 parts on this diagram · 8 diagrams in section
