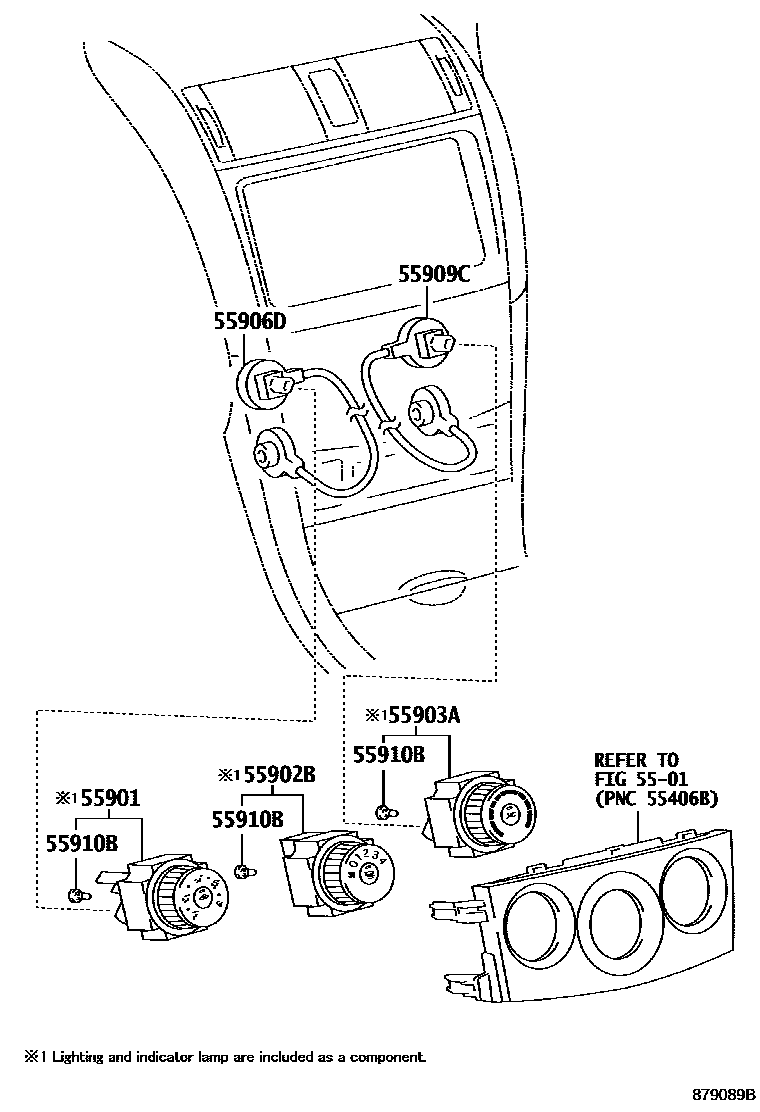

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55901BASE SUB-ASSY, HEATER CONTROL
COLD AREA SPEC&ADDITIONAL HEATER-STOVE HEATER&AUTO AIR CONDITIONER(SINGLE MODE); SUB COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)
AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO; SUB COLD AREA SPEC&AIR CONDITIONER-AUTO
55902BCONTROL SUB-ASSY, HEATER
main55902-12060iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..LHD..N; ZRE151,ZZE150..RHD..N200611-200812
COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE); SUB COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)
AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO; SUB COLD AREA SPEC&AIR CONDITIONER-AUTO
COLD AREA SPEC; SUB COLD AREA SPEC
55903ACONTROL SUB-ASSY, HEATER, NO.3
COLD AREA SPEC
SUB COLD AREA SPEC&WITHOUT(AIR CONDITIONER); WITHOUT(AIR CONDITIONER)
COLD AREA SPEC; COLD AREA SPEC&WITH(EXHAUST HEATER & PTC HEATER)&AIR CONDITIONER-AUTO; COLD AREA SPEC&WITH(PTC HEATER)&AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO; SUB COLD AREA SPEC&AIR CONDITIONER-AUTO
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
main55906-26060iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N; NDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM); NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004
AIR CONDITIONER-AUTO(SINGLE MODE); COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE); SUB COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-26080iADE150,ZZE150..LHD..N;NDE150,ZRE151..LHD..(5F,5FS)..N; ADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N; ADE150,ZZE150;NDE150,ZRE151..5F,5FS; ADE150..LHD200611-200901
ADDITIONAL HEATER-W/O&AUTO AIR CONDITIONER(SINGLE MODE); AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&ADDITIONAL HEATER-STOVE HEATER&AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE); SUB COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)
55910BBULB, HEATER CONTROL
main90010-01122×3iNDE150,ZRE151,ZZE150; NDE150,ZRE151,ZZE150..LHD..N; ZRE151,ZZE150..RHD..N200611-200812
COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE); SUB COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)
7 parts on this diagram · 5 diagrams in section
