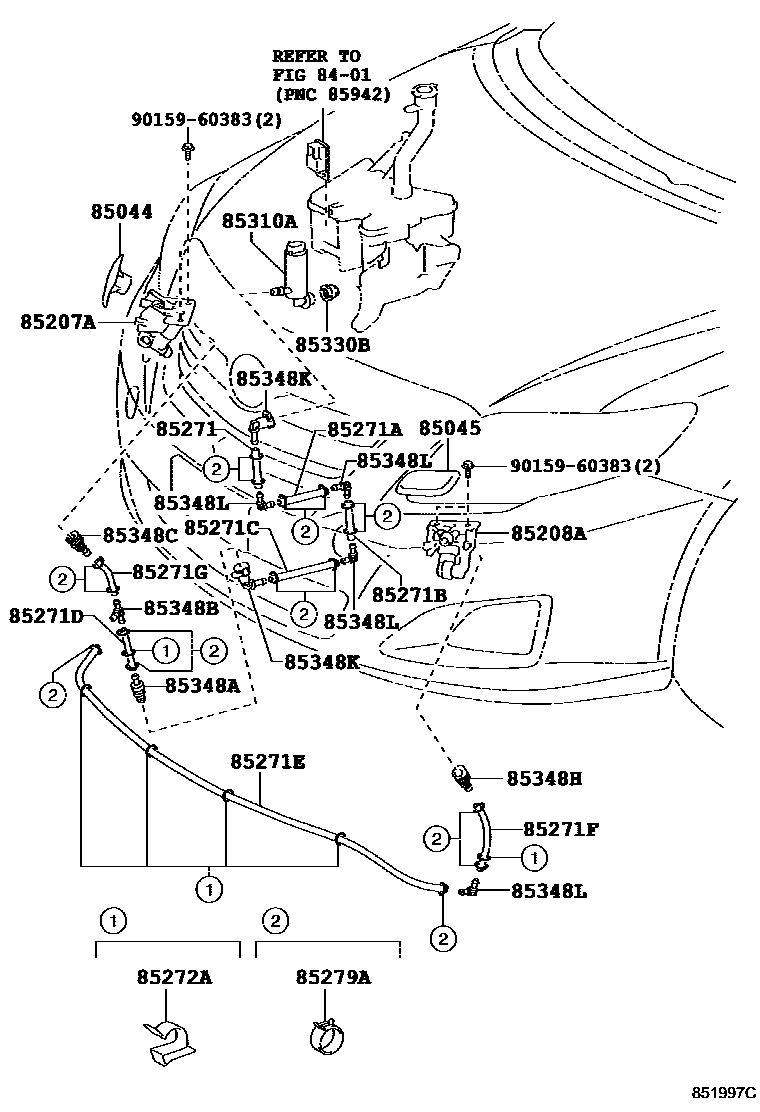

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040
HEAD LAMP CLEANER-WITH,SILVER ME.,1F7
HEAD LAMP CLEANER-WITH,GRAY ME.,1G3
HEAD LAMP CLEANER-WITH,BLACK MC.,209
HEAD LAMP CLEANER-WITH,SUPER RED II,3E5
HEAD LAMP CLEANER-WITH,RED M.M.,3R3
HEAD LAMP CLEANER-WITH,LT.BLUE M.M.,8S1
HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8S6
HEAD LAMP CLEANER-WITH,DK.BLUE ME.,8T8
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040
HEAD LAMP CLEANER-WITH,SILVER ME.,1F7
HEAD LAMP CLEANER-WITH,GRAY ME.,1G3
HEAD LAMP CLEANER-WITH,BLACK MC.,209
HEAD LAMP CLEANER-WITH,SUPER RED II,3E5
HEAD LAMP CLEANER-WITH,RED M.M.,3R3
HEAD LAMP CLEANER-WITH,LT.BLUE M.M.,8S1
HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8S6
HEAD LAMP CLEANER-WITH,DK.BLUE ME.,8T8
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEAD LAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEAD LAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=90,HEAD LAMP CLEANER-WITH
L=154,HEAD LAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
L=90,HEAD LAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=90,HEAD LAMP CLEANER-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
L=90,HEAD LAMP CLEANER-WITH
85271DHOSE, HEADLAMP CLEANER, NO.5
*H,L=71,HEADLAMP CLEANER-WITH
L=90,HEAD LAMP CLEANER-WITH
85271EHOSE, HEADLAMP CLEANER, NO.6
*H,L=1702,HEADLAMP CLEANER-WITH
L=1380,HEAD LAMP CLEANER-WITH
85271FHOSE, HEADLAMP CLEANER, NO.7
L=90,HEAD LAMP CLEANER-WITH
85271GHOSE, HEAD LAMP
*H,L=188,HEADLAMP CLEANER-WITH
L=90,HEAD LAMP CLEANER-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEAD LAMP CLEANER-WITH
85279AJOINT, HEADLAMP CLEANER HOSE
HEAD LAMP CLEANER-WITH
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
HEAD LAMP CLEANER-WITH
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEAD LAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEAD LAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEAD LAMP CLEANER-WITH
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEAD LAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEAD LAMP CLEANER-WITH
9015960383
main90159-60383
24 parts on this diagram · 3 diagrams in section
