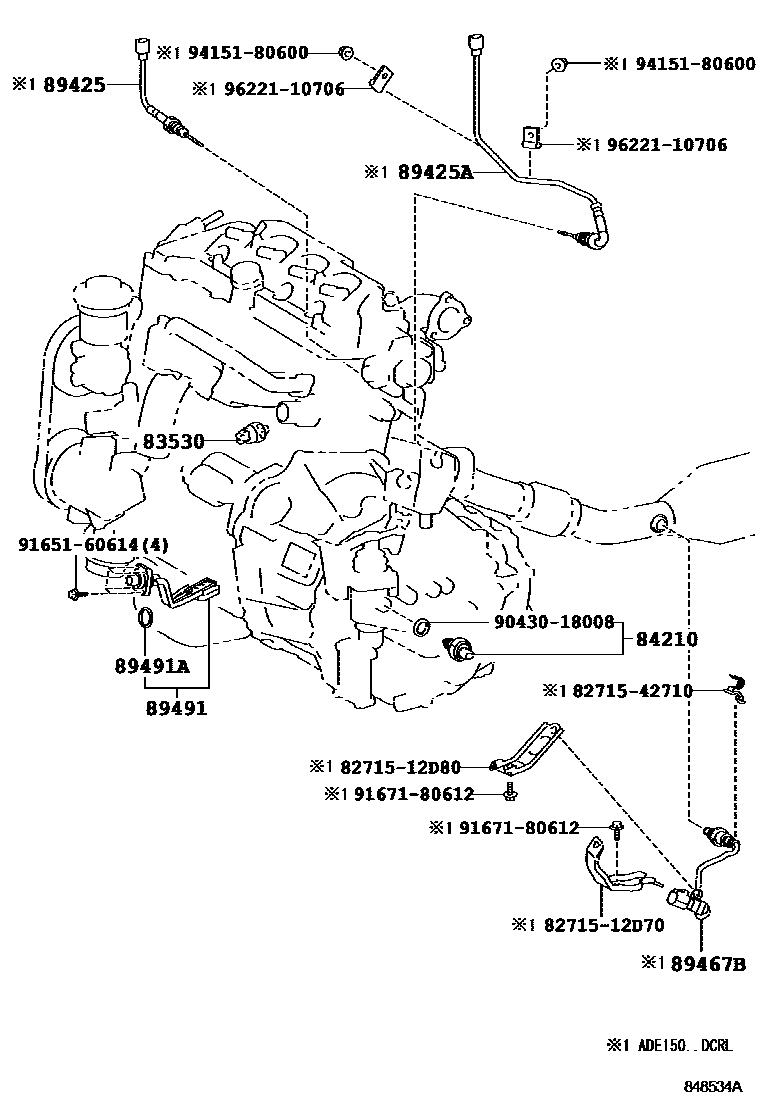

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE & TRANSMISSION 0009 1ENGINE ROOM 0011 1ENGINE ROOM 0013 1ENGINE ROOM RELAY BLOCK 0015 1ENGINE ROOM RELAY BLOCK 0017 1COWL 0018 1COWL 0019 1INSTRUMENT PANEL 0020 1INSTRUMENT PANEL 0021 1STEERING 0022 1STEERING 0023 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRE151,ZZE150200611-201304

VALEO

main83530-0E010iNRE150,ZRE151201110-201304

(L),DENSO

main83530-28010iNDE150200611-201304

DENSO

main83530-28020iNRE150,ZRE151200611-201004

DENSO

main83530-28020iNRE150,ZRE151201004-201304

(J),DENSO

main83530-60010iNDE150;ADE150..DCRL200611-201304

YAZAKI

main83530-60020iNRE150,ZRE151200611-201304

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNDE150,NRE150,ZRE151..MTM200611-201204

sub84210-52050

main84210-52010iNDE150,ZRE151,ZZE150..5F200611-200812

main84210-52050iNDE150,NRE150,ZRE151..MTM201205-201304

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20360iADE150..DCRL200611-200901

main89425-20380iADE150200901-201002

main89425-52010iNDE150..DCRL200812-200911

sub89425-52H00

main89425-52011iNDE150200911-201304

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20370iADE150..DCRL200611-200901

main89425-20390iADE150200901-201002

main89425-52020iNDE150..DCRL200812-200911

sub89425-52H00

main89425-52021iNDE150..DCRL200911-201304

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE150201107-201304

(L)

main89467-12020iADE150..DCRL200611-200901

main89467-12130iNDE150201107-201304

(J)

main89467-12170iNDE150200812-201106

sub89467-12130

main89467-20100iADE150200901-201002

main89467-52070iNRE150200812-201101

sub89467-52090

main89467-52090iNRE150201102-201304

89491SENSOR, ENGINE OIL LEVEL

main89491-12030iNDE150200611-200812

main89491-20120iADE150200611-201002

main89491-52030iNDE150..DCR200812-201110

sub89491-52031

main89491-52040iNDE150..DCRL200812-201002

main89491-52050iNDE150201110-201112

sub89491-52051

main89491-52051iNDE150201112-201304

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iNDE150200611-200901

main90430-36005iNDE150200812-201304

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

9043018008

main90430-18008

9165160614

main91651-60614

9167180612

main91671-80612

9415180600

main94151-80600

9622110706

main96221-10706

15 parts on this diagram · 19 diagrams in section
