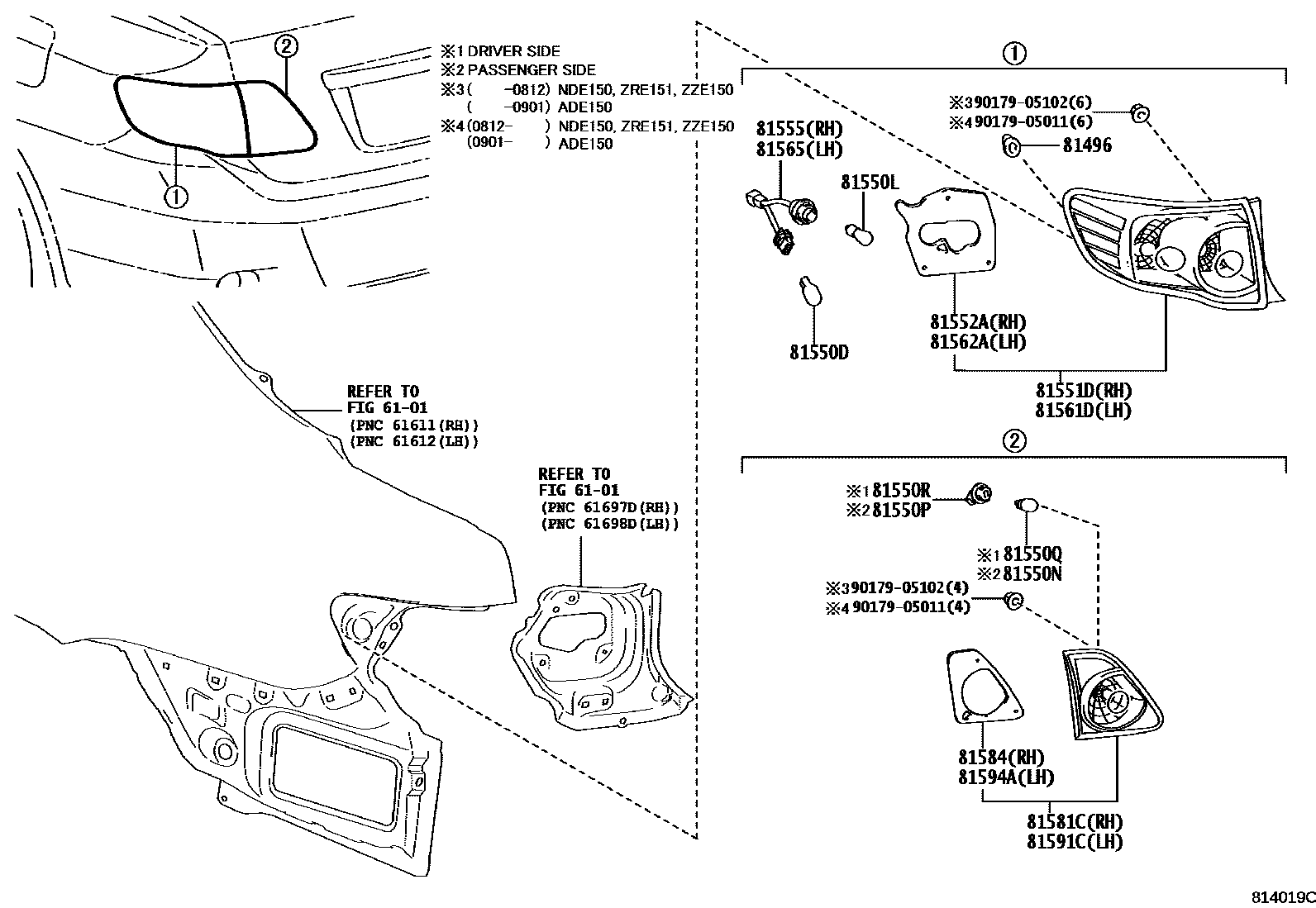

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNDE150,NRE150,ZRE151201004-201304

main99132-11210iNDE150,ZRE151,ZZE150200611-201004

81550NBULB, BACK UP LAMP

main90981-11059iNDE150,ZRE151,ZZE150200611-201304

81550PSOCKET, BACK UP LAMP

main90075-99005iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iNDE150,ZRE151,ZZE150200611-201304

81550RSOCKET, REAR FOG LAMP

main90075-60042iNDE150,ZRE151,ZZE150200611-201304

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12A10iNDE150,ZRE151,ZZE150200611-201004

main81551-12A30iNDE150,NRE150,ZRE151201004-201304

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-12A10iNDE150,ZRE151,ZZE150200611-201004

main81554-12A30iNDE150,NRE150,ZRE151201004-201304

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12A10iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201004

main81555-12A30iNDE150,NRE150,ZRE151201004-201304

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12A10iNDE150,ZRE151,ZZE150200611-201004

main81561-12A30iNDE150,NRE150,ZRE151201004-201304

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-12A10iNDE150,ZRE151,ZZE150200611-201004

main81554-12A30iNDE150,NRE150,ZRE151201004-201304

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-12A10iNDE150,ZRE151,ZZE150200611-201004

main81555-12A30iNDE150,NRE150,ZRE151201004-201304

81581CLENS AND BODY, REAR LAMP, RH

main81581-12100iNDE150,ZRE151,ZZE150..RHD200611-201002

main81581-12110iNDE150,ZRE151,ZZE150..LHD200611-201004

main81581-12180iNDE150,NRE150,ZRE151201004-201304

81584PACKING, REAR LAMP RH

main81584-12100iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200611-201002

main81584-12110iNDE150,ZRE151,ZZE150..LHD200611-201004

main81584-12180iNDE150,NRE150,ZRE151201004-201304

81591CLENS, REAR LAMP, LH

main81591-12100iADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)200611-201004

main81591-12110iNDE150,ZRE151,ZZE150..RHD200611-201002

main81591-12150iNDE150,NRE150,ZRE151201004-201304

81594AGASKET, REAR LAMP LH

main81594-12100iNDE150,ZRE151,ZZE150..LHD200611-201004

main81594-12110iNDE150,ZRE151,ZZE150..RHD200611-201002

main81594-12180iNDE150,NRE150,ZRE151201004-201304

9017905011

main90179-05011

9017905102

main90179-05102

20 parts on this diagram · 2 diagrams in section
