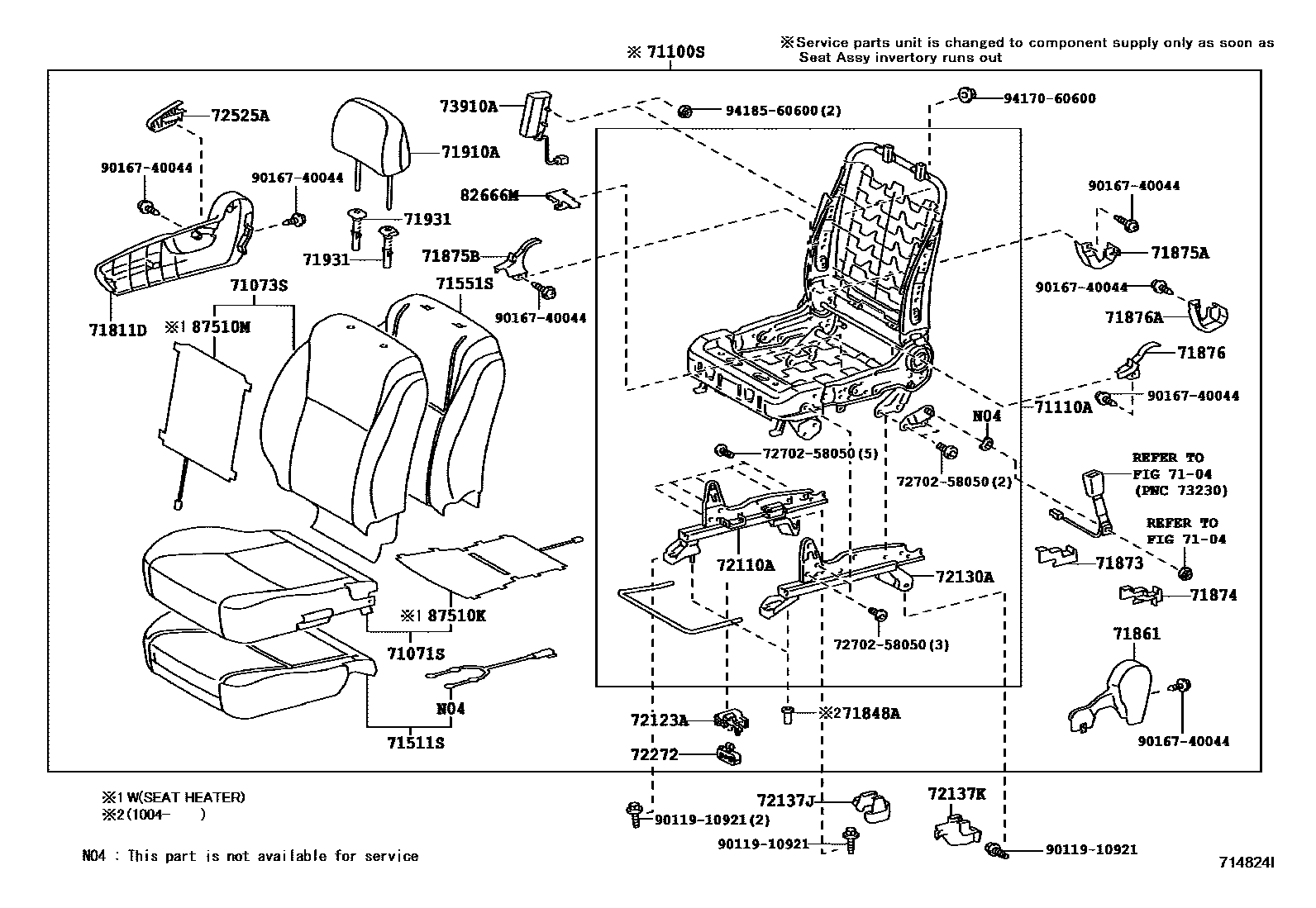

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT 0003 1RH SEAT 0004 1LH SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-12J20-B1iNDE150,NRE150,ZRE151..RHD..D200909-200911

DARK GRAY,TRIM1#

main71071-12J80-B1iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200812-201004

DARK GRAY,TRIM1#

main71071-12J80-E1iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200812-201004

GREGE,TRIM4#

main71071-12J60-B1supersedes 71071-12J40-B1iNDE150,ZRE151,ZZE150..LHD..D200611-200812

COLD AREA SPEC,DARK GRAY,TRIM1#

main71071-12K20-B1supersedes 71071-12K00-B1iNDE150,ZRE151,ZZE150..LHD..N200611-200812

COLD AREA SPEC,DARK GRAY,TRIM1#

main71071-12K20-E1supersedes 71071-12K00-E1iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

COLD AREA SPEC,GREGE,TRIM4#

main71071-12Q70-B0supersedes 71071-12Q60-B0iNDE150,NRE150,ZRE151..D201004-201103

COLD AREA SPEC,DK.GRAY,TRIM1#

main71071-12Q70-B1supersedes 71071-12Q60-B1iNDE150,NRE150,ZRE151..D201103-201304

COLD AREA SPEC,DARK GRAY,TRIM1#

main71071-12T50-B1supersedes 71071-12T40-B1iNDE150,NRE150,ZRE151..N201004-201103

COLD AREA SPEC,DK.GRAY,TRIM1#

main71071-12T50-B2supersedes 71071-12T40-B2iNDE150,NRE150,ZRE151..N201103-201304

COLD AREA SPEC,DARK GRAY,TRIM1#

main71071-12T50-E2supersedes 71071-12T40-E2iNDE150,NRE150,ZRE151..N201004-201103

COLD AREA SPEC,GREGE,TRIM4#

main71071-12T50-E3supersedes 71071-12T40-E3iNDE150,NRE150,ZRE151..N201103-201304

COLD AREA SPEC,GREGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-12G30-B2iNDE150,ZRE151,ZZE150..RHD..D200611-200812

DK.GRAY,TRIM1#

main71073-12G70-B2iZRE151,ZZE150..RHD..N200611-200812

DK.GRAY,TRIM1#

main71073-12G70-E3iZRE151,ZZE150..RHD..N200611-200812

GREGE,TRIM4#

main71073-12J10-B2supersedes 71073-12G90-B2iNDE150,ZRE151,ZZE150..LHD..N200611-200812

COLD AREA SPEC,DK.GRAY,TRIM1#

main71073-12J10-E3supersedes 71073-12G90-E3iADE150..LHD200611-200901

COLD AREA SPEC,GREGE,TRIM4#

main71073-12J50-B2supersedes 71073-12K50-B2iNDE150,ZRE151,ZZE150..LHD..D200611-200812

COLD AREA SPEC,DK.GRAY,TRIM1#

main71073-12Q90-B0supersedes 71073-12Q80-B0iNDE150,NRE150,ZRE151..D201004-201103

COLD AREA SPEC,DK.GRAY,TRIM1#

main71073-12Q90-B1supersedes 71073-12Q80-B1iNDE150,NRE150,ZRE151..D201103-201202

COLD AREA SPEC,DARK GRAY,TRIM1#

main71073-12Q90-B2supersedes 71073-12Q80-B2iNDE150,NRE150,ZRE151..D201202-201304

COLD AREA SPEC,DARK GRAY,TRIM1#

main71073-12U40-B1supersedes 71073-12U30-B1iNDE150,NRE150,ZRE151..N201004-201103

COLD AREA SPEC,DK.GRAY,TRIM1#

main71073-12U40-B2supersedes 71073-12U30-B2iNDE150,NRE150,ZRE151..N201103-201202

COLD AREA SPEC,DARK GRAY,TRIM1#

main71073-12U40-B3supersedes 71073-12U30-B3iNDE150,ZRE151..N201202-201304

COLD AREA SPEC,DARK GRAY,TRIM1#

main71073-12U40-E2supersedes 71073-12U30-E2iNDE150,NRE150,ZRE151..N201004-201103

COLD AREA SPEC,GREGE,TRIM4#

main71073-12U40-E3supersedes 71073-12U30-E3iNDE150,NRE150,ZRE151..N201103-201202

COLD AREA SPEC,GREGE,TRIM4#

main71073-12U40-E4supersedes 71073-12U30-E4iNDE150,ZRE151..N201202-201304

COLD AREA SPEC,GREGE,TRIM4#

71100SSEAT ASSY, FRONT RH

main71100-12M50-B3iNDE150,ZRE151,ZZE150..RHD..D200611-200702

DK.GRAY,TRIM1#

main71100-12M50-B4iNDE150,ZRE151,ZZE150..RHD..D200702-200812

DK.GRAY,TRIM1#

main71100-12M70-B3iADE150,ZRE151,ZZE150..RHD..N200611-200702

DK.GRAY,TRIM1#

main71100-12M70-B4iZRE151,ZZE150..RHD..N200702-200812

DK.GRAY,TRIM1#

main71100-12M70-E4iADE150,ZRE151,ZZE150..RHD..N200611-200702

GREGE,TRIM4#

main71100-12M70-E5iZRE151,ZZE150..RHD..N200702-200812

GREGE,TRIM4#

main71100-1AA30-B2iNDE150,NRE150,ZRE151..N201004-201204

DK.GRAY,TRIM1#

main71100-1AA30-E2iNDE150,NRE150,ZRE151..N201004-201204

GREGE,TRIM4#

main71100-1AG20-B0iNDE150,NRE150,ZRE151..D201004-201204

DK.GRAY,TRIM1#

main71100-12L70-B3supersedes 71100-12L90-B4iNDE150,ZRE151,ZZE150..LHD..D200611-200702

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-12L70-B4supersedes 71100-12L90-B4iNDE150,NRE150,ZRE151..LHD..D200812-201004

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-12M10-B3supersedes 71100-12M30-B3iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200702

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-12M10-B4supersedes 71100-12M30-B4iNDE150,ZRE151,ZZE150..LHD..N200702-200812

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-12M10-E4supersedes 71100-12M30-E4iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200702

COLD AREA SPEC,GREGE,TRIM4#

main71100-12M10-E5supersedes 71100-12M30-E5iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

COLD AREA SPEC,GREGE,TRIM4#

main71100-1AA60-B2iNDE150..N201004-201106

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-1AA60-E2iNDE150,NRE150,ZRE151..N..(DCRL,HTWC)201004-201204

COLD AREA SPEC,GREGE,TRIM4#

main71100-1AA61-B0supersedes 71100-1AA32-B0iNDE150,ZRE151..N201205-201302

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-1AA61-E0supersedes 71100-1AA32-E0iNDE150,ZRE151..N201205-201302

COLD AREA SPEC,GREGE,TRIM4#

main71100-1AA62-B0supersedes 71100-1AA32-B0iNDE150,ZRE151..N201303-201304

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-1AA62-E0supersedes 71100-1AA32-E0iNDE150,ZRE151..N201303-201304

COLD AREA SPEC,GREGE,TRIM4#

main71100-1AG30-B0supersedes 71100-1AG22-B0iNDE150,NRE150,ZRE151..D..(DCRL,HTWC)201004-201204

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-1AG31-B0supersedes 71100-1AG22-B0iNDE150,NRE150,ZRE151..D201205-201302

COLD AREA SPEC,DK.GRAY,TRIM1#

main71100-1AG32-B0supersedes 71100-1AG22-B0iNDE150,NRE150,ZRE151..D201303-201304

COLD AREA SPEC,DK.GRAY,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-12120iNDE150,NRE150,ZRE151201004-201304

main71110-12140iADE150,NDE150,NRE150,ZRE151..RHD200909-200911

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-12030iNDE150,ZRE151,ZZE150..LHD200611-200812

main71511-12B10iADE150,NDE150,NRE150,ZRE151..RHD200911-201004

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12A50iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200611-200901

main71551-12A70iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200611-200901

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-12450-B0iADE150,NDE150,NRE150,ZRE151..RHD200909-200911

DK.GRAY,TRIM1#

main71811-12450-E0iADE150,NRE150,ZRE151..RHD..N200911-201004

GREGE,TRIM4#

main71811-12460-B0iNDE150,ZRE151,ZZE150..LHD200611-200812

DK.GRAY,TRIM1#

main71811-12460-E0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

GREGE,TRIM4#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-26010×2iNDE150,NRE150,ZRE151201004-201304

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-12300-B0iNDE150,ZRE151,ZZE150..RHD200611-200812

DK.GRAY,TRIM1#

main71861-12300-E0iADE150,NRE150,ZRE151..RHD..N200911-201004

GREGE,TRIM4#

main71861-12340-B0iADE150..LHD200611-200901

DK.GRAY,TRIM1#

main71861-12340-E0iADE150..LHD200611-200901

GREGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-12060×2iNDE150,NRE150,ZRE151201004-201304

main71873-53030×2iADE150,NDE150,ZRE151,ZZE150200611-200709

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-12060×2iNDE150,NRE150,ZRE151201004-201304

main71874-53010×2iADE150,NDE150,ZRE151,ZZE150200611-200709

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060×2iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200812-201004

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-12020-B0×2iADE150200611-200901

DK.GRAY,TRIM1#

main71875-12020-E0×2iADE150,NRE150,ZRE151..RHD..N200909-200911

GREGE,TRIM4#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-12020-B0×2iADE150200611-200901

DK.GRAY,TRIM1#

main71876-12020-E0×2iNDE150,ZRE151,ZZE150..N200611-200812

GREGE,TRIM4#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060×2iNDE150,ZRE151,ZZE150200611-200812

71910AHEADREST ASSY, FRONT SEAT

main71910-12B30-B3×2iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200812-201004

DARK GRAY,TRIM1#

main71910-12B30-B4×2iADE150,NDE150,ZRE151,ZZE150200611-200702

DARK GRAY,TRIM1#

main71910-12B30-E2×2iADE150,NRE150,ZRE151..RHD..N200909-200911

GREGE,TRIM4#

main71910-12B30-E3×2iADE150,NDE150,ZRE151,ZZE150..N200611-200702

GREGE,TRIM4#

main71910-12F40-B1×2iNDE150,NRE150,ZRE151201004-201304

DARK GRAY,TRIM1#

main71910-12F40-E1×2iNDE150,NRE150,ZRE151..N201004-201304

GREGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2iADE150,NDE150,NRE150,ZRE151..RHD200911-201004

W(LOCK),DK.GRAY,TRIM1#

main71930-44020-E0×2iADE150,NRE150,ZRE151..RHD..N200909-200911

W(LOCK),GREGE,TRIM4#

main71930-47010-B2×2iADE150,NDE150,ZRE151,ZZE150200611-200705

W(LOCK),DK.GRAY,TRIM1#

main71930-47010-E3×2iADE150,NDE150,ZRE151,ZZE150..N200611-200705

W(LOCK),GREGE,TRIM4#

main71931-47010-B2×2iADE150200611-200901

W/O(LOCK),DK.GRAY,TRIM1#

main71931-47010-E4×2iADE150,NRE150,ZRE151..RHD..N200909-200911

W/O(LOCK),GREGE,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-12200iADE150..LHD200611-200901

main72110-12210iADE150,NDE150,NRE150,ZRE151..RHD200911-201004

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-12140iNDE150,NRE150,ZRE151201004-201304

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-12790iNDE150,ZRE151,ZZE150..LHD200611-200812

main72130-12800iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200812-200909

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-12160-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

DK.GRAY

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-12130-B0iNDE150,ZRE151,ZZE150200611-200812

DK.GRAY

72272CLAMP, SEAT TRACK CONTROL CABLE

main72272-12020×2iNDE150,ZRE151,ZZE150200611-200812

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-42010-B0iNDE150,NRE150,ZRE151201004-201304

DK.GRAY,TRIM1#

main72525-42010-E1iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

GREGE,TRIM4#

main72525-42020-B0iADE150,NDE150,NRE150,ZRE151..RHD200911-201004

DK.GRAY,TRIM1#

main72525-42020-E1iADE150,NRE150,ZRE151..RHD..N200909-200911

GREGE,TRIM4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12040iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-200901

main73910-12041iNDE150,NRE150,ZRE151201303-201304

82666MHOLDER, CONNECTOR

main82666-12420iNDE150,ZRE151,ZZE150200611-200812

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-12170iNDE150,ZRE151,ZZE150..LHD200611-200812

COLD AREA SPEC

87510MHEATER ASSY, FRONT SEATBACK, RH

main87510-12210iNDE150,ZRE151,ZZE150..LHD200611-200812

COLD AREA SPEC

7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-58050

9011910921

main90119-10921

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

34 parts on this diagram · 4 diagrams in section
