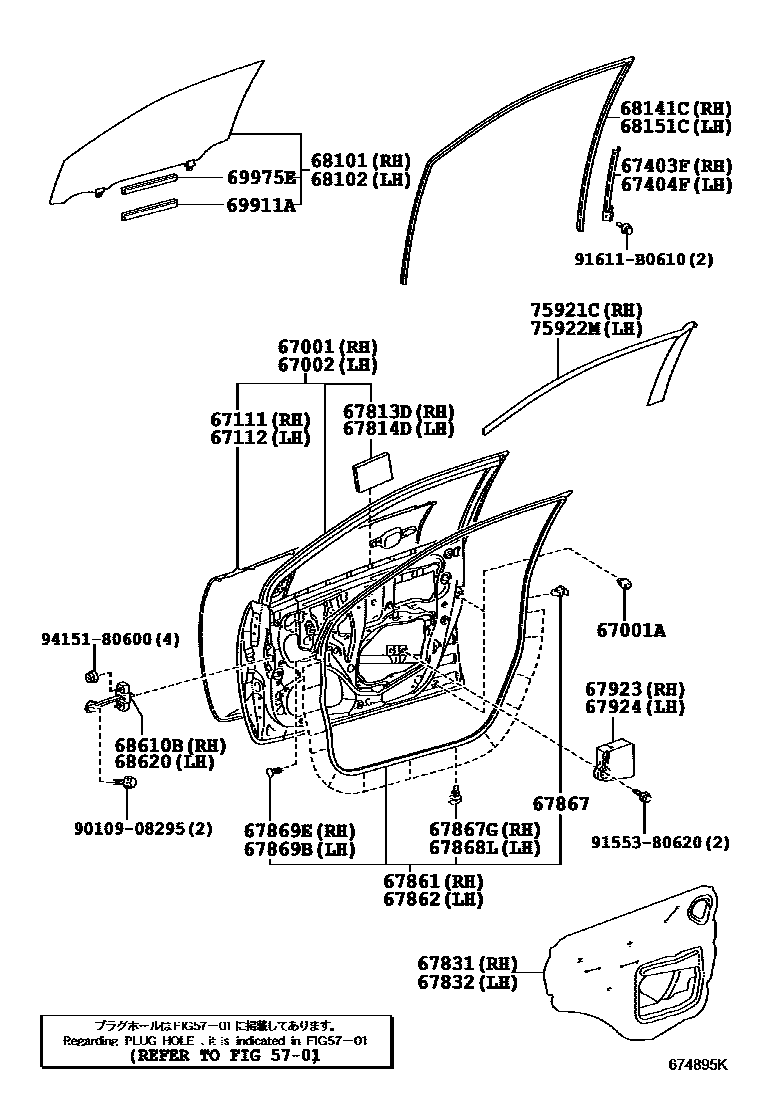

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12A30iADE150,NDE150,ZRE151,ZZE150200611-201304

main67001-12A31iADE150200812-200901

sub67001-12A30

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iADE150,NDE150,ZRE151,ZZE150200611-200806

main90541-09143iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200807-201304

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12A30iADE150,NDE150,ZRE151,ZZE150200611-201304

main67002-12A31iADE150200812-200901

sub67002-12A30

67111PANEL, FRONT DOOR, OUTER RH

main67111-12700iNDE150,NRE150,ZRE151200611-201304

67112PANEL, FRONT DOOR, OUTER LH

main67112-12690iADE150200611-201304

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12260iNDE150,ZRE151,ZZE150200611-201304

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12250iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

67813DSHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNDE150,ZRE151,ZZE150200611-201211

67814DSHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNDE150,ZRE151,ZZE150200611-201211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12670iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201202

sub67831-12671

main67831-12671iNDE150,NRE150,ZRE151201202-201304

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12450iADE150200611-201202

sub67832-12451

main67832-12451iNDE150,NRE150,ZRE151201202-201304

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A20iNDE150,ZRE151,ZZE150200611-201304

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A20iNDE150,ZRE151,ZZE150200611-201304

67867CLIP, DOOR WEATHERSTRIP

main90467-04034iNDE150,ZRE151,ZZE150200611-201304

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iNDE150,ZRE151,ZZE150200611-201304

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200611-201304

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNDE150,ZRE151,ZZE150200611-201304

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNDE150,ZRE151,ZZE150200611-201304

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-12040iNDE150,ZRE151,ZZE150200611-201304

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-12040iNDE150,ZRE151,ZZE150200611-201304

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12A80iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-200902

*UVCT,T=3.5,GREEN

sub68101-12A81

main68101-12A81iADE150,NDE150,NRE150,ZRE151200902-201106

*UVCT,T=3.5,GREEN

sub68101-12A82

main68101-12A82iNDE150,NRE150,ZRE151201107-201304

*UVCT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12A80iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-200902

*UVCT,T=3.5,GREEN

sub68102-12A81

main68102-12A81iNDE150,NRE150,ZRE151200902-201106

*UVCT,T=3.5,GREEN

sub68102-12A82

main68102-12A82iNDE150,NRE150,ZRE151201107-201304

*UVCT,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-12560iNDE150,ZRE151,ZZE150200611-201304

68151CRUN, FRONT DOOR GLASS, LH

main68151-12260iNDE150,ZRE151,ZZE150200611-201304

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12200iNDE150,ZRE151,ZZE150200611-201004

main68610-12201iNDE150,NRE150,ZRE151201004-201304

68620CHECK ASSY, FRONT DOOR, LH

main68610-12200iNDE150,ZRE151,ZZE150200611-201004

main68610-12201iNDE150,NRE150,ZRE151201004-201304

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-13010iNDE150,ZRE151,ZZE150200611-200902

main69955-47010iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200902-201304

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020iNDE150,ZRE151,ZZE150200611-200902

main69975-47010iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200902-201304

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12080iNDE150,ZRE151,ZZE150..N200611-201304

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12080iNDE150,ZRE151,ZZE150..N200611-201304

9010908295

main90109-08295

9155380620

main91553-80620

91611B0610

main91611-B0610

9415180600

main94151-80600

35 parts on this diagram · 2 diagrams in section
