INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iADE150200611-201304

62111CBOARD, COWL SIDE TRIM, RH

main62111-12300-B0iNDE150,NRE150,ZRE151200611-201304

DK.GRAY,TRIM1#

main62111-12300-E1iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200611-201304

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-12330-B0iADE150200611-201304

DK.GRAY,TRIM1#

main62112-12330-E1iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12030iNDE150..6FS201106-201203

sub62170-12031

main62170-12031iNDE150,NRE150,ZRE151..4FC,6F201204-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62170-12032

main62170-12032iNDE150..6FS201302-201304

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62170BBOLT, W/WASHER

main90119-06869iNDE150..6FS201106-201304

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12030iNDE150..6FS201106-201203

sub62180-12031

main62180-12031iNDE150..6FS201204-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62180-12032

main62180-12032iNDE150,NRE150,ZRE151..4FC,6F201302-201304

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010iNDE150,NRE150,ZRE151..4FC,6F201302-201304

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62211GARNISH, FRONT PILLAR, RH

main62211-12410-B0iNDE150..6FS201106-201304

LT.GRAY,TRIM1#

main62211-12410-E0iNDE150..6FS201106-201304

GREGE,TRIM4#

main62211-12420-B0iNDE150,NRE150,ZRE151..4FC,6F200611-201304

LT.GRAY,TRIM1#

main62211-12420-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iNDE150,ZRE151,ZZE150200611-201304

62212GARNISH, FRONT PILLAR, LH

main62212-12410-B0iNDE150..6FS201106-201304

LT.GRAY,TRIM1#

main62212-12410-E0iNDE150..6FS201106-201304

GREGE,TRIM4#

main62212-12420-B0iADE150200611-201304

LT.GRAY,TRIM1#

main62212-12420-E0iNDE150..6FS200611-201304

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010iNDE150,ZRE151,ZZE150200701-201304

main62217-52060iADE150,NDE150,ZRE151,ZZE150200611-200612

sub62217-52010

main90950-08004iNDE150..6FS201106-201304

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iADE150200611-201304

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12200-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

DK.GRAY,TRIM1#

main62311-12200-E1iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12200-B0iNDE150,ZRE151,ZZE150200611-201304

DK.GRAY,TRIM1#

main62312-12200-E1iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-12020-B0iNDE150,ZRE151,ZZE150..RHD200611-201004

DK.GRAY,TRIM1#

main62315-12020-E0iZRE151,ZZE150..RHD..N200611-201004

GREGE,TRIM4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-12020-B0iNDE150,ZRE151,ZZE150..RHD200611-201004

DK.GRAY,TRIM1#

main62316-12020-E0iZRE151,ZZE150..RHD..N200611-201004

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12220-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

DK.GRAY,TRIM1#

main62331-12220-E1iNDE150,ZRE151,ZZE150..N200611-201304

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12220-B0iNDE150,ZRE151,ZZE150200611-201304

DK.GRAY,TRIM1#

main62332-12220-E1iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-12060-B0iADE150200611-201304

LT.GRAY,TRIM1#

main62410-12060-E0iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-12060-B0iADE150200611-201304

LT.GRAY,TRIM1#

main62420-12060-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12250-B0iNDE150,ZRE151,ZZE150200611-201304

DK.GRAY,TRIM1#

main62413-12250-E1iADE150200611-201304

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iADE150200611-201304

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12250-B0iADE150200611-201304

DK.GRAY,TRIM1#

main62414-12250-E1iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200611-201304

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-12140-B1iNDE150..6FS201106-201304

LT.GRAY,TRIM1#

main62470-12140-E1iNDE150..6FS201106-201304

GREGE,TRIM4#

main62470-12150-B1iNDE150,NRE150,ZRE151..4FC,6F200611-201304

LT.GRAY,TRIM1#

main62470-12150-E1iNDE150..6FS200611-201304

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iADE150200611-201304

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNDE150,NRE150,ZRE151200611-201304

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-12020-B0iADE150,NDE150,ZRE151,ZZE150200611-200708

DK.GRAY,TRIM1#

sub62473-12020

main62473-12020-E0iADE150,NDE150,ZRE151,ZZE150..N200611-200708

ASH BROWN,TRIM4#

sub62473-12020

main62473-12021-B0iNDE150,ZRE151,ZZE150200708-201304

DK.GRAY,TRIM1#

main62473-12021-B0iNDE150,NRE150,ZRE151..N201004-201304

DK.GRAY,TRIM1#,4#

main62473-12021-E0iADE150200708-201004

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-12020-B0iADE150,NDE150,ZRE151,ZZE150200611-200708

DK.GRAY,TRIM1#

sub62474-12020

main62474-12020-E0iADE150,NDE150,ZRE151,ZZE150..N200611-200708

ASH BROWN,TRIM4#

sub62474-12020

main62474-12021-B0iNDE150,NRE150,ZRE151..N200708-201304

DK.GRAY,TRIM1#

main62474-12021-B0iNDE150,NRE150,ZRE151..D201004-201304

DK.GRAY,TRIM1#,4#

main62474-12021-E0iADE150200708-201004

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-12140-B1iNDE150..6FS201106-201304

LT.GRAY,TRIM1#

main62480-12140-E1iNDE150..6FS201106-201304

GREGE,TRIM4#

main62480-12150-B1iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

LT.GRAY,TRIM1#

main62480-12150-E1iNDE150..6FS200611-201304

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161iADE150200611-201304

62551FGARNISH, REAR SEAT SIDE, RH

main62551-12210-B0iNDE150,ZRE151,ZZE150200611-201304

DK.GRAY,TRIM1#

main62551-12210-E1iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-12190-B0iNDE150,NRE150,ZRE151200611-201304

DK.GRAY,TRIM1#

main62552-12190-E1iADE150200611-201304

GREGE,TRIM4#

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-12040iNDE150,NRE150,ZRE151201108-201304

62591EPLATE, SIDE TRIM BASE, NO.2

main62592-12040iNDE150,NRE150,ZRE151201108-201304

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12080-B1iNDE150,NRE150,ZRE151..N200611-201304

DK.GRAY,TRIM1#,4#

sub67911-12080

main67911-12080-B1iNDE150,ZRE151,ZZE150..D200611-201304

DK.GRAY,TRIM1#

sub67911-12080

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-12080-B1iNDE150,ZRE151,ZZE150..D200611-201304

DK.GRAY,TRIM1#

sub67911-12080

main67911-12080-B1iNDE150,NRE150,ZRE151..D200611-201304

DK.GRAY,TRIM1#,4#

sub67911-12080

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12290-B0iNDE150,NRE150,ZRE151200611-201304

DK.GRAY,TRIM1#

main67913-12290-E1iADE150200611-201304

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12250-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

DK.GRAY,TRIM1#

main67914-12250-E1iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12140-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200611-201304

DK.GRAY,TRIM1#

main67917-12140-E1iNDE150,ZRE151,ZZE150..N200611-201304

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12130-B0iNDE150,NRE150,ZRE151200611-201304

DK.GRAY,TRIM1#

main67918-12130-E1iNDE150,NRE150,ZRE151..N200611-201304

GREGE,TRIM4#

7104

9018905096

main90189-05096

9046709225

main90467-09225

9356855018

main93568-55018

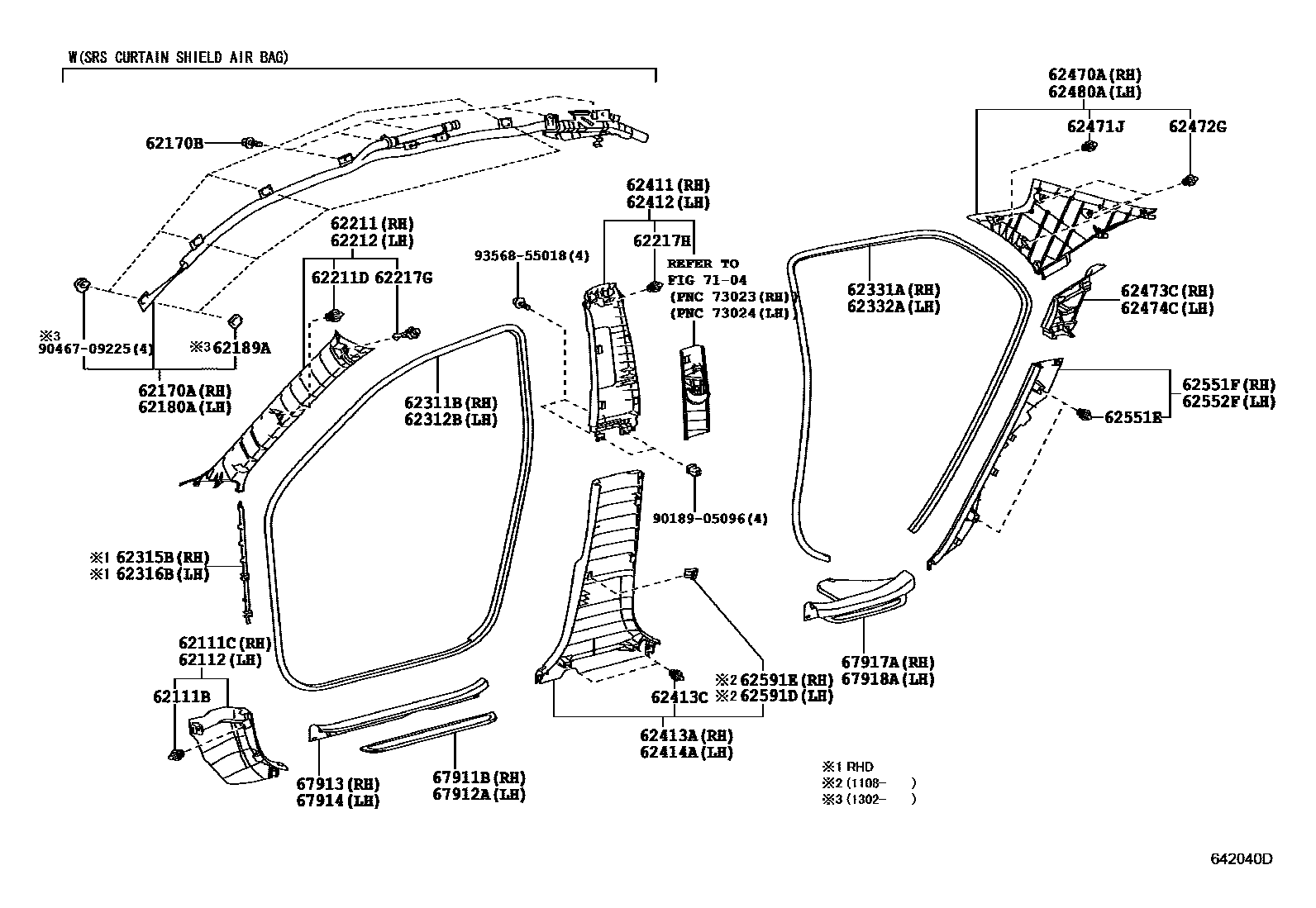

44 parts on this diagram · 1 diagram in section
