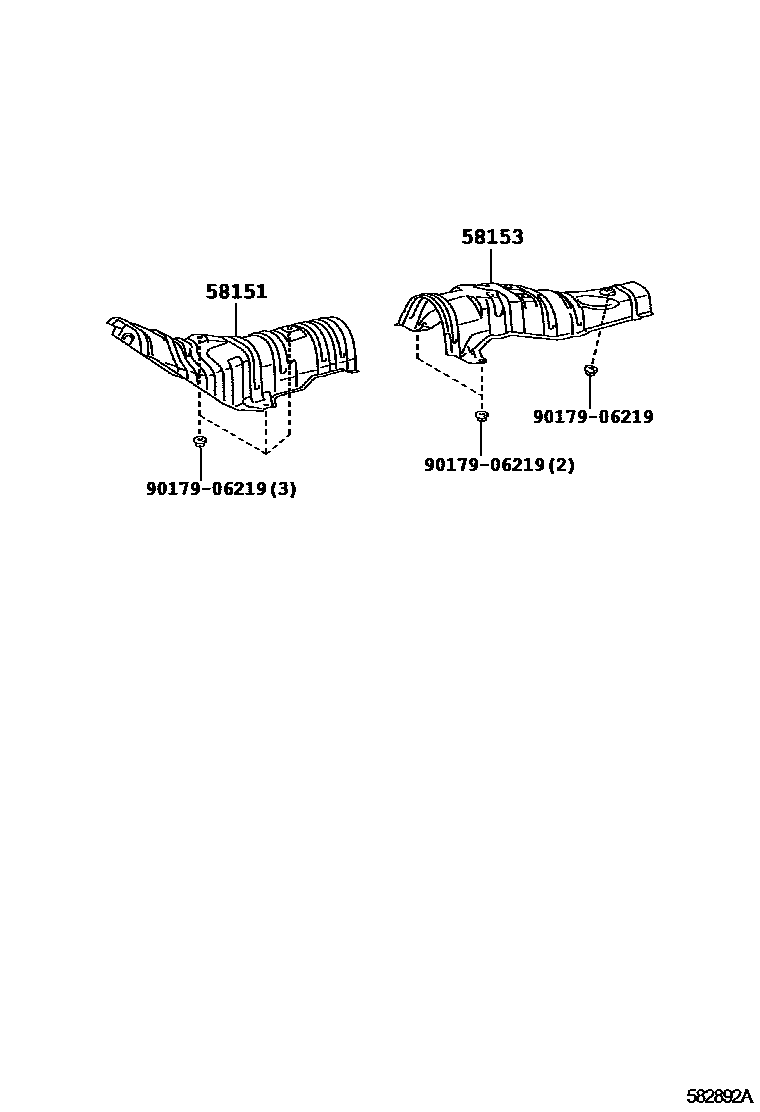

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12240iADE150,NDE150,ZRE151,ZZE150200611-200801

main58151-12241iNDE150,ZRE151,ZZE150200802-200812

main58151-12310iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

main58151-12320iNRE150..LHD200812-201004

COLD AREA SPEC

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12180iADE150,NDE150,ZRE151,ZZE150200611-200801

main58153-12181iNDE150,NRE150,ZRE151201004-201304

9017906219

main90179-06219

3 parts on this diagram · 1 diagram in section
