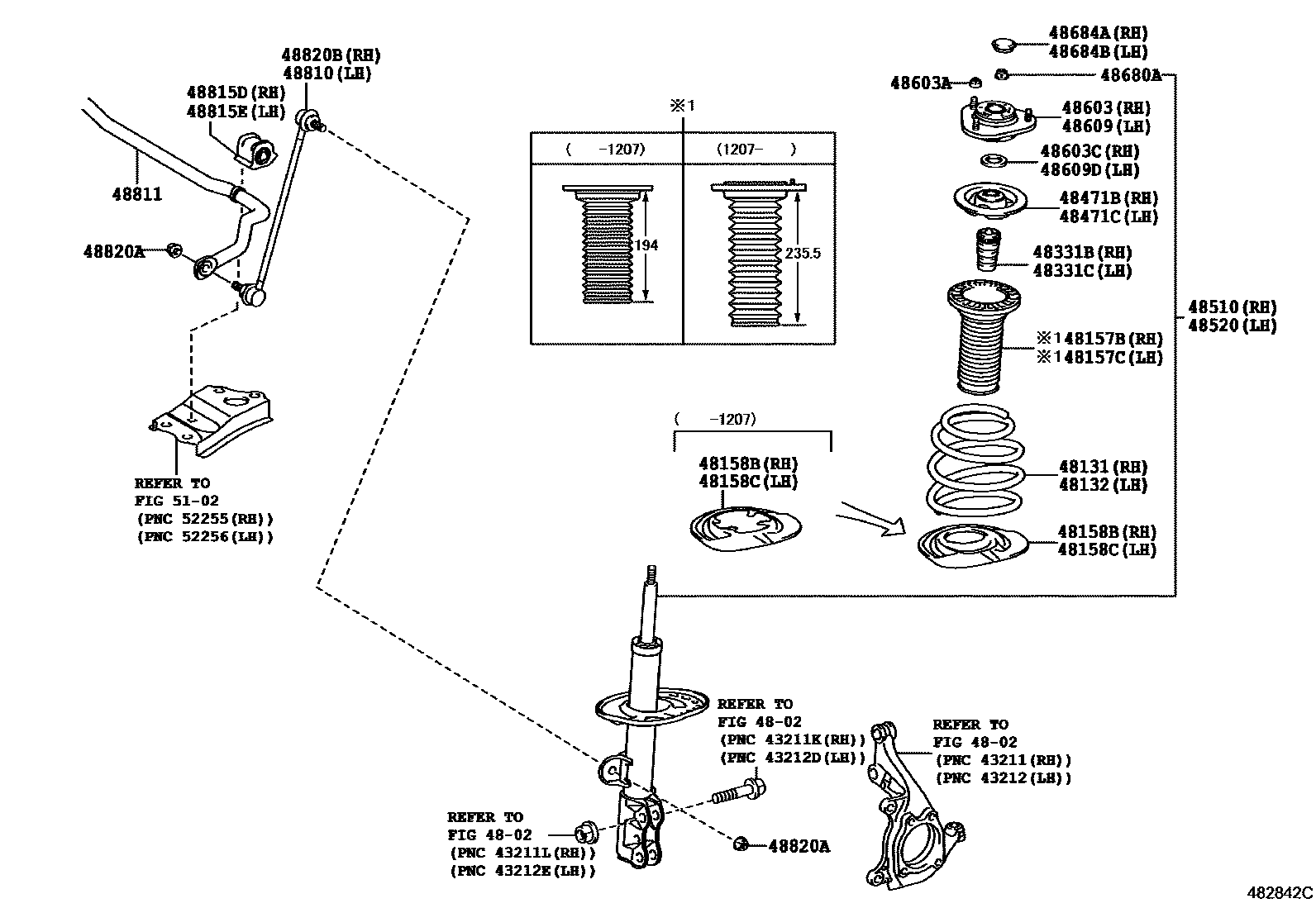

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-12A40iNDE150201004-201304

main48131-12A70supersedes 48131-12A20iNRE150,ZRE151201004-201304

ROUGH ROAD AREA SPEC

main48131-12B50supersedes 48131-12A50iADE150200611-200901

ROUGH ROAD AREA SPEC

main48131-12B60iNDE150201004-201106

ROUGH ROAD AREA SPEC

48132SPRING, FRONT COIL, LH

main48131-12A40iNDE150201004-201304

main48131-12A70supersedes 48131-12A20iNRE150,ZRE151201004-201304

ROUGH ROAD AREA SPEC

main48131-12B50supersedes 48131-12A50iADE150200611-200901

ROUGH ROAD AREA SPEC

main48131-12B60iNDE150201004-201106

ROUGH ROAD AREA SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42030iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

main48157-76010iNDE150,NRE150,ZRE151201207-201304

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42030iNDE150,ZRE151,ZZE150200611-200812

main48157-76010iNDE150,NRE150,ZRE151201207-201304

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12040iADE150200611-200901

main48158-76010iNDE150,NRE150,ZRE151201207-201304

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12040iNDE150,ZRE151,ZZE150200611-200812

main48158-76010iNDE150,NRE150,ZRE151201207-201304

48331BBUMPER, FRONT SPRING, RH

main48331-12220iNDE150,ZRE151,ZZE150200611-200812

48331CBUMPER, FRONT SPRING, LH

main48331-12220iNDE150,ZRE151,ZZE150200611-200812

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-42010iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-42010iNDE150,ZRE151,ZZE150200611-200812

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80333iNDE150200611-200803

MARK 48510-12B60

main48510-80334iZRE151,ZZE150200611-200803

MARK 48510-12B40

main48510-80457iZRE151,ZZE150200803-200812

MARK 48510-12B41

main48510-80458iNDE150201004-201304

MARK 48510-12B61

main48510-80336iNDE150,ZRE151,ZZE150200611-200803

MARK 48510-12B90,ROUGH ROAD AREA SPEC

main48510-80350supersedes 48510-80459iADE150200611-200803

MARK 48510-12C50,ROUGH ROAD AREA SPEC

main48510-80460supersedes 48510-80457iNRE150,ZRE151201004-201304

MARK 48510-12B91,ROUGH ROAD AREA SPEC

main48510-80461supersedes 48510-80459iADE150200803-200901

MARK 48510-12C51,ROUGH ROAD AREA SPEC

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80107iNDE150200611-200803

MARK 48520-12A60

main48520-80108iZRE151,ZZE150200611-200803

MARK 48520-12A40

main48520-80200iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200812-201002

MARK 48520-12A41

main48520-80201iNDE150201004-201304

MARK 48520-12A61

main48520-80110iNDE150,ZRE151,ZZE150200611-200803

MARK 48520-12A90,ROUGH ROAD AREA SPEC

main48520-80119supersedes 48520-80202iADE150200611-200803

MARK 48520-12B50,ROUGH ROAD AREA SPEC

main48520-80203iNDE150..DCRL;ZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200812-201002

MARK 48520-12A91,ROUGH ROAD AREA SPEC

main48520-80204supersedes 48520-80202iADE150200901-201002

MARK 48520-12B51,ROUGH ROAD AREA SPEC

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12500iNDE150,ZRE151,ZZE150200611-200812

main48609-12510iADE150200611-200901

main48609-12550iNDE150,NRE150,ZRE151200812-201002

main48609-12560iADE150200901-201002

main48609-12570iNDE150,NRE150,ZRE151201002-201004

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC200812

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNDE150,ZRE151,ZZE150200611-200812

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12500iNDE150,ZRE151,ZZE150200611-200812

main48609-12510iADE150200611-200901

main48609-12550iNDE150,NRE150,ZRE151200812-201002

main48609-12560iADE150200901-201002

main48609-12570iNDE150,NRE150,ZRE151201004-201304

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNDE150,ZRE151,ZZE150200611-200812

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14015×2iNDE150,ZRE151,ZZE150200611-200812

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iNDE150,ZRE151,ZZE150200611-200812

main48684-74010iNDE150,NRE150,ZRE151201005-201304

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iNDE150,ZRE151,ZZE150200611-200812

main48684-74010iNDE150,NRE150,ZRE151201005-201304

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iNDE150,ZRE151,ZZE150200611-200812

48811BAR, STABILIZER, FRONT

main48811-12A10iNDE150,ZRE151,ZZE150200611-200812

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-12390iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-200901

main48815-12400iADE150,NDE150,NRE150,ZRE151200912-201004

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-12370iADE150,ZZE150;NDE150,ZRE151..5F,5FS200611-200901

main48815-12410iADE150,NDE150,NRE150,ZRE151200912-201004

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iNDE150,ZRE151,ZZE150200611-200812

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iNDE150,ZRE151,ZZE150200611-200812

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02
