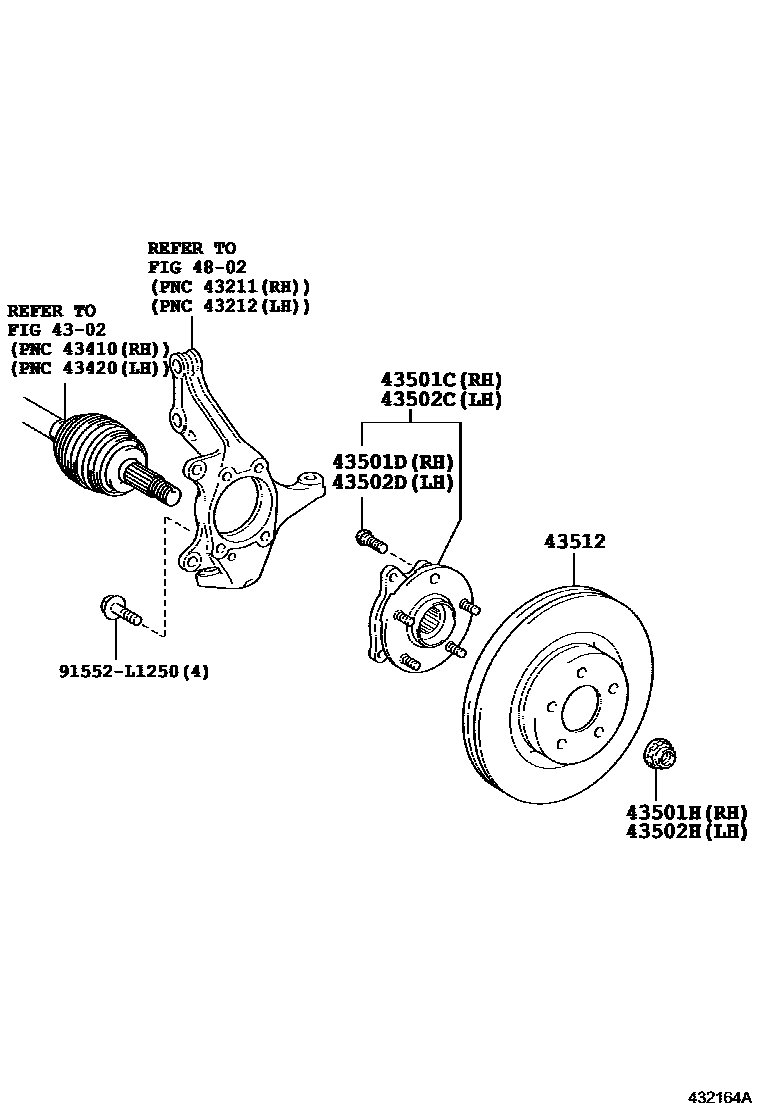

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iNDE150,ZRE151,ZZE150200611-201304

main43550-42020iADE150200611-201002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200611-201304

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNDE150,ZRE151,ZZE150200611-201304

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC200611-201304

main43550-42020iADE150200611-201002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iADE150200611-201304

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNDE150,NRE150,ZRE151200611-201304

43512DISC, FRONT

main43512-12670iZRE151,ZZE150200611-201304

main43512-12680iADE150200611-201002

main43512-12690iNDE150200611-201304

4802

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
