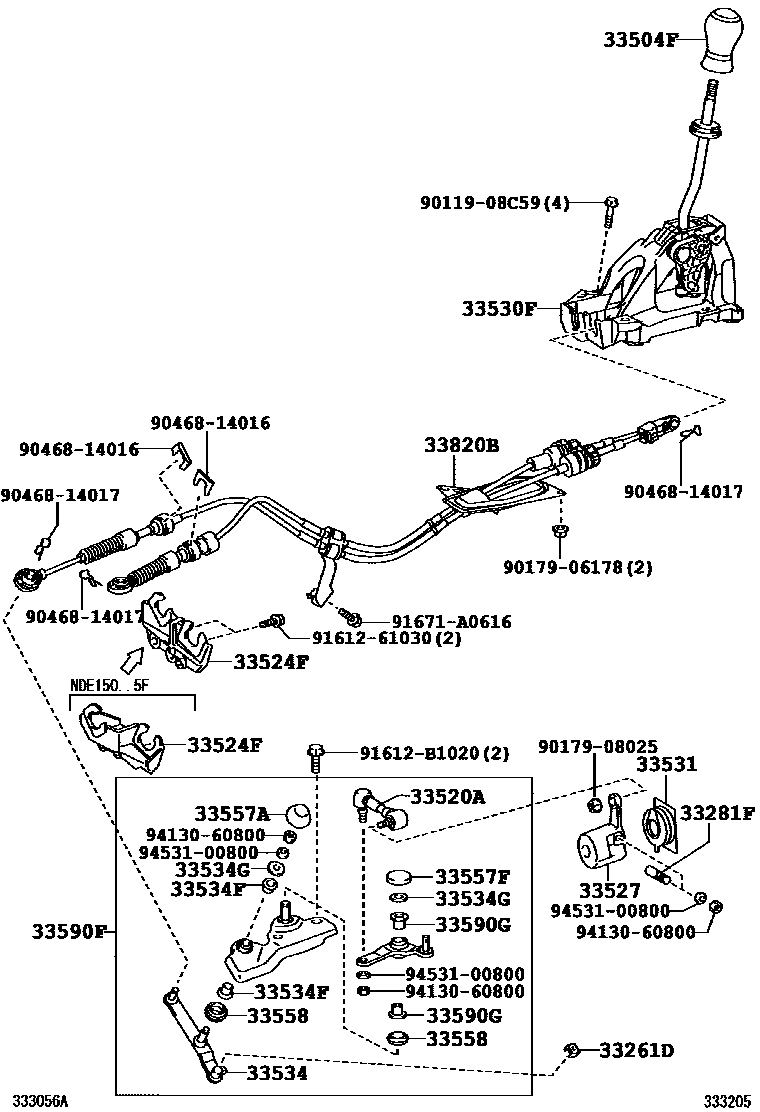

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNDE150,ZRE151,ZZE150..5F200611-200812

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNDE150,ZRE151,ZZE150..5F200611-200812

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12310-B1iNDE150,ZRE151,ZZE150..5F..N200611-200812

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-52220

sub33504-12310

main33504-12310-B1iNDE150,ZRE151,ZZE150..5F..D200611-200812

DK.GRAY,TRIM1#

sub33504-52220

sub33504-12310

main33504-12310-E0iNDE150,ZRE151,ZZE150..5F..N200611-200812

ASH BROWN,TRIM4#

sub33504-52220

sub33504-12310

main33504-12320-B1iNDE150,NRE150,ZRE151..6F..D200812-201004

DK.GRAY,TRIM1#

sub33504-12320

sub33504-33100

main33504-12320-C0iNDE150,NRE150,ZRE151..6F..D201004-201304

BLACK,TRIM1#

sub33504-12320

sub33504-33100

main33504-12330-B1iNDE150,NRE150,ZRE151..6F..D200611-201004

DK.GRAY,TRIM1#

sub33504-12330

main33504-12330-B1iNDE150..6F..N;ADE150,NRE150,ZRE151..6F..N..(DCRL,HTWC,HTWVM)200812-201004

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-12330

main33504-12330-C0iNDE150,NRE150,ZRE151..6F..D201004-201304

BLACK,TRIM1#,4#

sub33504-12330

main33504-12330-C0iNDE150,NRE150,ZRE151..6F..D201004-201304

STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),BLACK,TRIM1#

sub33504-12330

main33504-12330-E0iNDE150..6F..N;ADE150,NRE150,ZRE151..6F..N..(DCRL,HTWC,HTWVM)200611-201004

ASH BROWN,TRIM4#

sub33504-12330

main33504-12380-B0iNDE150,ZRE151,ZZE150..5F..D200611-200812

DK.GRAY,TRIM1#

sub33504-12380

main33504-12460-B0iNDE150,ZRE151..(4FC,6FS)..N200611-201004

DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-B0iNDE150,ZRE151..(4FC,6FS)..N200812-201004

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-B0iZRE151..5FS..D200611-200812

SHIFT LEVER & KNOB-LEATHER,SPORT TYPE,DK.GRAY,TRIM1#

sub33504-72020

main33504-12460-E0iNDE150,ZRE151..5FS..N200611-201004

ASH BROWN,TRIM4#

sub33504-72020

main33504-12500-B1iZRE151..4FC..D201004-201304

DK.GRAY,TRIM1#,4#

sub33504-12500

main33504-12500-B1iZRE151..4FC..D201004-201304

STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1#

sub33504-12500

main33504-42020-B0iZRE151..(4FC,6FS)..D200611-201304

DK.GRAY,TRIM1#

sub33504-58030

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNDE150,ZRE151,ZZE150..5F200611-200812

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12060iNDE150..5F200611-200812

main33524-52050iZRE151..5F200611-200812

main33524-52060iZZE150200611-200812

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNDE150,ZRE151,ZZE150..5F200611-200812

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12A40iNDE150,ZRE151,ZZE150..LHD..5F200611-200812

main33530-12A50iNDE150,ZRE151,ZZE150..RHD200611-200812

main33530-12A60iADE150..LHD200611-200803

sub33530-12A61

main33530-12A61iADE150..LHD200804-201304

main33530-12A70iADE150..RHD200611-200802

sub33530-12A71

main33530-12A71iADE150..RHD200803-201004

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNDE150,ZRE151,ZZE150..5F200611-200812

33534BELLCRANK, SELECTING

main33534-12120iZRE151,ZZE150..5F200611-200812

main33534-12130iNDE150..5F200611-200812

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iNDE150,ZRE151,ZZE150..5F200611-200812

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNDE150,ZRE151,ZZE150..5F200611-200812

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE150200611-201002

NO.2

main33557-32010iNDE150,ZRE151,ZZE150..5F200611-200812

main33557-33010iADE150200611-201002

NO.1

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNDE150,ZRE151,ZZE150..5F200611-200812

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iNDE150,ZRE151,ZZE150..5F200611-200812

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-12070iZRE151,ZZE150..5F200611-200812

main33590-12080iNDE150..5F200611-200812

main33590-20040iADE150200611-201002

33590GBUSH (FOR SELECTING BELL CRANK)

main33546-20020iNDE150,ZRE151,ZZE150..5F200611-200812

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12B80iZZE150200611-200812

main33820-12B90iZRE151..5F200611-200812

main33820-12C00iNDE150..5F200611-200812

main33820-12C20iADE150200611-201002

main33820-12C30iZRE151..4FC200812-201304

main33820-12E60iNRE150200812-201304

main33820-12E70iZRE151..RHD..N;NDE150,ZRE151..6F..(DCR,HTWC)200812-201304

9011908C59

main90119-08C59

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814017

main90468-14017

9161261030

main91612-61030

91612B1020

main91612-B1020

91671A0616

main91671-A0616

9413060800

main94130-60800

9453100800

main94531-00800

27 parts on this diagram · 6 diagrams in section
