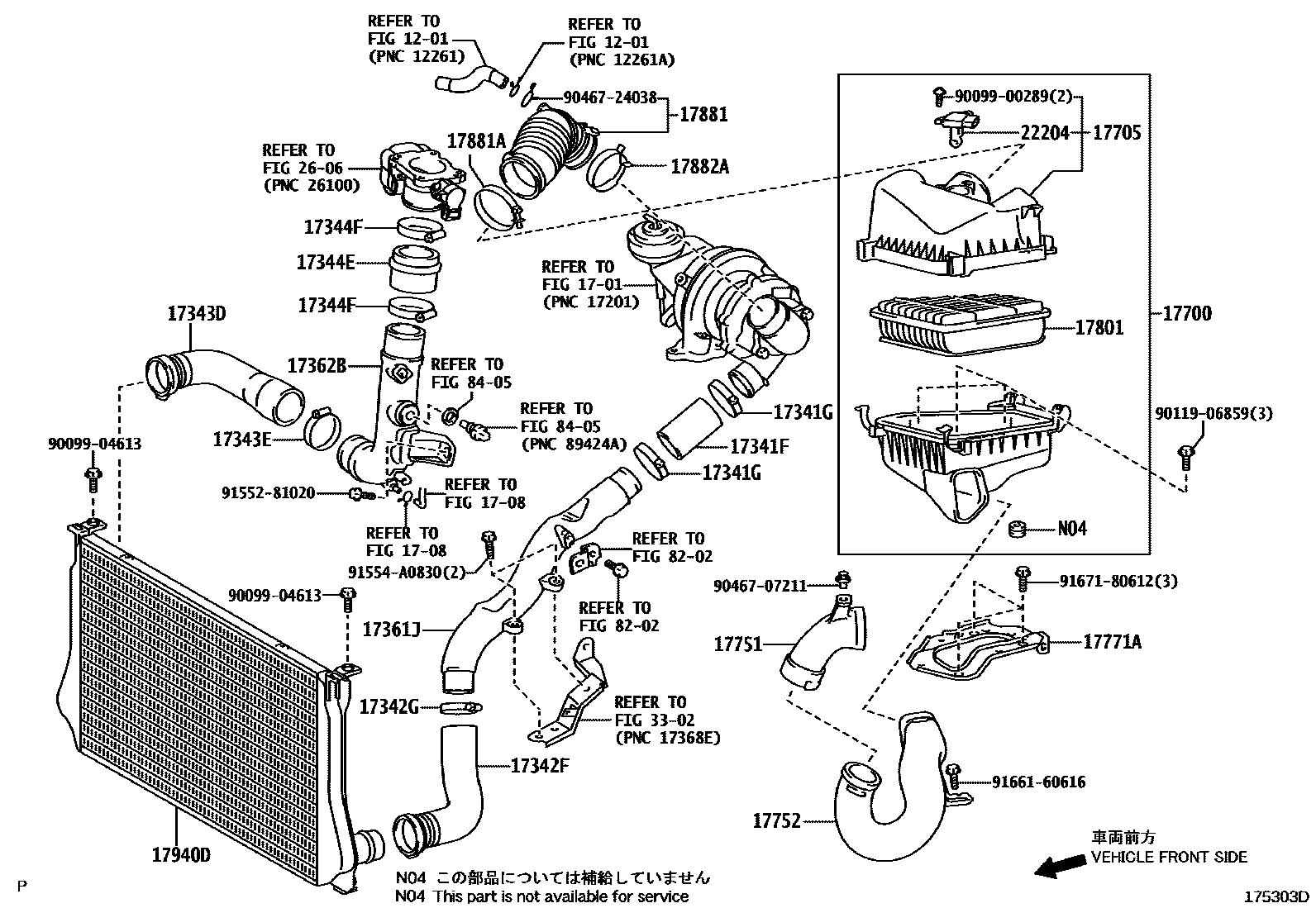

AIR CLEANER
1201
1701
1708
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342FHOSE, AIR, NO.2(FOR INTERCOOLER)
17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17344EHOSE, AIR, NO.4
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2
NO.2
NO.1
NO.2
NO.1
NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17940DINTERCOOLER ASSY
2606
3302
8202
8405
9009900289
main90099-00289
9009904613
main90099-04613
9011906859
main90119-06859
9046707211
main90467-07211
9046724038
main90467-24038
9155281020
main91552-81020
91554A0830
main91554-A0830
9166160616
main91661-60616
9167180612
main91671-80612
37 parts on this diagram · 8 diagrams in section
