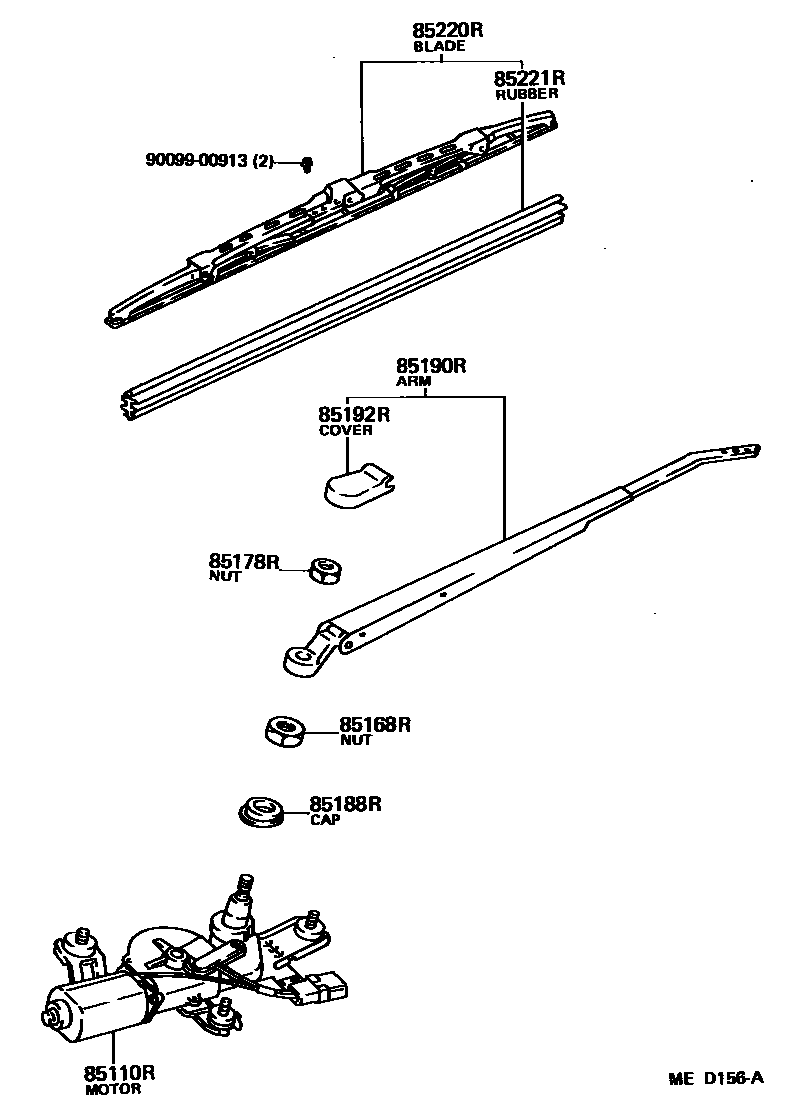

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-12280iAE86..3D198305-198505

main85110-12281iAE86..3D198505-198707

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAE86..3D198305-198707

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE86..3D198305-198707

85188RCAP, REAR WIPER PIVOT, NO.1

main85179-12280iAE86..3D198305-198707

85190RARM ASSY, REAR WIPER

main85190-12560iAE86..3D198305-198707

85192RCOVER, REAR WIPER ARM

main85192-32010iAE86..3D198305-198707

85220RBLADE ASSY, REAR WIPER

main85220-16440iAE86..3D198505-198707

sub85220-16441

main85220-32120iAE86..3D198305-198505

85221RBLADE, REAR WIPER

main85221-14210iAE86..3D198305-198505

sub85214-24H90

main85221-16080iAE86..3D198505-198707

9009900913

main90099-00913

9 parts on this diagram · 1 diagram in section
