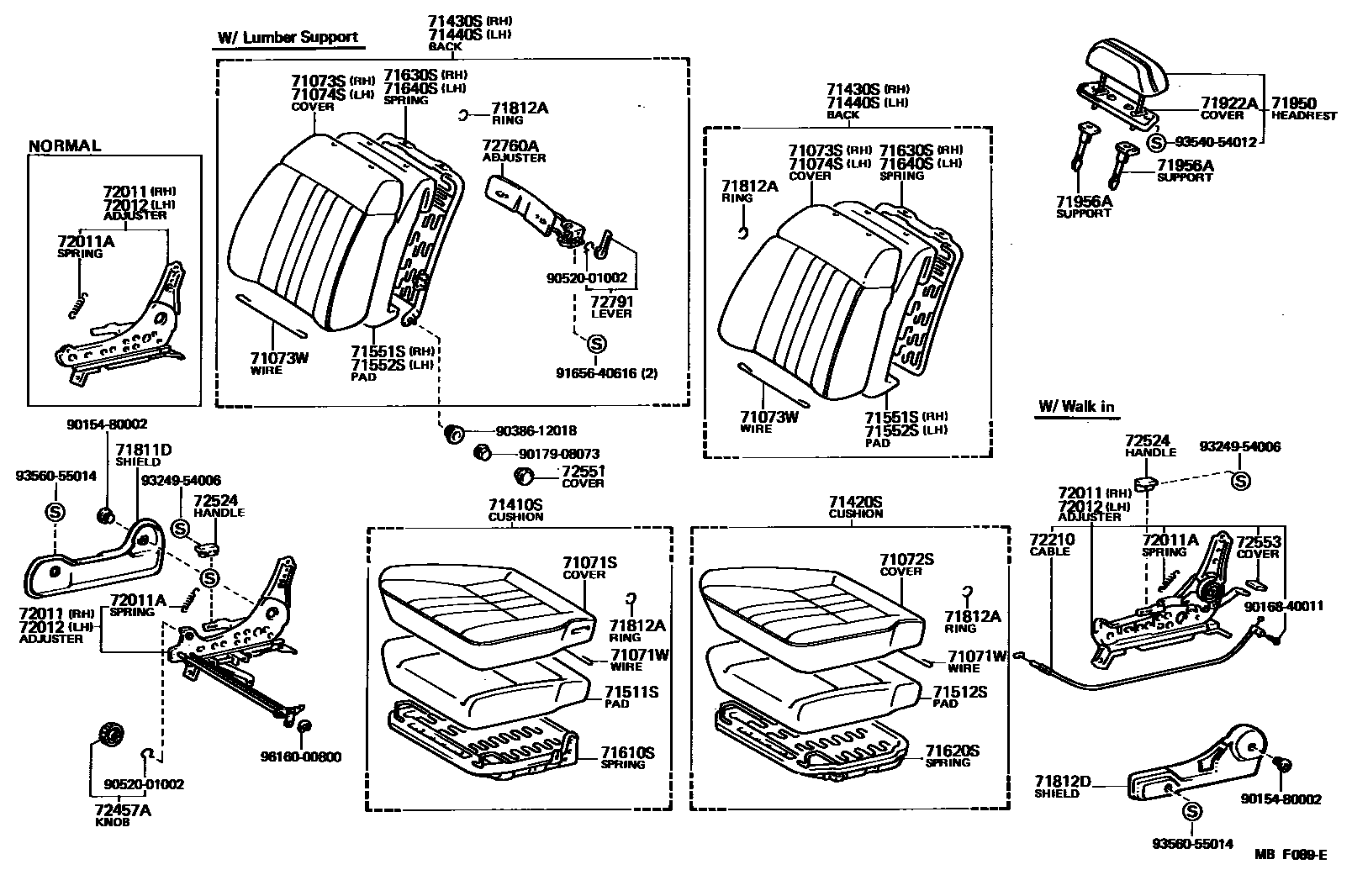

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1A820-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1A820-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71071-1E010-02iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E010-04iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71071-1E020-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E020-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71071-1E021-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E021-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71071-1E030-02iAE86..LHD..EUG198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E030-04iAE86..LHD..EUG198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71071-1E031-02iAE86..LHD..GT..EUR198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E031-04iAE86..LHD..GT..EUR198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71071-1E240-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E240-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71071-1E241-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E241-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71071-1E250-02iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E250-04iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71071-1E251-02iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E251-04iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71071-1E260-02iAE86..RHD..SR;AE86..RHD..EUG198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E260-04iAE86..RHD..SR;AE86..RHD..EUG198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71071-1E261-02iAE86..RHD..SR;AE86..RHD..EUG198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E261-04iAE86..RHD..SR;AE86..RHD..EUG198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71071-1E270-02iAE86..LHD..GT..(GEN,ME)198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-1E270-04iAE86..LHD..GT..(GEN,ME)198308-198408

FB,BLUE,BLUE,TRIM8#

main71071-1E271-02iAE86..LHD..GT..(GEN,ME)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71071-1E271-04iAE86..LHD..GT..(GEN,ME)198408-198505

FB,BLUE,BLUE,TRIM8#

main71071-1E710-03iAE86..RHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71071-1E710-04iAE86..RHD..SR198505-198704

W/*LUS,PF,BLUE,LIGHT BLUE,TRIM8#

main71071-1E720-03iAE86..RHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71071-1E720-04iAE86..RHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71071-1E730-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71071-1E730-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71071-1E760-01iAE86..EUR198505-198608

FB,BLACK,BLACK,TRIM2#

main71071-1E760-04iAE86..EUR198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71071-1E761-01iAE86..EUR198608-198704

FB,BLACK,BLACK,TRIM2#

main71071-1E761-04iAE86..EUR198608-198704

FB,BLUE,BLUE,TRIM8#

main71071-1E790-01iAE86..RHD..GT..GEN198505-198608

FB,BLACK,BLACK,TRIM2#

main71071-1E790-04iAE86..RHD..GT..GEN198505-198608

FB,BLUE,BLUE,TRIM8#

main71071-1E791-01iAE86..RHD..GT..GEN198608-198704

FB,BLACK,BLACK,TRIM2#

main71071-1E791-04iAE86..RHD..GT..GEN198608-198704

FB,BLUE,BLUE,TRIM8#

main71071-1E810-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71071-1E810-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

main71071-1E820-01iAE86..LHD..GT..(GEN,ME)198505-198608

FB,BLACK,BLACK,TRIM2#

main71071-1E820-04iAE86..LHD..GT..(GEN,ME)198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71071-1E821-01iAE86..LHD..GT..(GEN,ME)198608-198707

FB,BLACK,BLACK,TRIM2#

main71071-1E821-04iAE86..LHD..GT..(GEN,ME)198608-198707

FB,BLUE,BLUE,TRIM8#

71071WWIRE, FRONT SEAT CUSHION COVER

main90580-20019×2iAE86198305-198505

L=260

main90580-20103×2iAE86198305-198505

L=1150

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1A810-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A810-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71072-1A820-02iAE86..LHD..SR;AE86..LHD..EUG198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A820-04iAE86..LHD..SR;AE86..LHD..EUG198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71072-1A821-02iAE86..LHD..SR;AE86..LHD..GT..EUR198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1A821-04iAE86..LHD..SR;AE86..LHD..GT..EUR198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71072-1A840-02iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1A840-04iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71072-1A841-02iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1A841-04iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71072-1E010-02iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1E010-04iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71072-1E020-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1E020-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71072-1E021-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1E021-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71072-1E050-02iAE86..RHD..EUG198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1E050-04iAE86..RHD..EUG198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71072-1E051-02iAE86..RHD..EUG198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1E051-04iAE86..RHD..EUG198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71072-1E060-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1E060-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71072-1E061-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1E061-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71072-1E070-02iAE86..RHD..GT..GEN198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71072-1E070-04iAE86..RHD..GT..GEN198308-198408

FB,BLUE,BLUE,TRIM8#

main71072-1E071-02iAE86..RHD..GT..GEN198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71072-1E071-04iAE86..RHD..GT..GEN198408-198505

FB,BLUE,BLUE,TRIM8#

main71072-1E150-03iAE86..LHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71072-1E150-04iAE86..LHD..SR198505-198704

W/*LUS,PF,BLUE,LIGHT BLUE,TRIM8#

main71072-1E160-03iAE86..LHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71072-1E160-04iAE86..LHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71072-1E170-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71072-1E170-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71072-1E190-01iAE86..LHD..GT198505-198608

FB,BLACK,BLACK,TRIM2#

main71072-1E190-04iAE86..LHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71072-1E191-01iAE86..LHD..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71072-1E191-04iAE86..LHD..GT198608-198707

FB,BLUE,BLUE,TRIM8#

main71072-1E210-01iAE86..RHD..EUG198505-198608

FB,BLACK,BLACK,TRIM2#

main71072-1E210-04iAE86..RHD..EUG198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71072-1E211-01iAE86..RHD..EUG198608-198704

FB,BLACK,BLACK,TRIM2#

main71072-1E211-04iAE86..RHD..EUG198608-198704

FB,BLUE,BLUE,TRIM8#

main71072-1E230-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71072-1E230-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

main71072-1E240-01iAE86..RHD..GT..GEN198505-198608

FB,BLACK,BLACK,TRIM2#

main71072-1E240-04iAE86..RHD..GT..GEN198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71072-1E241-01iAE86..RHD..GT..GEN198608-198704

FB,BLACK,BLACK,TRIM2#

main71072-1E241-04iAE86..RHD..GT..GEN198608-198704

FB,BLUE,BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1E150-02iAE86..SR..GEN198305-198505

W/*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E150-04iAE86..SR..GEN198305-198505

W/*HR,PF,BLUE,BLUE,TRIM8#

main71073-1E260-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E260-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71073-1E270-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E270-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71073-1E271-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71073-1E271-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E530-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E530-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71073-1E531-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71073-1E531-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71073-1E540-02iAE86..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E540-04iAE86..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71073-1E541-02iAE86..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71073-1E541-04iAE86..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71073-1E830-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71073-1E830-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71073-1E860-03iAE86..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71073-1E860-04iAE86..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71073-1E861-01iAE86..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71073-1E861-04iAE86..GT198608-198707

FB,BLUE,BLUE,TRIM8#

main71073-1H010-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71073-1H010-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

71073WWIRE, FRONT SEATBACK COVER

main90580-20020×4iAE86..SR;AE86..GT..EUR198305-198505

L=420

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1E540-02iAE86..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-1E540-04iAE86..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71073-1E541-02iAE86..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71073-1E541-04iAE86..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71073-1E860-03iAE86..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71073-1E860-04iAE86..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71073-1E861-01iAE86..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71073-1E861-04iAE86..GT198608-198707

FB,BLUE,BLUE,TRIM8#

main71074-12600-02iAE86..SR..GEN198305-198505

W/*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71074-12600-04iAE86..SR..GEN198305-198505

W/*HR,PF,BLUE,BLUE,TRIM8#

main71074-1A280-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A280-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71074-1A290-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A290-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71074-1A291-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71074-1A291-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71074-1A500-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-1A500-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71074-1A501-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71074-1A501-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71074-1A810-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71074-1A810-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71074-1A850-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71074-1A850-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1E130-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E130-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71410-1E160-02iAE86..LHD..EUG198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E160-04iAE86..LHD..EUG198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71410-1E161-02iAE86..LHD..GT..EUR198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E161-04iAE86..LHD..GT..EUR198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71410-1E200-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E200-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71410-1E201-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E201-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71410-1E250-02iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E250-04iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71410-1E740-02iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E740-04iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71410-1E741-02iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E741-04iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71410-1E750-02iAE86..LHD..GT..(GEN,ME)198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E750-04iAE86..LHD..GT..(GEN,ME)198308-198408

FB,BLUE,BLUE,TRIM8#

main71410-1E751-02iAE86..LHD..GT..(GEN,ME)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E751-04iAE86..LHD..GT..(GEN,ME)198408-198505

FB,BLUE,BLUE,TRIM8#

main71410-1E760-02iAE86..RHD..SR;AE86..RHD..EUG198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E760-04iAE86..RHD..SR;AE86..RHD..EUG198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71410-1E761-02iAE86..RHD..SR;AE86..RHD..EUG198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E761-04iAE86..RHD..SR;AE86..RHD..EUG198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71410-1E770-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1E770-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71410-1E771-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1E771-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71410-1H030-02iAE86..2D..EUG198308-198408

*FS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-1H030-04iAE86..2D..EUG198308-198408

*FS,FB,BLUE,BLUE,TRIM8#

main71410-1H031-02iAE86..2D..EUG198408-198505

*FS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71410-1H031-04iAE86..2D..EUG198408-198505

*FS,FB,BLUE,BLUE,TRIM8#

main71410-1H110-01iAE86..LHD..GT..(GEN,ME)198505-198608

FB,BLACK,BLACK,TRIM2#

main71410-1H110-04iAE86..LHD..GT..(GEN,ME)198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71410-1H111-01iAE86..LHD..GT..(GEN,ME)198608-198707

FB,BLACK,BLACK,TRIM2#

main71410-1H111-04iAE86..LHD..GT..(GEN,ME)198608-198707

FB,BLUE,BLUE,TRIM8#

main71410-1H120-03iAE86..RHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71410-1H120-04iAE86..RHD..SR198505-198704

W/*LUS,PF,LIGHT BLUE,LIGHT BLUE,TRIM8#

main71410-1H130-03iAE86..RHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71410-1H130-04iAE86..RHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71410-1H140-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71410-1H140-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71410-1H180-01iAE86..RHD..GT..GEN198505-198608

FB,BLACK,BLACK,TRIM2#

main71410-1H180-04iAE86..RHD..GT..GEN198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71410-1H181-01iAE86..RHD..GT..GEN198608-198704

FB,BLACK,BLACK,TRIM2#

main71410-1H181-04iAE86..RHD..GT..GEN198608-198704

FB,BLUE,BLUE,TRIM8#

main71410-1H190-01iAE86..EUR198505-198608

FB,BLACK,BLACK,TRIM2#

main71410-1H190-04iAE86..EUR198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71410-1H191-01iAE86..EUR198608-198704

FB,BLACK,BLACK,TRIM2#

main71410-1H191-04iAE86..EUR198608-198704

FB,BLUE,BLUE,TRIM8#

main71410-1H230-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71410-1H230-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1E040-03iAE86..LHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71420-1E040-04iAE86..LHD..SR198505-198704

W/*LUS,PF,BLUE,LIGHT BLUE,TRIM8#

main71420-1E060-02iAE86..LHD..SR;AE86..LHD..EUG198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E060-04iAE86..LHD..SR;AE86..LHD..EUG198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71420-1E061-02iAE86..LHD..SR;AE86..LHD..GT..EUR198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E061-04iAE86..LHD..SR;AE86..LHD..GT..EUR198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71420-1E070-02iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E070-04iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71420-1E071-02iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E071-04iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71420-1E100-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E100-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71420-1E110-02iAE86..RHD..EUG198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E110-04iAE86..RHD..EUG198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71420-1E111-02iAE86..RHD..EUG198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E111-04iAE86..RHD..EUG198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71420-1E130-03iAE86..LHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71420-1E130-04iAE86..LHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71420-1E150-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71420-1E150-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71420-1E170-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E170-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71420-1E171-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E171-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71420-1E240-02iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E240-04iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71420-1E250-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E250-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71420-1E251-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E251-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71420-1E280-01iAE86..LHD..GT198505-198608

FB,BLACK,BLACK,TRIM2#

main71420-1E280-04iAE86..LHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71420-1E281-01iAE86..LHD..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71420-1E281-04iAE86..LHD..GT198608-198707

FB,BLUE,BLUE,TRIM8#

main71420-1E320-02iAE86..RHD..GT..GEN198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E320-04iAE86..RHD..GT..GEN198308-198408

FB,BLUE,BLUE,TRIM8#

main71420-1E321-02iAE86..RHD..GT..GEN198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E321-04iAE86..RHD..GT..GEN198408-198505

FB,BLUE,BLUE,TRIM8#

main71420-1E380-02iAE86..2D..EUG198308-198408

*FS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E380-04iAE86..2D..EUG198308-198408

*FS,FB,BLUE,BLUE,TRIM8#

main71420-1E381-02iAE86..2D..EUG198408-198505

*FS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E381-04iAE86..2D..EUG198408-198505

*FS,FB,BLUE,BLUE,TRIM8#

main71420-1E390-02iAE86..2D..EUG198308-198408

*FS,W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71420-1E390-04iAE86..2D..EUG198308-198408

*FS,W/*LUS,FB,BLUE,BLUE,TRIM8#

main71420-1E391-02iAE86..2D..EUG198408-198505

*FS,W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71420-1E391-04iAE86..2D..EUG198408-198505

*FS,W/*LUS,FB,BLUE,BLUE,TRIM8#

main71420-1E420-01iAE86..RHD..EUG198505-198608

FB,BLACK,BLACK,TRIM2#

main71420-1E420-04iAE86..RHD..EUG198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71420-1E421-01iAE86..RHD..EUG198608-198704

FB,BLACK,BLACK,TRIM2#

main71420-1E421-04iAE86..RHD..EUG198608-198704

FB,BLUE,BLUE,TRIM8#

main71420-1E430-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71420-1E430-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

main71420-1E440-01iAE86..RHD..GT..GEN198505-198608

FB,BLACK,BLACK,TRIM2#

main71420-1E440-04iAE86..RHD..GT..GEN198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71420-1E441-01iAE86..RHD..GT..GEN198608-198704

FB,BLACK,BLACK,TRIM2#

main71420-1E441-04iAE86..RHD..GT..GEN198608-198704

FB,BLUE,BLUE,TRIM8#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1E310-02iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E310-04iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71430-1E311-02iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E311-04iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71430-1E340-02iAE86..SR..GEN198305-198505

W/*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E340-04iAE86..SR..GEN198305-198505

W/*HR,PF,BLUE,BLUE,TRIM8#

main71430-1E400-02iAE86..RHD..SR..GEN198305-198505

W/*LUS,*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E400-04iAE86..RHD..SR..GEN198305-198505

W/*LUS,*HR,PF,BLUE,BLUE,TRIM8#

main71430-1E430-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E430-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71430-1E431-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E431-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71430-1E440-02iAE86..RHD..EUG198308-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E440-04iAE86..RHD..EUG198308-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71430-1E441-02iAE86..RHD..EUG198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E441-04iAE86..RHD..EUG198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71430-1E480-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E480-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71430-1E500-02iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E500-04iAE86..RHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71430-1E790-02iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E790-04iAE86..RHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71430-1E791-02iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E791-04iAE86..RHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71430-1E800-02iAE86..SR..GEN198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E800-04iAE86..SR..GEN198305-198408

FB,BLUE,BLUE,TRIM8#

main71430-1E801-02iAE86..SR..GEN198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E801-04iAE86..SR..GEN198408-198505

FB,BLUE,BLUE,TRIM8#

main71430-1E810-02iAE86..RHD..SR198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1E810-04iAE86..RHD..SR198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71430-1E811-02iAE86..RHD..SR198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1E811-04iAE86..RHD..SR198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71430-1H040-02iAE86..2D..EUG198308-198408

*FS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-1H040-04iAE86..2D..EUG198308-198408

*FS,FB,BLUE,BLUE,TRIM8#

main71430-1H041-02iAE86..2D..EUG198408-198505

*FS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71430-1H041-04iAE86..2D..EUG198408-198505

*FS,FB,BLUE,BLUE,TRIM8#

main71430-1H170-03iAE86..SR198505-198704

PF,GRAY,GRAY,TRIM2#

main71430-1H170-04iAE86..SR198505-198704

PF,BLUE,LIGHT BLUE,TRIM8#

main71430-1H190-03iAE86..RHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71430-1H190-04iAE86..RHD..SR198505-198704

W/*LUS,PF,BLUE,LIGHT BLUE,TRIM8#

main71430-1H200-03iAE86..RHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71430-1H200-04iAE86..RHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71430-1H210-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71430-1H210-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71430-1H260-03iAE86..RHD..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71430-1H260-04iAE86..RHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71430-1H261-01iAE86..RHD..GT198608-198704

FB,BLACK,BLACK,TRIM2#

main71430-1H261-04iAE86..RHD..GT198608-198704

FB,BLUE,BLUE,TRIM8#

main71430-1H270-03iAE86..LHD..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71430-1H270-04iAE86..LHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71430-1H271-01iAE86..LHD..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71430-1H271-04iAE86..LHD..GT198608-198707

FB,BLUE,BLUE,TRIM8#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1E260-02iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E260-04iAE86..LHD..GT198308-198408

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71440-1E261-02iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E261-04iAE86..LHD..GT198408-198505

W/SPORTS SEAT,FB,BLUE,BLUE,TRIM8#

main71440-1E290-02iAE86..SR..GEN198305-198505

W/*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E290-04iAE86..SR..GEN198305-198505

W/*HR,PF,BLUE,BLUE,TRIM8#

main71440-1E350-02iAE86..LHD..SR..GEN198305-198505

W/*LUS,*HR,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E350-04iAE86..LHD..SR..GEN198305-198505

W/*LUS,*HR,PF,BLUE,BLUE,TRIM8#

main71440-1E370-02iAE86..EUR198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E370-04iAE86..EUR198308-198408

FB,BLUE,BLUE,TRIM8#

main71440-1E371-02iAE86..EUR198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E371-04iAE86..EUR198408-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E380-02iAE86..LHD..EUR198308-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E380-04iAE86..LHD..EUR198308-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1E381-02iAE86..LHD..EUR198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E381-04iAE86..LHD..EUR198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1E420-02iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E420-04iAE86..LHD..SR..GEN198305-198505

W/*LUS,PF,BLUE,BLUE,TRIM8#

main71440-1E430-02iAE86..SR..GEN198305-198505

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E430-04iAE86..SR..GEN198305-198505

PF,BLUE,BLUE,TRIM8#

main71440-1E440-02iAE86..LHD..SR..GEN198305-198408

W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E440-04iAE86..LHD..SR..GEN198305-198408

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1E441-02iAE86..LHD..SR..GEN198408-198505

W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E441-04iAE86..LHD..SR..GEN198408-198505

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1E740-03iAE86..SR198505

PF,GRAY,GRAY,TRIM2#

main71440-1E740-04iAE86..SR198505

PF,BLUE,LIGHT BLUE,TRIM8#

main71440-1E750-02iAE86..RHD..GT198308-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E750-04iAE86..RHD..GT198308-198408

FB,BLUE,BLUE,TRIM8#

main71440-1E751-02iAE86..RHD..GT198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E751-04iAE86..RHD..GT198408-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E760-02iAE86..SR..(ARL,GEN)198305-198408

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E760-04iAE86..SR..(ARL,GEN)198305-198408

FB,BLUE,BLUE,TRIM8#

main71440-1E761-02iAE86..SR..(ARL,GEN)198408-198505

FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E761-04iAE86..SR..(ARL,GEN)198408-198505

FB,BLUE,BLUE,TRIM8#

main71440-1E870-02iAE86..2D..EUG198308-198408

*FS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E870-04iAE86..2D..EUG198308-198408

*FS,FB,BLUE,BLUE,TRIM8#

main71440-1E871-02iAE86..2D..EUG198408-198505

*FS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E871-04iAE86..2D..EUG198408-198505

*FS,FB,BLUE,BLUE,TRIM8#

main71440-1E880-02iAE86..2D..EUG198308-198408

*FS,W/*LUS,FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-1E880-04iAE86..2D..EUG198308-198408

*FS,W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1E881-02iAE86..2D..EUG198408-198505

*FS,W/*LUS,FB,DEEP MAROON,DEEP MAROON,TRIM3#

main71440-1E881-04iAE86..2D..EUG198408-198505

*FS,W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1H130-03iAE86..LHD..SR198505-198704

W/*LUS,PF,GRAY,GRAY,TRIM2#

main71440-1H130-04iAE86..LHD..SR198505-198704

W/*LUS,PF,BLUE,LIGHT BLUE,TRIM8#

main71440-1H140-03iAE86..LHD..SR198505-198704

W/*LUS,FB,GRAY,GRAY,TRIM2#

main71440-1H140-04iAE86..LHD..SR198505-198704

W/*LUS,FB,BLUE,BLUE,TRIM8#

main71440-1H150-03iAE86..SR198505-198704

FB,GRAY,GRAY,TRIM2#

main71440-1H150-04iAE86..SR198505-198704

FB,BLUE,BLUE,TRIM8#

main71440-1H200-03iAE86..RHD..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71440-1H200-04iAE86..RHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71440-1H201-01iAE86..RHD..GT198608-198704

FB,BLACK,BLACK,TRIM2#

main71440-1H201-04iAE86..RHD..GT198608-198704

FB,BLUE,BLUE,TRIM8#

main71440-1H210-03iAE86..LHD..GT198505-198608

FB,GRAY,GRAY,TRIM2#

main71440-1H210-04iAE86..LHD..GT198505-198608

FB,BLUE,LIGHT BLUE,TRIM8#

main71440-1H211-01iAE86..LHD..GT198608-198707

FB,BLACK,BLACK,TRIM2#

main71440-1H211-04iAE86..LHD..GT198608-198707

FB,BLUE,BLUE,TRIM8#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12440iAE86..GT198308-198407

W/SPORTS SEAT

main71511-12460iAE86..GT198407-198505

W/SPORTS SEAT

main71511-12540iAE86198505-198707

main71511-14140iAE86..SR;AE86..GT..EUR198305-198505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-12440iAE86..GT198308-198407

W/SPORTS SEAT

main71511-12460iAE86..GT198407-198505

W/SPORTS SEAT

main71511-12540iAE86198505-198707

main71511-14140iAE86..SR;AE86..GT..EUR198305-198505

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12390iAE86..SR;AE86..EUG198305-198407

main71551-12400iAE86..GT198308-198407

W/SPORTS SEAT

main71551-12410iAE86..2D..EUG198308-198407

*FS

main71551-12420iAE86..GT198407-198505

W/SPORTS SEAT

main71551-12510iAE86..SR198505-198704

main71551-12530iAE86..GT198505-198707

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-12390iAE86..SR;AE86..EUG198305-198407

main71551-12400iAE86..GT198308-198407

W/SPORTS SEAT

main71551-12410iAE86..2D..EUG198308-198407

*FS

main71551-12420iAE86..GT198407-198505

W/SPORTS SEAT

main71551-12510iAE86..SR198505-198704

main71551-12530iAE86..GT198505-198707

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-12160iAE86..SR;AE86..GT..EUR198305-198505

main71610-12161iAE86..RHD..EUG; AE86..SR;AE86..EUR198505-198508

main71610-12170iAE86..RHD..SR;AE86..RHD..EUG198305-198505

W/*VA

main71610-12180iAE86..RHD..GT198308-198505

W/SPORTS SEAT

main71610-12190iAE86..LHD..GT198308-198505

W/SPORTS SEAT

main71610-12191iAE86..LHD..GT198505-198508

W/SPORTS SEAT

main71610-12201iAE86..SR;AE86..LHD..GT198508-198707

main71610-12260iAE86..RHD..GEN198508-198704

W/*VA

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-12140iAE86..SR;AE86..GT..EUR198305-198505

main71620-12141iAE86..SR;AE86..EUR198505-198508

main71620-12150iAE86..RHD..GT198308-198505

W/SPORTS SEAT

main71620-12151iAE86..RHD..GT198505-198508

W/SPORTS SEAT

main71620-12160iAE86..LHD..GT198308-198505

W/SPORTS SEAT

main71620-12170iAE86..LHD..SR;AE86..LHD..GT..EUR198305-198505

W/*VA

main71620-12181iAE86..SR;AE86..RHD..GT198508-198704

main71620-12200iAE86..LHD198508-198707

W/*VA

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-12260iAE86..RHD..SR;AE86..RHD..EUG198305-198505

W/*LUS

main71630-12280iAE86..LHD..GT198308-198707

W/SPORTS SEAT

main71630-12290iAE86..SR;AE86..GT..EUR198305-198505

main71630-12330iAE86..RHD..GT198308-198704

W/SPORTS SEAT

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-12220iAE86..SR;AE86..GT..EUR198305-198505

main71640-12230iAE86..RHD..GT198308-198704

W/SPORTS SEAT

main71640-12240iAE86..LHD..GT198308-198707

W/SPORTS SEAT

main71640-12250iAE86..LHD..SR198505-198704

W/*LUS

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-12120-01iAE86..SR;AE86..LHD..GT..GEN198505-198704

BLACK,BLACK,TRIM2#

main71811-12120-02iAE86..ARL,EUR,ME; AE86..SR..GEN;AE86..LHD..GT..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main71811-12120-04iAE86..SR..GEN;AE86..LHD..GT..GEN198305-198704

BLUE,BLUE,TRIM8#

main71811-12130-01iAE86..RHD..GEN198505-198704

W/*VA,BLACK,BLACK,TRIM2#

main71811-12130-02iAE86..RHD198305-198505

W/*VA,DEEP MAROON,RED/MAROON,TRIM3#

main71811-12130-04iAE86..RHD198305-198505

W/*VA,BLUE,BLUE,TRIM8#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iAE86198305-198707

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-12080-01iAE86..SR;AE86..RHD..GT198505-198704

BLACK,BLACK,TRIM2#

main71812-12080-02iAE86..ARL,EUR; AE86..SR..GEN;AE86..RHD..GT..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main71812-12080-04iAE86..ARL,EUR; AE86..SR..GEN;AE86..RHD..GT..GEN198305-198505

BLUE,BLUE,TRIM8#

main71812-12090-01iAE86..LHD198505-198707

W/*VA,BLACK,BLACK,TRIM2#

main71812-12090-02iAE86..LHD198305-198505

W/*VA,DEEP MAROON,RED/MAROON,TRIM3#

main71812-12090-04iAE86..LHD198305-198707

W/*VA,BLUE,BLUE,TRIM8#

71922ACOVER, FRONT SEAT HEADREST UNDER

main71922-32010-01×2iAE86..ARL,EUR198305-198505

BLACK,BLACK,TRIM2#

71950HEADREST ASSY, FRONT SEAT

main71910-12270-01×2iAE86..GT198505-198707

BLACK,BLACK,TRIM2#

main71910-12270-02×2iAE86..GT198308-198505

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71910-12270-04×2iAE86..GT198308-198707

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main71910-12280-02×2iAE86..ARL,EUR198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main71910-12280-04×2iAE86..ARL,EUR198305-198408

BLUE,BLUE,TRIM8#

main71910-12281-02×2iAE86..ARL,EUR198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main71910-12281-04×2iAE86..ARL,EUR198408-198505

BLUE,BLUE,TRIM8#

main71910-12350-01×2iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main71910-12350-02×2iAE86..SR..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main71910-12350-14×2iAE86..SR..GEN198305

BLUE,BLUE,TRIM8#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-01×2iAE86..SR198505-198704

W(LOCK),W/LOCK,BLACK,BLACK,TRIM2#

main71930-10060-02×2iAE86..SR;AE86..GT..EUR198305-198505

W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3#

main71930-10060-04×2iAE86..SR198505-198704

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-14080-01×2iAE86..GT198505-198707

W(LOCK),W/LOCK,BLACK,BLACK,TRIM2#

main71930-14080-02×2iAE86..GT198308-198505

W(LOCK),W/LOCK,*SPS,DEEP MAROON,RED/MAROON,TRIM3#

main71930-14080-04×2iAE86..GT198308-198707

W(LOCK),W/LOCK,*SPS,BLUE,BLUE,TRIM8#

main71931-10010-01×2iAE86..SR198505-198704

W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2#

main71931-10010-02×2iAE86..SR;AE86..GT..EUR198305-198505

W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3#

main71931-10010-04×2iAE86..SR198505-198704

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-14010-01×2iAE86..GT198505-198707

W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2#

main71931-14010-02×2iAE86..GT198308-198505

W/O(LOCK),W/O LOCK,*SPS,DEEP MAROON,RED/MAROON,TRIM3#

main71931-14010-04×2iAE86..GT198308-198707

W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE,TRIM8#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72010-12020iAE86..RHD..EUG198505-198704

main72010-12240iAE86..LHD..GT198505-198707

main72010-12280iAE86..RHD..EUG198308-198505

W/SPORTS SEAT

main72010-12290iAE86..LHD..GT198308-198505

W/SPORTS SEAT

main72010-12350iAE86..RHD..EUG198308-198505

main72010-12360iAE86..RHD..EUG198308-198505

W/*LUS

main72010-12370iAE86..LHD..SR;AE86..LHD..GT..EUR198305-198505

main72010-12380iAE86..RHD..SR198305-198704

main72010-12390iAE86..RHD..SR198305-198505

W/*LUS

main72010-12440iAE86..RHD..GT..GEN198308-198505

main72010-12500iAE86..RHD..SR198505-198704

W/*LUS

main72010-12510iAE86..RHD..GT..GEN198505-198704

72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-18015×2iAE86198305-198707

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72020-12230iAE86..LHD..GT198505-198707

main72020-12290iAE86..LHD..GT198308-198505

W/SPORTS SEAT

main72020-12300iAE86..RHD..EUG198308-198505

W/SPORTS SEAT

main72020-12320iAE86..RHD..EUG198505-198704

main72020-12370iAE86..LHD..SR198505-198704

main72020-12380iAE86..LHD..SR;AE86..LHD..GT..EUR198305-198505

W/*LUS

main72020-12390iAE86..RHD..EUG198308-198505

W/O SPORTS SEAT

main72020-12400iAE86..RHD..SR198305-198704

main72020-12440iAE86..RHD..GT..GEN198308-198704

main72020-12500iAE86..LHD..SR198505-198704

W/*LUS

72210CABLE ASSY, SEAT TRACK CONTROL

main72210-14090iAE86..LHD198305-198707

main72210-14100iAE86..RHD198305-198704

72457AKNOB, SEAT ADJUSTER

main72457-14040-01iAE86..GEN,ME;AE86..LHD..EUR198505-198707

BLACK,BLACK,TRIM2#

main72457-14040-04iAE86198305-198505

BLUE,BLUE,TRIM8#

main72457-14040-12iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-12090-01iAE86198505-198707

RH,BLACK,BLACK,TRIM2#

main72525-12090-02iAE86198305-198505

RH,DEEP MAROON,RED/MAROON,TRIM3#

main72525-12090-04iAE86198305-198707

RH,BLUE,BLUE,TRIM8#

main72526-12030-01iAE86198505-198707

LH,BLACK,BLACK,TRIM2#

main72526-12030-02iAE86198305-198505

LH,DEEP MAROON,RED/MAROON,TRIM3#

main72526-12030-04iAE86198305-198707

LH,BLUE,BLUE,TRIM8#

72551COVER, RECLINING HINGE, NO.1

main72551-12070×2iAE86198305-198707

72553COVER, RECLINING PEDAL

main72553-12040iAE86198305-198707

72760AADJUSTER ASSY, LUMBAR SUPPORT

main72750-12030iAE86..RHD..SR;AE86..RHD..EUG198305-198505

main72760-12030iAE86..LHD..SR198505-198704

72791LEVER, LUMBAR SUPPORT

main72791-22020-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main72791-22020-02iAE86..SR;AE86..GT..EUR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main72791-22020-04iAE86..SR198505-198704

BLUE,BLUE,TRIM8#

9015480002

main90154-80002

9016840011

main90168-40011

9017908073

main90179-08073

9038612018

main90386-12018

9052001002

main90520-01002

9165640616

main91656-40616

9324954006

main93249-54006

9354054012

main93540-54012

9356055014

main93560-55014

9616000800

main96160-00800

44 parts on this diagram · 3 diagrams in section
