INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

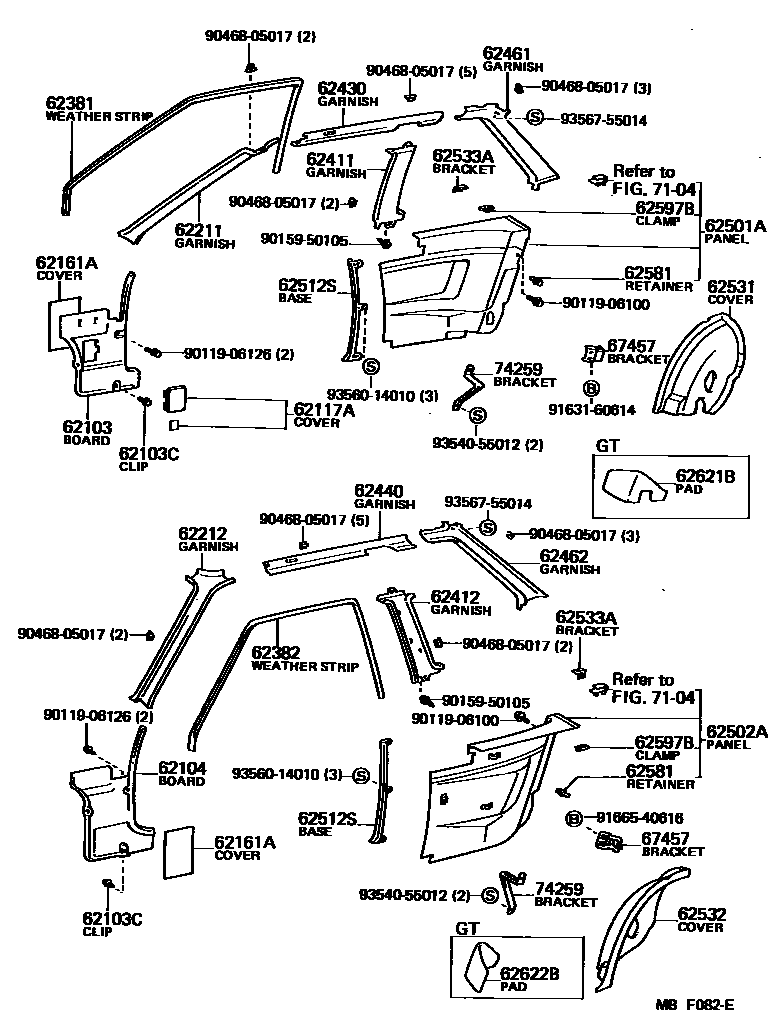

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-12100-01i198505-198704
BLACK,BLACK,TRIM2#
main62101-12100-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62101-12100-04i198305-198704
BLUE,BLUE,TRIM8#
main62101-12110-01i198505-198707
BLACK,BLACK,TRIM2#
sub62101-12110
main62101-12110-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62101-12110
main62101-12110-04i198305-198707
BLUE,BLUE,TRIM8#
sub62101-12110
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-07041-01i198505-198707
BLACK,BLACK,TRIM2#
sub90467-07041
main90467-07041-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub90467-07041
main90467-07041-04i198305-198707
BLUE,BLUE,TRIM8#
sub90467-07041
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-12100-01i198505-198704
BLACK,BLACK,TRIM2#
main62102-12100-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62102-12100-04i198305-198704
BLUE,BLUE,TRIM8#
main62102-12110-01i198505-198707
BLACK,BLACK,TRIM2#
sub62102-12110
main62102-12110-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62102-12110
main62102-12110-04i198305-198707
BLUE,BLUE,TRIM8#
sub62102-12110
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12010-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62117-12010
main62117-12050-02i198305-198503
DEEP MAROON,RED/MAROON,TRIM3#
sub62117-12050
main62117-12050-04i198305-198503
BLUE,BLUE,TRIM8#
sub62117-12050
main62117-12052-02i198503-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62117-12052-04i198503-198505
BLUE,BLUE,TRIM8#
main62117-12060-02i198308-198501
*WEG,DEEP MAROON,RED/MAROON,TRIM3#
main62117-12060-04i198308-198501
*WEG,BLUE,BLUE,TRIM8#
main62117-12070-01i198505-198707
BLACK,BLACK,TRIM2#
sub62117-12070
main62117-12070-04i198505-198707
BLUE,BLUE,TRIM8#
sub62117-12070
main62117-12080-01i198505-198704
BLACK,BLACK,TRIM2#
sub62117-12080
main62117-12080-04i198305-198704
BLUE,BLUE,TRIM8#
sub62117-12080
62161ACOVER, COWL SIDE TRIM SERVICE HOLE
main62161-12050i198305-198707
62211GARNISH, FRONT PILLAR, RH
main62211-12140-01i198505-198707
BLACK,BLACK,TRIM2#
sub62211-12140
main62211-12140-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62211-12140
main62211-12140-04i198305-198707
BLUE,BLUE,TRIM8#
sub62211-12140
main62211-12150-01i198505-198704
BLACK,BLACK,TRIM2#
main62211-12150-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62211-12150-04i198305-198704
BLUE,BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62212-12140-01i198505-198704
BLACK,BLACK,TRIM2#
main62212-12140-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62212-12140-04i198305-198704
BLUE,BLUE,TRIM8#
main62212-12150-01i198505-198707
BLACK,BLACK,TRIM2#
sub62212-12150
main62212-12150-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62212-12150
main62212-12150-04i198305-198707
BLUE,BLUE,TRIM8#
sub62212-12150
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-12140i198305-198307
main62381-12160i198307-198707
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-12150i198305-198307
main62382-12170i198307-198707
62411GARNISH, CENTER PILLAR, RH
main62411-12240-02i198305-198311
W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62411-12320
main62411-12240-04i198305-198311
W/*ELR,BLUE,BLUE,TRIM8#
sub62411-12320
main62411-12260-02i198305-198309
W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62411-12330
main62411-12260-04i198305-198309
W/*ELR,BLUE,BLUE,TRIM8#
sub62411-12330
main62411-12320-01i198505-198707
BLACK,BLACK,TRIM2#
sub62411-12320
main62411-12320-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62411-12320
main62411-12320-04i198305-198707
BLUE,BLUE,TRIM8#
sub62411-12320
main62411-12330-01i198505-198704
BLACK,BLACK,TRIM2#
sub62411-12330
main62411-12330-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62411-12330
main62411-12330-04i198305-198704
BLUE,BLUE,TRIM8#
sub62411-12330
62412GARNISH, CENTER PILLAR, LH
main62412-12240-02i198305-198311
W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62412-12320
main62412-12240-04i198305-198311
W/*ELR,BLUE,BLUE,TRIM8#
sub62412-12320
main62412-12260-02i198305-198309
W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62412-12330
main62412-12260-04i198305-198309
W/*ELR,BLUE,BLUE,TRIM8#
sub62412-12330
main62412-12320-01i198505-198707
BLACK,BLACK,TRIM2#
sub62412-12320
main62412-12320-02i198305-198505
DARK MAROON,RED/MAROON
sub62412-12320
main62412-12320-04i198305-198707
BLUE,BLUE,TRIM8#
sub62412-12320
main62412-12330-01i198505-198704
BLACK,BLACK,TRIM2#
sub62412-12330
main62412-12330-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62412-12330
main62412-12330-04i198305-198704
BLUE,BLUE,TRIM8#
sub62412-12330
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-12040-01i198505-198707
BLACK,BLACK,TRIM2#
sub62431-12040
main62431-12040-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62431-12040
main62431-12040-04i198305-198707
BLUE,BLUE,TRIM8#
sub62431-12040
main62431-12050-01i198505-198707
BLACK,BLACK,TRIM2#
main62431-12050-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62431-12050-04i198305-198707
BLUE,BLUE,TRIM8#
main62431-12060-01i198505-198704
BLACK,BLACK,TRIM2#
sub62431-12060
main62431-12060-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62431-12060
main62431-12060-04i198305-198704
BLUE,BLUE,TRIM8#
sub62431-12060
main62431-12070-01i198505-198704
BLACK,BLACK,TRIM2#
main62431-12070-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62431-12070-04i198305-198704
BLUE,BLUE,TRIM8#
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-12020-01i198505-198707
BLACK,BLACK,TRIM2#
main62432-12020-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62432-12020-04i198305-198707
BLUE,BLUE,TRIM8#
main62432-12030-01i198505-198707
BLACK,BLACK,TRIM2#
sub62432-12030
main62432-12030-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62432-12030
main62432-12030-04i198305-198707
BLUE,BLUE,TRIM8#
sub62432-12030
main62432-12040-01i198505-198704
BLACK,BLACK,TRIM2#
main62432-12040-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62432-12040-04i198305-198704
BLUE,BLUE,TRIM8#
main62432-12050-01i198505-198704
BLACK,BLACK,TRIM2#
sub62432-12050
main62432-12050-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62432-12050
main62432-12050-04i198305-198704
BLUE,BLUE,TRIM8#
sub62432-12050
62461GARNISH, ROOF SIDE TRIM, RH
main62471-12140-01i198505-198707
BLACK,BLACK,TRIM2#
sub62471-12140
main62471-12140-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12140
main62471-12140-04i198305-198707
BLUE,BLUE,TRIM8#
sub62471-12140
main62471-12150-01i198505-198507
W/RR *ELR,BLACK,BLACK,TRIM2#
sub62471-12140
main62471-12150-02i198305-198505
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12140
main62471-12150-04i198305-198507
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62471-12140
main62471-12220-01i198505-198507
W/RR *ELR,BLACK,BLACK,TRIM2#
sub62471-12250
main62471-12220-02i198308-198505
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12250
main62471-12220-04i198308-198507
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62471-12250
main62471-12230-01i198505-198704
W/SUN ROOF,BLACK,BLACK,TRIM2#
sub62471-12230
main62471-12230-02i198305-198505
W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12230
main62471-12230-04i198305-198704
W/SUN ROOF,BLUE,BLUE,TRIM8#
sub62471-12230
main62471-12240-01i198505-198507
W/RR *ELR,SUN ROOF,BLACK,BLACK,TRIM2#
sub62471-12230
main62471-12240-02i198308-198505
W/RR *ELR,SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12230
main62471-12240-04i198308-198507
W/RR *ELR,SUN ROOF,BLUE,BLUE,TRIM8#
sub62471-12230
main62471-12250-01i198505-198704
BLACK,BLACK,TRIM2#
sub62471-12250
main62471-12250-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62471-12250
main62471-12250-04i198305-198704
BLUE,BLUE,TRIM8#
sub62471-12250
62462GARNISH, ROOF SIDE TRIM, LH
main62472-12140-01i198505-198707
BLACK,BLACK,TRIM2#
sub62472-12140
main62472-12140-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12140
main62472-12140-04i198305-198707
BLUE,BLUE,TRIM8#
sub62472-12140
main62472-12150-01i198505-198507
W/RR *ELR,BLACK,BLACK,TRIM2#
sub62472-12140
main62472-12150-02i198305-198505
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12140
main62472-12150-04i198305-198507
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62472-12140
main62472-12160-01i198505-198704
BLACK,BLACK,TRIM2#
sub62472-12160
main62472-12160-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12160
main62472-12160-04i198305-198704
BLUE,BLUE,TRIM8#
sub62472-12160
main62472-12230-01i198505-198507
W/RR *ELR,BLACK,BLACK,TRIM2#
sub62472-12160
main62472-12230-02i198308-198505
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12160
main62472-12230-04i198308-198507
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62472-12160
main62472-12240-01i198505-198704
W/SUN ROOF,BLACK,BLACK,TRIM2#
sub62472-12240
main62472-12240-02i198305-198505
W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12240
main62472-12240-04i198305-198704
W/SUN ROOF,BLUE,BLUE,TRIM8#
sub62472-12240
main62472-12250-01i198505-198507
W/RR *ELR,SUN ROOF,BLACK,BLACK,TRIM2#
sub62472-12240
main62472-12250-02i198308-198505
W/RR *ELR,SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#
sub62472-12240
main62472-12250-04i198308-198507
W/RR *ELR,SUN ROOF,BLUE,BLUE,TRIM8#
sub62472-12240
62501APANEL ASSY, QUARTER TRIM, RH
main62510-12680-04i198308-198408
W/*MT,BLUE,BLUE,TRIM8#
main62510-12680-12i198308-198408
W/*MT,DEEP MAROON,RED/MAROON,TRIM3#
main62510-12690-02i198305-198408
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62510-12770
main62510-12690-04i198305-198408
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62510-12770
main62510-12691-02i198408-198505
W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#
sub62510-12870
main62510-12691-04i198408-198505
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62510-12870
main62510-12700-04i198308-198408
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
sub62510-12680
main62510-12700-12i198308-198408
W/RR *ELR & *MT,DEEP MAROON,RED/MAROON,TRIM3#
sub62510-12680
main62510-12701-02i198408-198505
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12701-04i198408-198505
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
main62510-12720-02i198305-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62510-12720-04i198305-198505
BLUE,BLUE,TRIM8#
main62510-12720-12i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12730-04i198308-198408
W/*MT,BLUE,BLUE,TRIM8#
main62510-12730-12i198308-198408
W/*MT,DEEP MAROON,RED/MAROON,TRIM3#
main62510-12740-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62510-12740-04i198308-198408
BLUE,BLUE,TRIM8#
main62510-12750-02i198305-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62510-12750-04i198305-198505
BLUE,BLUE,TRIM8#
main62510-12750-12i198408-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62510-12770-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62510-12770-04i198308-198408
BLUE,BLUE,TRIM8#
main62510-12780-04i198308-198408
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
sub62510-12730
main62510-12780-12i198308-198408
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
sub62510-12730
main62510-12781-02i198408-198505
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12781-04i198408-198505
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
main62510-12790-02i198308-198408
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62510-12740
main62510-12790-04i198308-198408
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62510-12740
main62510-12791-02i198408-198505
W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#
sub62510-12880
main62510-12791-04i198408-198505
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62510-12880
main62510-12870-02i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12870-04i198408-198505
BLUE,BLUE,TRIM8#
main62510-12880-02i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12880-04i198408-198505
BLUE,BLUE,TRIM8#
main62510-12890-02i198408-198505
W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62510-12890-04i198408-198505
W/*MT,BLUE,BLUE,TRIM8#
main62510-1A010-02i198408-198505
W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62510-1A010-04i198408-198505
W/*MT,BLUE,BLUE,TRIM8#
main62510-1A020-01i198505-198704
BLACK,BLACK,TRIM2#
main62510-1A020-04i198505-198704
BLUE,BLUE,TRIM8#
main62510-1A030-01i198505-198608
BLACK,BLACK,TRIM2#
main62510-1A030-04i198505-198608
BLUE,BLUE,TRIM8#
main62510-1A040-01i198505-198608
W/RR *ELR,BLACK,BLACK,TRIM2#
main62510-1A040-04i198505-198608
W/RR *ELR,BLUE,BLUE,TRIM8#
main62510-1A041-01i198608-198704
W/RR *ELR,BLACK,BLACK,TRIM2#
main62510-1A041-04i198608-198704
W/RR *ELR,BLUE,BLUE,TRIM8#
main62510-1A050-01i198505-198704
BLACK,BLACK,TRIM2#
main62510-1A050-04i198505-198704
BLUE,BLUE,TRIM8#
main62510-1A080-01i198505-198608
BLACK,BLACK,TRIM2#
main62510-1A080-04i198505-198608
BLUE,BLUE,TRIM8#
main62510-1A090-01i198505-198608
W/RR *ELR,BLACK,BLACK,TRIM2#
main62510-1A090-04i198505-198608
W/RR *ELR,BLUE,BLUE,TRIM8#
main62510-1A091-01i198608-198704
W/RR *ELR,BLACK,BLACK,TRIM2#
main62510-1A091-04i198608-198704
W/RR *ELR,BLUE,BLUE,TRIM8#
main62510-1A170-01i198608-198707
BLACK,BLACK,TRIM2#
main62510-1A170-04i198608-198707
BLUE,BLUE,TRIM8#
main62510-1A180-01i198608-198704
BLACK,BLACK,TRIM2#
main62510-1A180-04i198608-198704
BLUE,BLUE,TRIM8#
62502APANEL ASSY, QUARTER TRIM, LH
main62520-12660-04i198308-198408
W/*MT,BLUE,BLUE,TRIM8#
main62520-12660-12i198308-198408
W/*MT,DEEP MAROON,RED/MAROON,TRIM3#
main62520-12670-02i198305-198408
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62520-12750
main62520-12670-04i198305-198408
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62520-12750
main62520-12671-02i198408-198505
W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#
sub62520-12850
main62520-12671-04i198408-198505
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62520-12850
main62520-12680-04i198308-198408
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
sub62520-12660
main62520-12680-12i198308-198408
W/RR *ELR & *MT,DEEP MAROON,RED/MAROON,TRIM3#
sub62520-12660
main62520-12681-02i198408-198505
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12681-04i198408-198505
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
main62520-12700-02i198305-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62520-12700-04i198305-198505
BLUE,BLUE,TRIM8#
main62520-12700-12i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12710-04i198308-198408
W/*MT,BLUE,BLUE,TRIM8#
main62520-12710-12i198308-198408
W/*MT,DEEP MAROON,RED/MAROON,TRIM3#
main62520-12720-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62520-12720-04i198308-198408
BLUE,BLUE,TRIM8#
main62520-12730-02i198305-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62520-12730-04i198305-198505
BLUE,BLUE,TRIM8#
main62520-12730-12i198408-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62520-12750-02i198308-198408
DEEP MAROON,RED/MAROON,TRIM3#
main62520-12750-04i198308-198408
BLUE,BLUE,TRIM8#
main62520-12760-04i198308-198408
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
sub62520-12710
main62520-12760-12i198308-198408
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
sub62520-12710
main62520-12761-02i198408-198505
W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12761-04i198408-198505
W/RR *ELR & *MT,BLUE,BLUE,TRIM8#
main62520-12770-02i198308-198408
W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub62520-12720
main62520-12770-04i198308-198408
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62520-12720
main62520-12771-02i198408-198505
W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#
sub62520-12860
main62520-12771-04i198408-198505
W/RR *ELR,BLUE,BLUE,TRIM8#
sub62520-12860
main62520-12850-02i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12850-04i198408-198505
BLUE,BLUE,TRIM8#
main62520-12860-02i198408-198505
DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12860-04i198408-198505
BLUE,BLUE,TRIM8#
main62520-12870-02i198408-198505
W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12870-04i198408-198505
W/*MT,BLUE,BLUE,TRIM8#
main62520-12880-02i198408-198505
W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#
main62520-12880-04i198408-198505
W/*MT,BLUE,BLUE,TRIM8#
main62520-12890-01i198505-198704
BLACK,BLACK,TRIM2#
main62520-12890-04i198505-198704
BLUE,BLUE,TRIM8#
main62520-1A010-01i198505-198608
BLACK,BLACK,TRIM2#
main62520-1A010-04i198505-198608
BLUE,BLUE,TRIM8#
main62520-1A020-01i198505-198608
W/RR *ELR,BLACK,BLACK,TRIM2#
main62520-1A020-04i198505-198608
W/RR *ELR,BLUE,BLUE,TRIM8#
main62520-1A021-01i198608-198704
W/RR *ELR,BLACK,BLACK,TRIM2#
main62520-1A021-04i198608-198704
W/RR *ELR,BLUE,BLUE,TRIM8#
main62520-1A030-01i198505-198704
BLACK,BLACK,TRIM2#
main62520-1A030-04i198505-198704
BLUE,BLUE,TRIM8#
main62520-1A060-01i198505-198608
BLACK,BLACK,TRIM2#
main62520-1A060-04i198505-198608
BLUE,BLUE,TRIM8#
main62520-1A070-01i198505-198608
W/RR *ELR,BLACK,BLACK,TRIM2#
main62520-1A070-04i198505-198608
W/RR *ELR,BLUE,BLUE,TRIM8#
main62520-1A071-01i198608-198704
W/RR *ELR,BLACK,BLACK,TRIM2#
main62520-1A071-04i198608-198704
W/RR *ELR,BLUE,BLUE,TRIM8#
main62520-1A150-01i198608-198707
BLACK,BLACK,TRIM2#
main62520-1A150-04i198608-198707
BLUE,BLUE,TRIM8#
main62520-1A160-01i198608-198704
BLACK,BLACK,TRIM2#
main62520-1A160-04i198608-198704
BLUE,BLUE,TRIM8#
62512SBASE, QUARTER TRIM, FRONT
main62517-12120-01i198505-198707
RH,BLACK,BLACK,TRIM2#
sub62517-12120
main62517-12120-02i198305-198505
RH,DEEP MAROON,RED/MAROON,TRIM3#
sub62517-12120
main62517-12120-04i198305-198707
RH,BLUE,BLUE,TRIM8#
sub62517-12120
main62518-12060-01i198505-198707
LH,BLACK,BLACK,TRIM2#
sub62518-12060
main62518-12060-02i198305-198505
LH,DEEP MAROON,RED/MAROON,TRIM3#
sub62518-12060
main62518-12060-04i198305-198707
LH,BLUE,BLUE,TRIM8#
sub62518-12060
62531COVER, WHEEL HOUSE TRIM, RH
main62610-12070-01i198505-198704
BLACK,BLACK,TRIM2#
sub62610-12070
main62610-12070-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62610-12070
main62610-12070-04i198305-198704
BLUE,BLUE,TRIM8#
sub62610-12070
main62610-12090-01i198505-198704
BLACK,BLACK,TRIM2#
main62610-12090-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62610-12090-04i198305-198704
BLUE,BLUE,TRIM8#
62532COVER, WHEEL HOUSE TRIM, LH
main62620-12060-01i198505-198704
BLACK,BLACK,TRIM2#
sub62620-12060
main62620-12060-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub62620-12060
main62620-12060-04i198305-198704
BLUE,BLUE,TRIM8#
sub62620-12060
main62620-12070-01i198505-198704
BLACK,BLACK,TRIM2#
main62620-12070-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62620-12070-04i198305-198704
BLUE,BLUE,TRIM8#
62533ABRACKET, QUARTER TRIM CLAMP
main62533-12100i198305-198704
62581RETAINER, QUARTER TRIM
main67771-12010i198305-198308
main67771-12020i198308-198707
main67771-16020i198308-198704
62597BCLAMP, QUARTER TRIM
main62597-12030i198305-198707
62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
main62621-12040i198308-198707
62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
main62622-12010i198308-198707
sub62621-12040
67457BRACKET, QUARTER REAR GUIDE, UPPER
main67457-12040i198308-198704
7104
74259BRACKET, REAR SIDE ARMREST SUPPORT
main74259-12010i198308-198707
9011906100
main90119-06100
9011906126
main90119-06126
9015950105
main90159-50105
9046805017
main90468-05017
9163160614
main91631-60614
9166540616
main91665-40616
9354055012
main93540-55012
9356014010
main93560-14010
9356755014
main93567-55014

37 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
