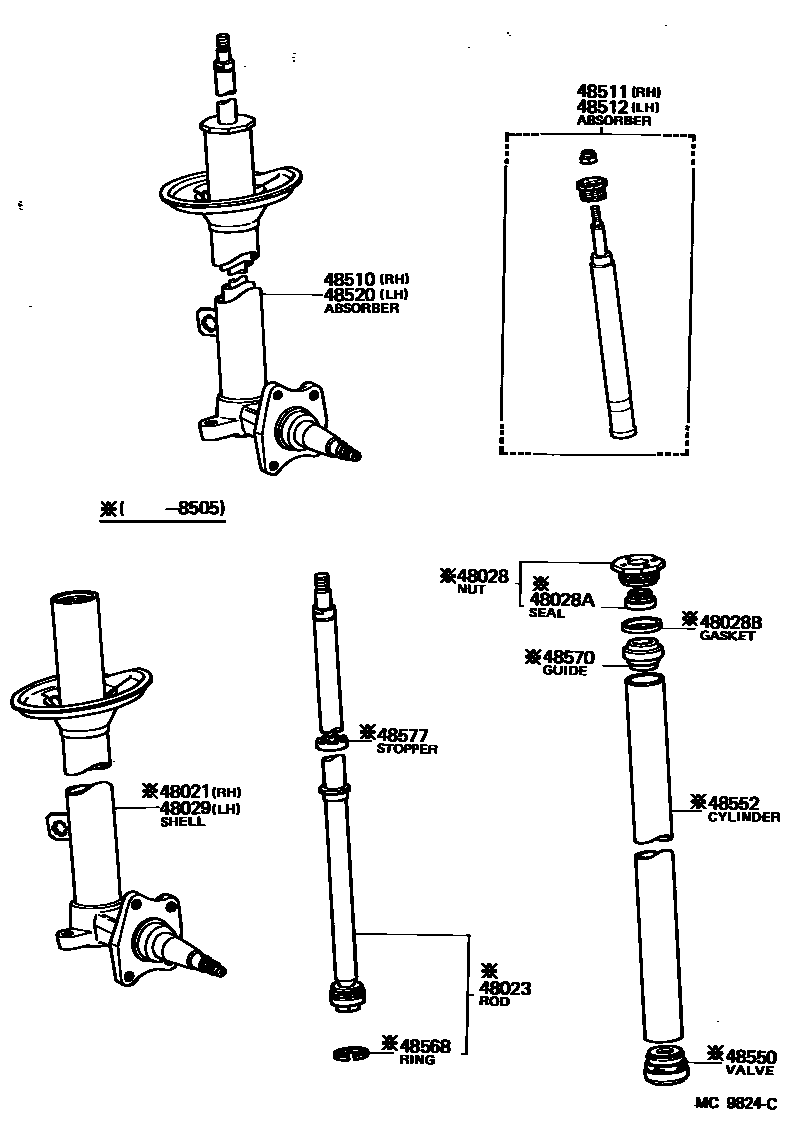

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-12170iAE86198305-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12240iAE86198305-198505

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iAE86198305-198505

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iAE86198305-198505

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iAE86198305-198505

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-12050iAE86198305-198505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12270iAE86198305-198505

sub48510-12280

main48510-12490iAE86198505-198707

sub48510-12491

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12230iAE86198505-198707

MARK 48511-12230

main48511-19135iAE86198305-198505

MARK 48511-12190

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12230iAE86198505-198707

MARK 48511-12230

main48511-19135iAE86198305-198505

MARK 48511-12190

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12140iAE86198305-198505

sub48520-12150

main48520-12360iAE86198505-198707

sub48520-12361

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-12230iAE86198305-198505

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12030iAE86198305-198505

48568RING, SHOCK ABSORBER PISTON

main48568-22021iAE86198305-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-14010iAE86198305-198505

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iAE86198305-198505

15 parts on this diagram · 2 diagrams in section
