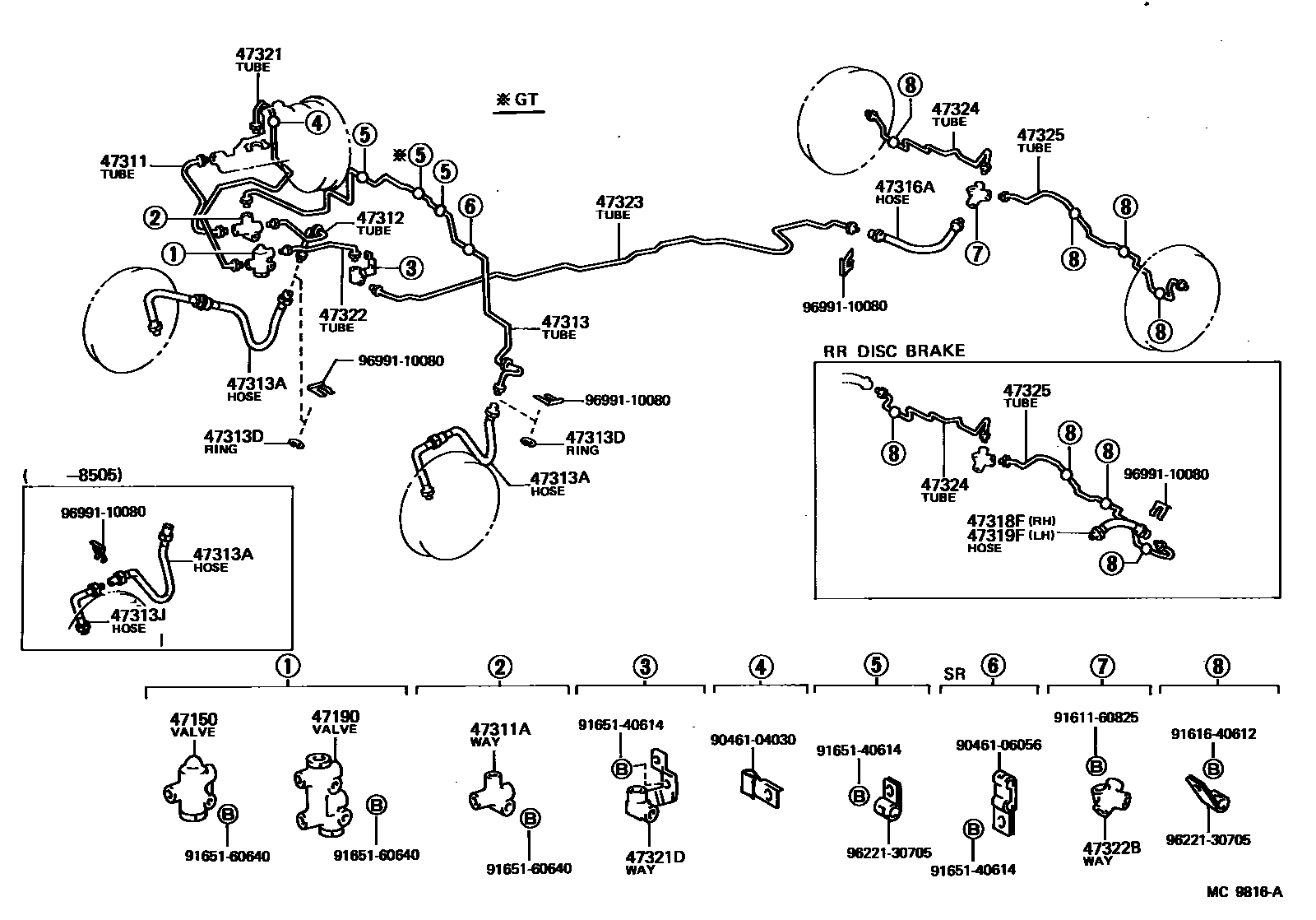

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12041iAE86..SR..GEN198305-198704

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12020iAE86..SR..(ARL,EUR)198305-198505

sub47190-12050

main47190-12040iAE86..GT198308-198707

sub47190-22030

main47190-22040iAE86..EUR198505-198704

47311TUBE, FRONT BRAKE, NO.1

main47312-12160iAE86..RHD198305-198704

main47312-12170iAE86..LHD..(GEN,ME);AE86..LHD..(EUG,FRG)198305-198707

main47312-12180iAE86..SDZ198305-198608

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iAE86..SR..GEN198305-198704

47312TUBE, FRONT BRAKE, NO.2

main47314-12210iAE86..RHD198305-198704

main47314-12230iAE86..LHD..SR;AE86..LHD..GT..(GEN,ME);AE86..LHD..GT..(EUG,SDZ)198305-198707

main47314-12240iAE86..FRG198505-198704

47313TUBE, FRONT BRAKE, NO.3

main47315-12350iAE86..RHD..SR198305-198704

main47315-12360iAE86..RHD..GT198308-198704

main47315-12370iAE86..LHD198305-198408

sub47315-12371

main47315-12371iAE86..LHD198408-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02393iAE86198305-198505

main90947-02476iAE86198505-198707

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200iAE86198305-198707

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02224iAE86198305-198505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32805iAE86198305-198707

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32555iAE86..GT198308-198707

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32555iAE86..GT198308-198707

47321TUBE, REAR BRAKE, NO.1

main47322-12140iAE86..RHD198305-198704

main47322-12150iAE86..LHD..(GEN,ME);AE86..LHD..(EUG,FRG)198305-198707

main47322-12160iAE86..SDZ198305-198608

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10056iAE86..LHD198305-198707

main90412-10107iAE86..RHD198305-198704

47322TUBE, REAR BRAKE, NO.2

main47326-12020iAE86..RHD198305-198704

main47326-12030iAE86..LHD..SR;AE86..LHD..GT..(GEN,ME);AE86..LHD..GT..(EUG,SDZ)198305-198707

main47326-12050iAE86..SDZ;AE86..2D..EUG198504-198505

FRG SPEC

main47326-12050iAE86..FRG198505-198704

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iAE86198305-198707

47323TUBE, REAR BRAKE, NO.3

main47323-12150iAE86..GT198308-198707

main47323-12160iAE86..SR198305-198704

47324TUBE, REAR BRAKE, NO.4

main47324-12120iAE86..SR..GEN198305-198406

main47324-12130iAE86..SR..(ARL,EUR)198305-198704

main47324-12150iAE86..GT198308-198707

47325TUBE, REAR BRAKE, NO.5

main47325-12120iAE86..SR..GEN198305-198406

main47325-12130iAE86..SR..(ARL,EUR)198305-198704

main47325-12150iAE86..GT198308-198707

9046104030

main90461-04030

9046106056

main90461-06056

9161160825

main91611-60825

9161640612

main91616-40612

9165140614

main91651-40614

9165160640

main91651-60640

9622130705

main96221-30705

9699110080

main96991-10080

27 parts on this diagram · 2 diagrams in section
