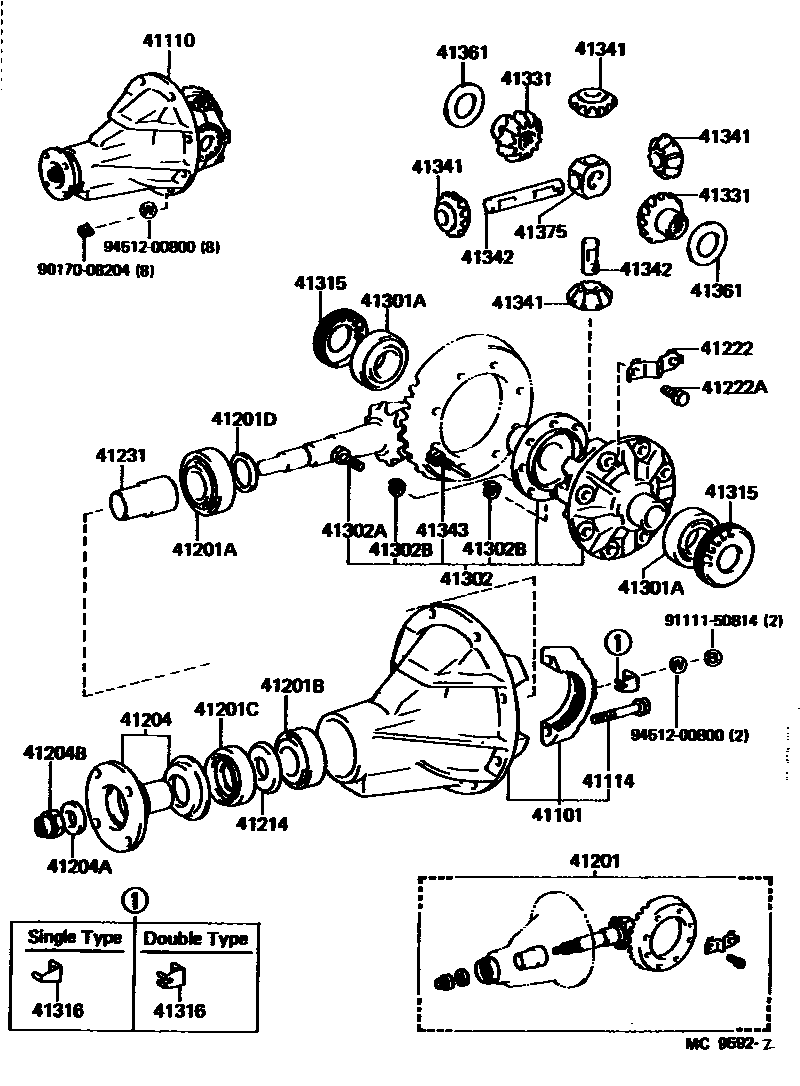

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*AXC=T283,*FGR=43:10
*AXC=T283,*FGR=43:10,W/LSD
*AXC=T283,*FGR=43:10,W/LSD
*AXC=S314 *FGR=43:11
*AXC=T282,*FGR=43:10
*AXC=T282,*FGR=43:10
*AXC=T283,*FGR=43:10,W/LSD
*AXC=T283,*FGR=43:10,W/LSD
*AXC=T282,*FGR=43:10
*AXC=T282,*FGR=43:10
*AXC=S292,*FGR=41:10
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:10=4.300
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.36
T=2.39,MARK 06,T=2.39
T=2.42,MARK 07,T=2.42
T=2.43,MARK 08,T=2.45
T=2.48,MARK 09,T=2.48
T=2.51,MARK 10,T=2.51
T=2.54,MARK 11,T=2.54
T=2.57,MARK 12,T=2.57
T=2.60,MARK 13,T=2.60
T=2.63,MARK 14,T=2.63
T=2.66,MARK 15,T=2.66
T=2.69,MARK 16,T=2.69
T=2.52,T=2.52
T=2.55,T=2.55
T=2.58,T=2.58
T=2.61,T=2.61
T=2.64,T=2.64
T=2.67,T=2.67
T=2.70,T=2.70
T=2.73,T=2.73
T=2.76,T=2.76
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
NSK
KOYO
KOYO
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W/LSD
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41302BWASHER, SPRING(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W/LSD
W/LSD
41342SHAFT, REAR DIFFERENTIAL PINION
L=94
L=24
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.60,W/LSD,T=1.60
T=1.65,W/LSD,T=1.65
T=1.70,W/LSD,T=1.70
T=1.75,W/LSD,T=1.75
T=1.80,W/LSD,T=1.80
T=1.85,W/LSD,T=1.85
T=1.00,MARK 02,T=1.0
T=1.10,MARK 03,T=1.1
T=1.20,MARK 04,T=1.2
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
41375HOLDER, REAR DIFFERENTIAL PINION SHAFT
9017008204
main90170-08204
9111150814
main91111-50814
9451200800
main94512-00800
30 parts on this diagram · 5 diagrams in section
