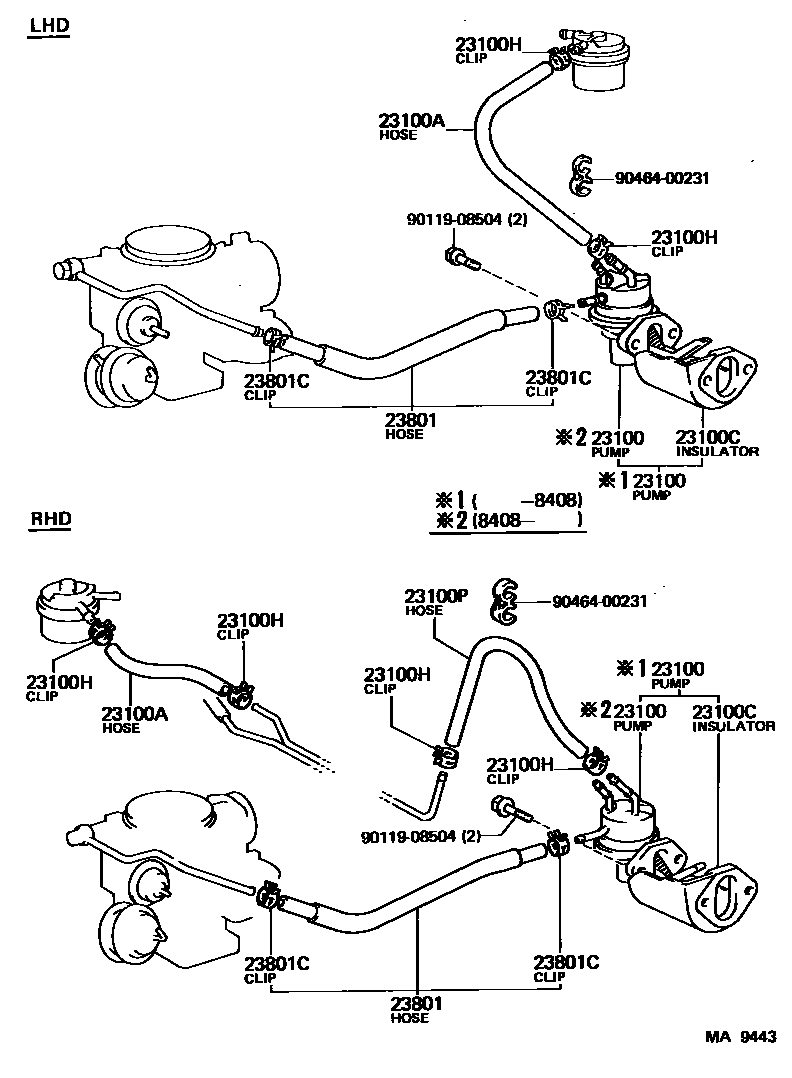

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-15042i4A,4AC..AE86198408-198704

main23100-19145i4A,4AC..AE86198305-198311

main23100-19146i4A,4AC..AE86198311-198408

23100AHOSE, FUEL

main95332-06010i4A,4AC..AE86..RHD198305-198701

*H,L=90

main95332-06030i4A,4AC..AE86..LHD198305-198701

*H,L=220

main95333-06010i4A..AE86..RHD198701-198704

*H,L=90

main95333-06030i4A..AE86..LHD198701-198704

*H,L=220

23100CINSULATOR, FUEL PUMP

main23915-15010i4A,4AC..AE86198305-198502

main23915-15011i4A,4AC..AE86198502-198704

23100HCLIP(FOR FUEL HOSE)

main96132-30600×4i4A,4AC..AE86198305-198704

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06030i4A,4AC..AE86..RHD198404-198701

*H,L=260

main95332-06040i4A,4AC..AE86..RHD198305-198404

*H,L=320

main95333-06030i4A..AE86..RHD198701-198704

*H,L=260

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i4A,4AC..AE86198305-198704

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i4A,4AC..AE86198305-198704

9011908504

main90119-08504

9046400231

main90464-00231

9 parts on this diagram · 1 diagram in section
