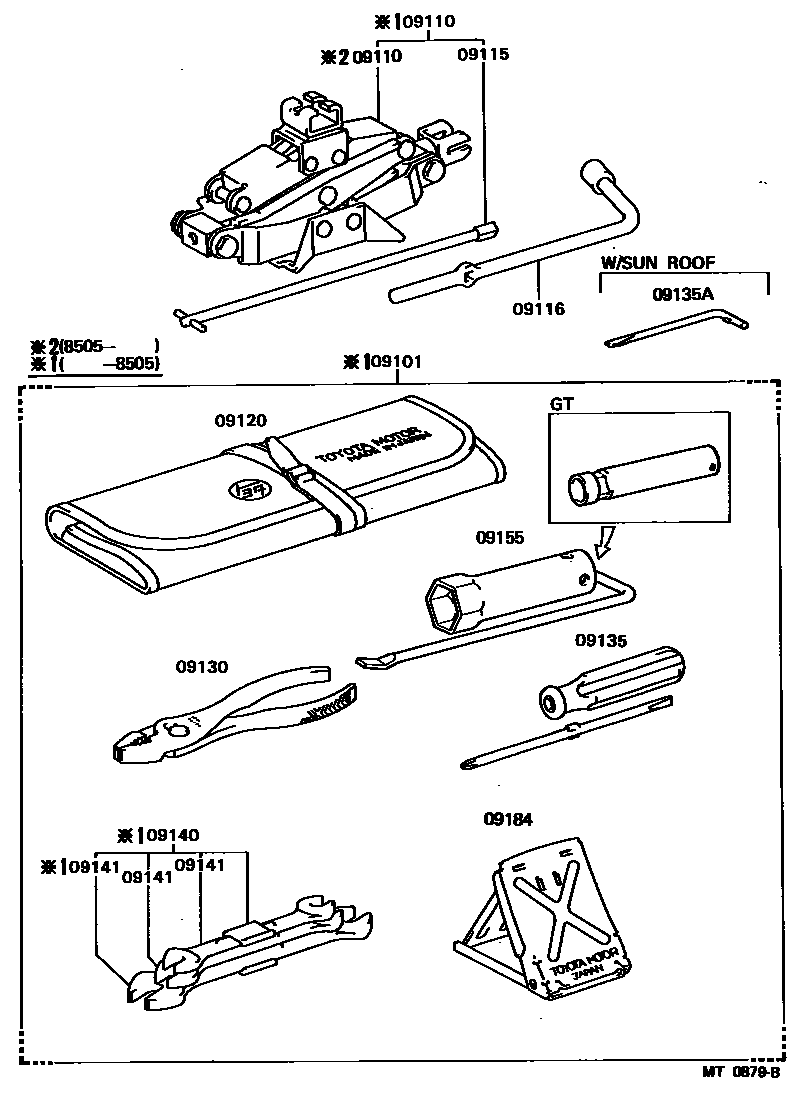

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-10024iAE86..SR198305-198505

main09102-10026iAE86..GT198308-198505

09110JACK ASSY

main09111-12080iAE86198505-198707

sub09111-22080

sub09113-44010

main09118-20011iAE86198305-198505

sub09111-20041

sub09115-32010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iAE86198305-198707

main09115-32010iAE86198312-198505

09116LEVER, JACK HANDLE

main09116-16010iAE86198305-198707

09120BAG, TOOL

main09120-10030iAE86198505-198707

main09120-12011iAE86198305-198505

09130PLIERS

main99913-11500iAE86198305-198707

09135DRIVER, SCREW

main99915-10700iAE86198305-198707

09135ABIT, SCREW DRIVER

main09135-00012iAE86198305-198707

W/SUN ROOF

09140SPANNER SET

main09140-12011iAE86198305-198505

09141SPANNER

main99914-10810iAE86198305-198707

8 X 10,8X10

main99914-11012iAE86198305-198505

10 X 12,10X12

main99914-11214iAE86198505-198707

12 X 14,12X14

main99914-11417iAE86198305-198505

14 X 17,14X17

09155WRENCH, SPARK PLUG

main09155-00130iAE86..GT198308-198707

main09155-44020iAE86..SR198305-198704

09184STOPPER, WHEEL

main09184-00010iAE86198305-198707

12 parts on this diagram · 1 diagram in section
