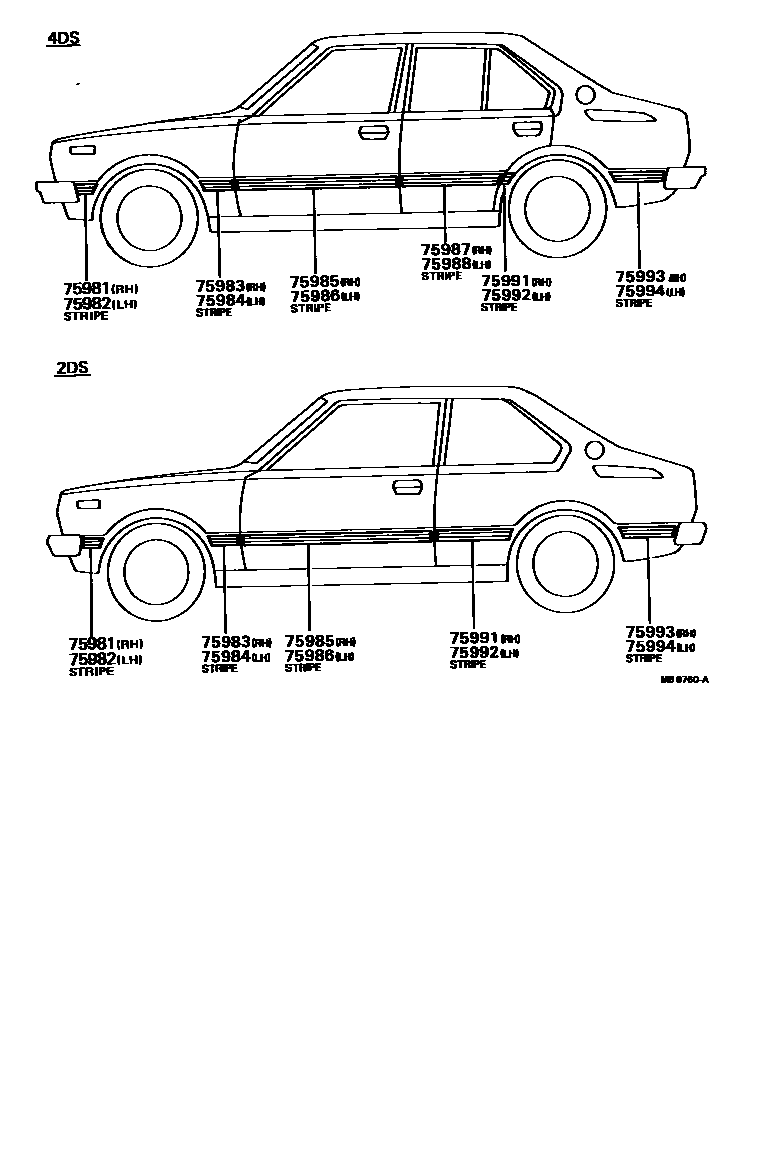

BODY STRIPE
75981STRIPE, FRONT FENDER, RH NO.1
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75982STRIPE, FRONT FENDER, LH NO.1
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75983STRIPE, FRONT FENDER, RH NO.2
75984STRIPE, FRONT FENDER, LH NO.2
75985STRIPE, FRONT DOOR, RH
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75986STRIPE, FRONT DOOR, LH
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75987STRIPE, REAR DOOR, RH
75988STRIPE, REAR DOOR, LH
75991STRIPE, QUARTER, RH NO.1
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75992STRIPE, QUARTER, LH NO.1
BLACK-RED,BLACK
IVORY-RED,IVORY
BLACK-IVORY,BLACK
WHITE-RED,IVORY
BLACK-WHITE,BLACK
75993STRIPE, QUARTER, RH NO.2
75994STRIPE, QUARTER, LH NO.2
12 parts on this diagram · 2 diagrams in section
