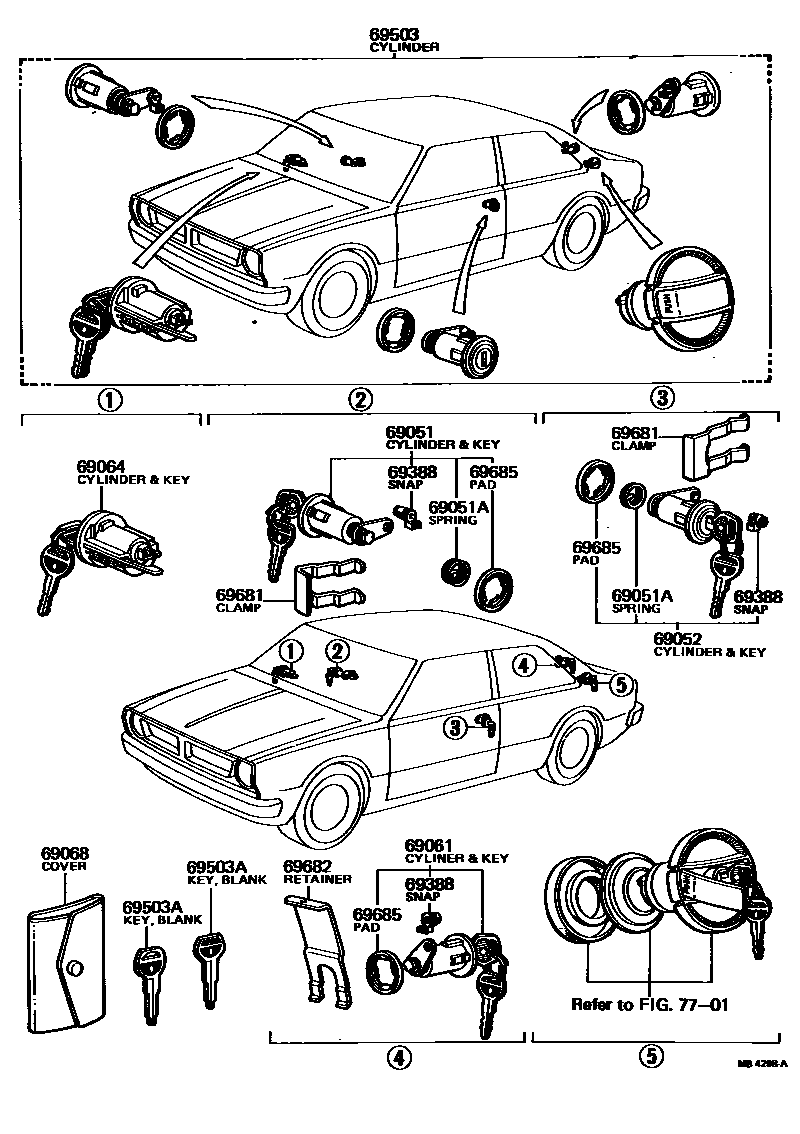

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-19065iKE30,35,5#,TE3#,47,51197408-198003

sub69051-19066

main69051-19066iKE30,55,TE3#198003-198105

main69051-19075iKE36,38197408-198105

69051ASPRING, DOOR LOCK CYLINDER

main90508-09279iKE3#,5#,TE3#,47,51197408-198107

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-19065iKE30,35,5#,TE3#,47,51197408-198003

sub69052-19066

main69052-19066iKE30,55,TE3#198003-198105

main69052-19075iKE36,38197408-198105

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-19015iKE30,5#,TE31,51..LB,SED197408-198105

main69055-19025iKE35,55,TE37..HT197408-198107

main69055-19035iTE47197408-197902

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12010iKE30,35,TE3#,47197408-197505

sub69057-12011

main69057-12011iKE30,35,5#,TE3#,47,51197505-198107

main69057-13010iKE36,38197408-198107

sub69057-96440

69068COVER SUB-ASSY, KEY

main69555-20010iKE3#,TE3#,47197408-197508

69388SNAP, ROD(FOR DOOR LOCK)

main69377-12010iTE47197708-197902

LUGGAGE DOOR

main69377-30020iKE30,35,5#,TE3#,47,51197708-198107

FR DOOR

69503CYLINDER SET, LOCK

main69005-12030iKE30,TE31197408-197505

sub69005-12031

main69005-12031iKE30,TE31197505-197508

sub69005-12032

main69005-12032iKE30,50,TE31,51197508-198107

main69005-12050iTE47197408-197505

sub69005-12051

main69005-12051iTE47197505-197508

sub69005-12052

main69005-12052iTE47..GEN197508-197902

main69005-12060iKE35,TE37197408-197505

sub69005-12061

main69005-12061iKE35,TE37197505-197508

sub69005-12062

main69005-12062iKE35,55,TE37..HT..(ARL,GEN,SA)197508-198107

main69005-12110iKE30,50,TE51..EUG197706-197908

main69005-12120iKE35..EUG197706-197908

main69005-12130iTE47..EUG197706-197902

main69005-13020iKE36197408-197508

sub69005-13021

main69005-13021iKE36,38197508-198107

main69005-13030iKE36197408-197508

WEST GERMANY SPEC

sub69005-13031

main69005-13031iKE36197508-197908

WEST GERMANY SPEC

69503AKEY, BLANK

main90999-00066iKE30,35,5#,TE3#,47,51197408-198107

MASTER KEY,MASTER KEY

sub90999-00085

main90999-00067iKE36,38197408-198107

MASTER KEY,MASTER KEY

main90999-00068iKE30,35,5#,TE3#,47,51197408-198107

SUB KEY,SUB KEY

sub90999-00094

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iKE3#,5#,TE3#,47,51197408-198107

69682RETAINER, LOCK CYLINDER

main69551-13020iKE36,38197408-198107

main69561-12010iKE30,55,TE31..SED197408-198107

main69561-12030iTE47197408-197902

main69561-12040iKE35,55,TE37..HT197408-198107

main69561-12060iKE5#,TE51..LB197603-197908

69685PAD, LOCK CYLINDER

main69513-12020iKE30,55,TE3#198003-198107

FR

main69553-13010iKE36197408-197908

BACK DOOR,WEST GERMANY SPEC

main69553-13020iKE36,38197408-198107

BACK DOOR

main69685-12010iKE3#,5#,TE3#,47,51197408-198003

main69685-12010iKE3#,55,TE3#198003-198107

LUGGAGE DOOR

7701

13 parts on this diagram · 2 diagrams in section
