PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

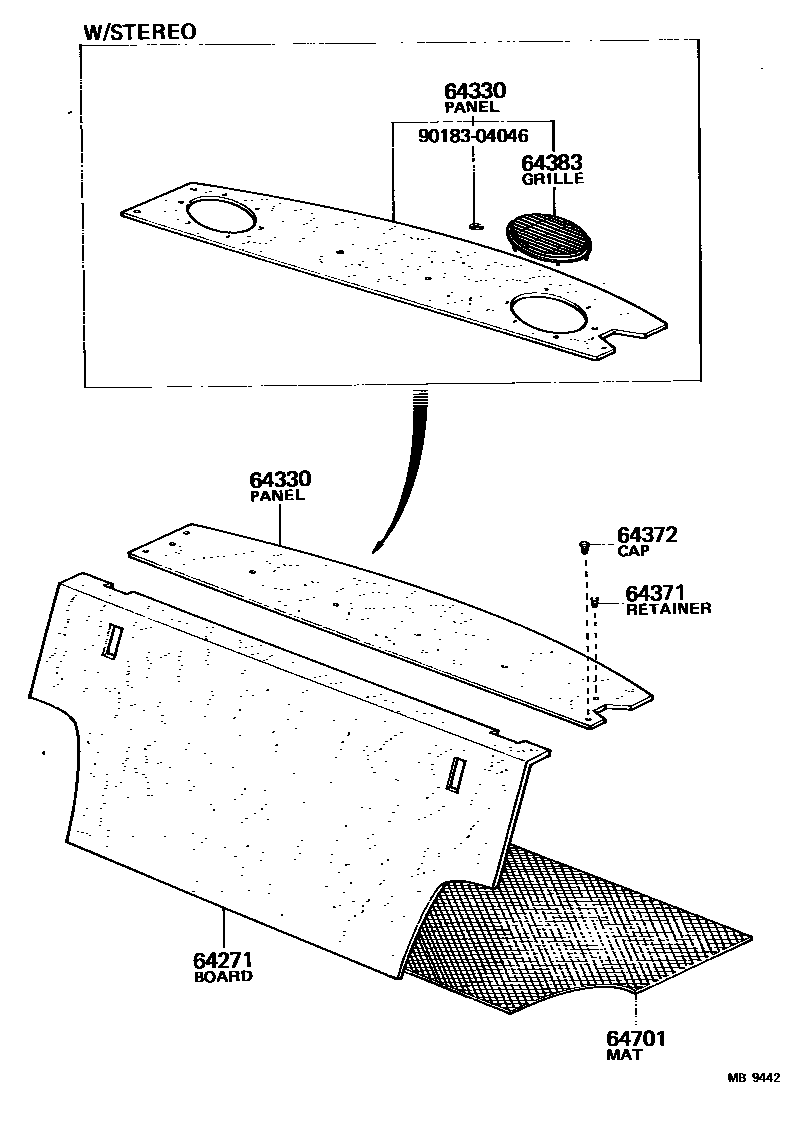

Parts diagram
64271BOARD, ROOM PARTITION, NO.1
main64271-12030i197408-198107
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-12100i197408-197508
sub64330-12110
main64330-12100-01i197508-197701
BLACK,BLACK,TRIM0#,2#
sub64330-12100
sub64330-12110
main64330-12100-06i197508-197701
BROWN,BROWN,TRIM0#,4#
sub64330-12100
sub64330-12110
main64330-12100-11i197701-198107
BLACK,BLACK,TRIM2#
sub64330-12100
sub64330-12110
main64330-12110i197408-197508
W/STEREO
main64330-12110-01i197508-197701
W/STEREO,BLACK,BLACK,TRIM0#,2#
sub64330-12110
main64330-12110-04i197805-197908
W/STEREO,BLUE,BLUE,TRIM8#
sub64330-12110
main64330-12110-06i197508-197701
W/STEREO,BROWN,BROWN,TRIM0#,4#
sub64330-12110
main64330-12110-11i197701-197908
W/STEREO,BLACK,BLACK,TRIM2#
sub64330-12110
main64330-12110-16i197805-197908
W/STEREO,LIGHT BROWN,BROWN,TRIM4#
sub64330-12110
main64330-12120i197408-197701
main64330-12120-04i197805-197902
BLUE,BLUE,TRIM8#
sub64330-12120
main64330-12120-11i197701-197902
BLACK,BLACK,TRIM2#
sub64330-12120
main64330-12120-16i197805-197902
LIGHT BROWN,BROWN,TRIM4#
sub64330-12120
main64330-12130i197408-197701
W/STEREO
main64330-12130-04i197805-197902
W/STEREO,BLUE,BLUE,TRIM8#
sub64330-12130
main64330-12130-06i197805-197902
W/STEREO,LIGHT BROWN,BROWN,TRIM4#
sub64330-12130
main64330-12130-11i197701-197902
W/STEREO,BLACK,BLACK,TRIM2#
sub64330-12130
main64330-12140i197408-197508
sub64330-12150
main64330-12140-01i197508-197701
BLACK,BLACK,TRIM0#,2#
sub64330-12140
sub64330-12150
main64330-12140-04i197805-198107
BLUE,BLUE,TRIM8#
sub64330-12140
sub64330-12150
main64330-12140-06i197508-197701
BROWN,BROWN,TRIM0#,4#
sub64330-12140
sub64330-12150
main64330-12140-11i197701-198107
BLACK,BLACK,TRIM2#
sub64330-12140
sub64330-12150
main64330-12140-16i197805-198107
LIGHT BROWN,BROWN,TRIM4#
sub64330-12140
sub64330-12150
main64330-12150i197408-197508
W/STEREO
main64330-12150-01i197508-197701
W/STEREO,BLACK,BLACK,TRIM0#,2#
sub64330-12150
main64330-12150-04i197805-198107
W/STEREO,BLUE,BLUE,TRIM8#
sub64330-12150
main64330-12150-06i197508-197701
W/STEREO,BROWN,BROWN,TRIM0#,4#
sub64330-12150
main64330-12150-11i197701-198107
W/STEREO,BLACK,BLACK,TRIM2#
sub64330-12150
main64330-12150-16i197805-198107
W/STEREO,LIGHT BROWN,BROWN,TRIM4#
sub64330-12150
main64330-12180-01i197604-197701
BLACK,BLACK,TRIM0#,2#
sub64330-12180
main64330-12180-06i197604-197701
BROWN,BROWN,TRIM0#,4#
sub64330-12180
main64330-12180-11i197701-198107
BLACK,BLACK,TRIM2#
sub64330-12180
main64330-12190-01i197604-197701
BLACK,BLACK,TRIM0#,2#
sub64330-12190
main64330-12190-06i197604-197701
BROWN,BROWN,TRIM0#,4#
sub64330-12190
main64330-12190-11i197701-198107
BLACK,BLACK,TRIM2#
sub64330-12190
64371RETAINER, PACKAGE TRAY TRIM
main64371-12010-11i197408-197701
BLACK,BLACK
sub64371-12010
sub90467-09019
main64371-12010-21i197701-198107
BLACK,BLACK,TRIM2#,4#
sub64371-12010
sub90467-09019
main64371-12010-34i197805-198107
BLUE,BLUE,TRIM8#
sub64371-12010
sub90467-09019
main64371-12010-56i197805-198107
LIGHT BROWN,BROWN,TRIM4#
sub64371-12010
sub90467-09019
64372CAP, PACKAGE TRAY TRIM
main90467-14077i197410-197701
BLACK
main90467-14077-01i197701-198107
BLACK,BLACK,TRIM2#,4#
sub90467-14077
main90467-14077-04i197805-198107
BLUE,BLUE,TRIM8#
sub90467-14077
main90467-14077-06i197805-198107
LIGHT BROWN,BROWN,TRIM4#
sub90467-14077
main90950-01154-11i197408-197410
BLACK,BLACK
sub90950-01154
64383GRILLE, SPEAKER, REAR
main64383-22011i197408-197805
main64383-22011-01i197805-198107
BLACK,BLACK,TRIM2#
sub64383-22011
main64383-22011-04i197805-198107
BLUE,BLUE,TRIM8#
sub64383-22011
main64383-22011-05i197805-198107
BEIGE,BEIGE,TRIM4#
sub64383-22011
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64701-12020i197701-198107
main64711-12040i197408-197701
PLANT M11,M12
sub64701-12020
main64711-12050i197408-197701
PLANT A31,A32
sub64701-12020
9018304046
main90183-04046

7 parts on this diagram · 1 diagram in section
