RADIATOR GRILLE

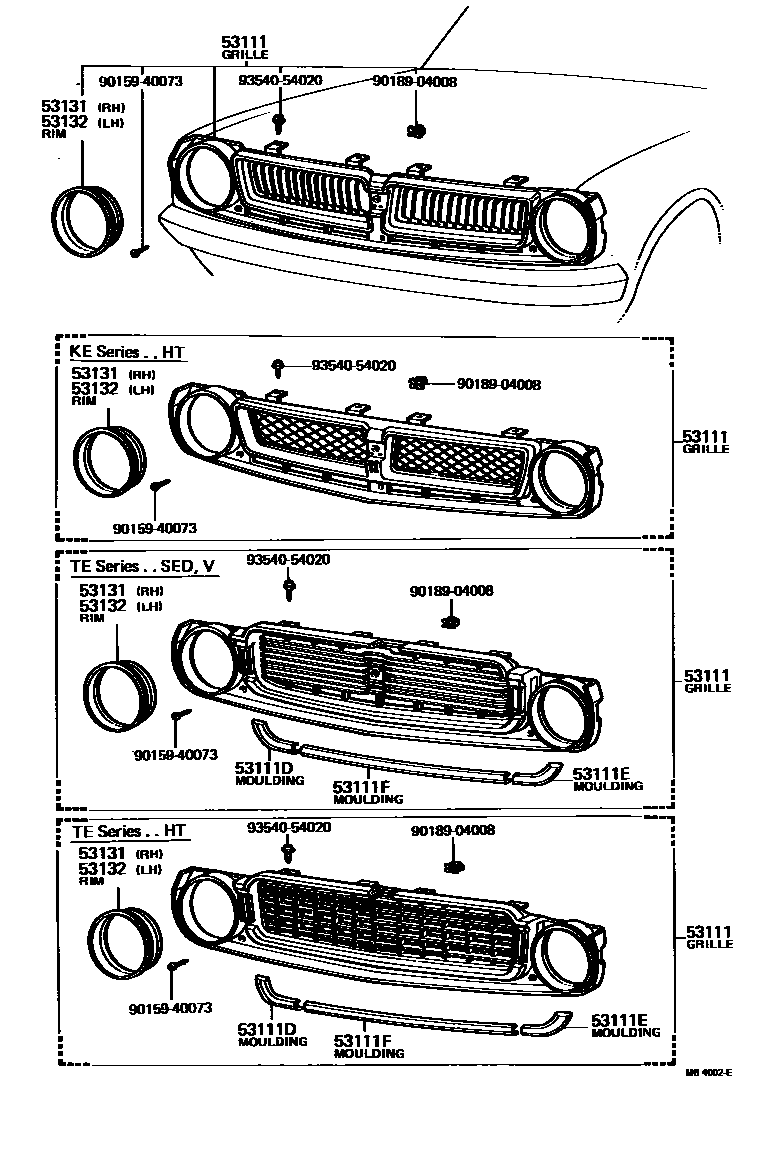

Parts diagram

53111GRILLE, RADIATOR

main53100-12010i197907-198003

main53100-12060i197808-197907

main53100-19015i197805-197808

main53100-19025i197805-197902

main53101-19265i197503-197504

main53101-19266i197504-197701

main53101-19275i197503-197504

main53101-19276i197504-197701

main53101-19285i197408-197503

main53101-19286i197503-197701

main53101-19295i197408-197503

main53101-19305i197408-197503

main53101-19306i197503-197701

main53101-19325i197503-197701

main53101-19326i197701-197805

main53101-19375i197603-197805

main53101-19385i197805-197808

main53101-19395i197808-197904

53111DMOULDING, RADIATOR GRILLE, RH

main75513-12040i197603-197805

main75513-12041i197805-197808

main75515-12040i197904-198107

main75516-12010i197503-197701

53111EMOULDING, RADIATOR GRILLE, LH

main75514-12030i197603-197805

main75514-12031i197805-197808

main75516-12030i197701-197808

main75517-12050i197503-197701

53111FMOULDING, RADIATOR GRILLE, CENTER

main75515-12010i197503-197701

main75517-12070i197904-198107

53131RIM, HEADLAMP, RH

main53131-12070i197808-197904

main53131-12220i197707-197805

WEST GERMANY SPEC

main53131-12230i197805-197908

WEST GERMANY SPEC

53132RIM, HEADLAMP, LH

main53131-12070i197808-197904

main53131-12220i197707-197805

WEST GERMANY SPEC

main53131-12230i197904-198004

9015940073

main90159-40073

9018904008

main90189-04008

9354054020

main93540-54020

9 parts on this diagram · 5 diagrams in section
